Generating dynamic web pages using XSL and XML

Posted on 1st February 2003 by Tony Marston

Amended on 3rd June 2006

1. Introduction

In an earlier article, 'Using XSL and XML to generate dynamic web pages from UNIFACE', I demonstrated how it is possible to generate web pages using XSL to transform XML documents into HTML for output to the web. This replaces the UNIFACE-specific method of web page generation with a standard method that is supported by the World Wide Web Consortium and which gained popularity with the Apache Cocoon Project. In this follow-up article I will show you samples of web pages and explain the XSL stylesheets that I used to transform the XML data.

I have put together a set of PHP scripts which you can access here on my website which will show these techniques in action. These are described in A Sample PHP Application. The complete source code can be downloaded from here so you can see how it is achieved.

Note: An updated version of this document called Reusable XSL Stylesheets and Templates shows how to avoid the need to have customised versions of each XSL stylesheet which contain hard-coded field names. By passing the list of fields to be displayed within the XML data it is possible to use the same XSL stylesheet for many different screens.

2. A typical family of forms

This consists of an initial parent form and a series of child forms, as shown in Figure 1. The parent form may be accessed through a menu mechanism, but a child form can only be accessed through a parent form. This is because some form of context may need to be exchanged between the parent and the child.

Figure 1 - a typical family of forms

xml-and-xsl-001 (3K)

The LIST form will allow the user to browse through occurrences on a database table. The user can then select one or more of the displayed occurrences before activating one of the child forms.
The INSERT form will allow the user to insert a new occurrence on the database table.
The UPDATE form will allow the user to modify an occurrence selected from the LIST form.
The DELETE form will allow the user to delete an occurrence selected from the LIST form.
The ENQUIRE form will allow the user to enquire in more detail on an occurrence selected from the LIST form.
The SEARCH form will allow the user to specify new search criteria for the LIST form.

This is a typical arrangement of simple, single-function components that I have been using in client/server systems for many years, and which just happens to be the recommended approach when designing components for the web.

The following are a series of screen shots from my demonstration system. I built these using a combination of PHP and MySQL running under the Apache web server (refer to A Sample PHP Application for details), but the techniques can be employed in any development language that can create XML files and has access to an XSL Transform engine.

You may notice that these screens are devoid of any fancy graphics - this is entirely deliberate as I am concentrating on the functionality, not the cosmetics. Fancy gimmicks, gizmos and doo-dads can be added in by anyone competent in HTML simply by modifying the HTML code in the XSL stylesheet, or by modifying the CSS file. Any customisation of the Presentation layer can therefore be carried out without affecting any component in the Business layer.

2.1. The LIST form

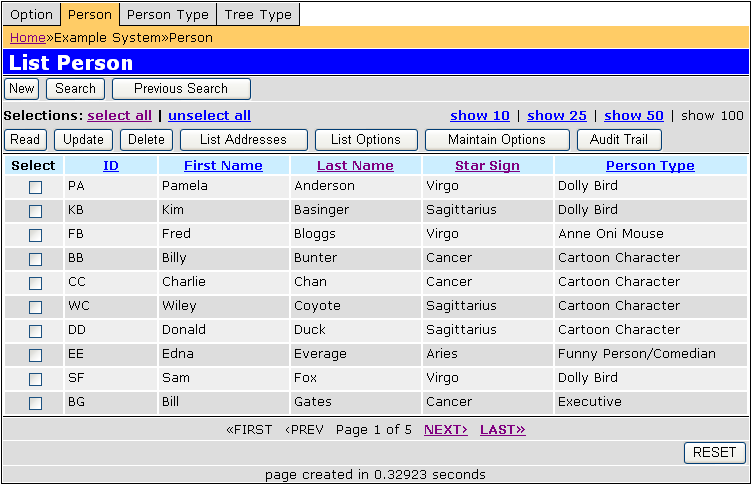

Figure 2 - List occurrences from the PERSON table

Figure 2 shows a form that lists occurrences from the PERSON table. As there may be more occurrences that can fit comfortably into the screen they are divided into 'pages' where each page will contain a maximum number of occurrences. Hyperlinks at the bottom the screen will allow the user to jump to different pages. There is also an area for standard 'action' buttons and an area for optional 'navigation' buttons. Each of these areas is explained in more detail in Figure 3.

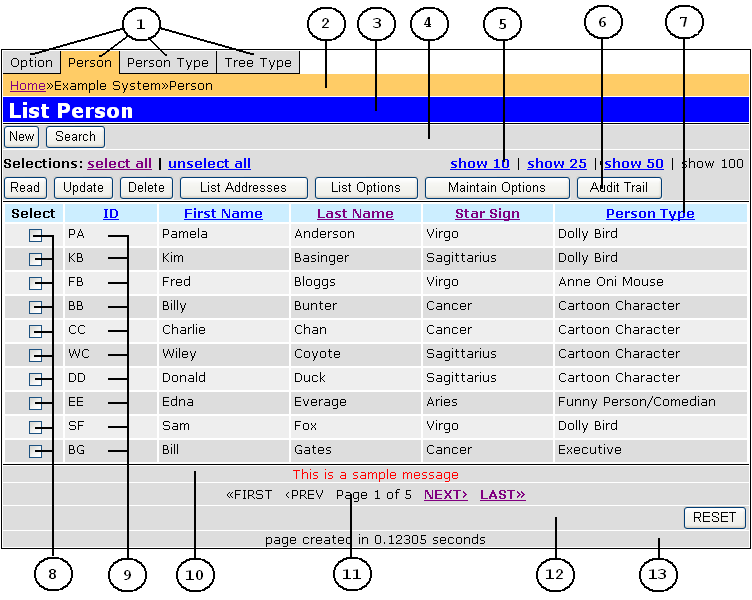

Figure 3 - the different areas within the LIST form

Figure 3 identifies and explains each of the different areas within the LIST screen shown in Figure 2.

Area 1 is the first line of the menu bar and contains a hyperlink for each option within the current menu. If an option which is another menu is selected then the entire contents of this line will change. If a non-menu option is selected then all the areas below the menu bar will change to reflect the requirements of that option, and the background colour of the menu tab will change to the same colour as the second line of the menu bar (area 2).
Area 2 is the second line of the menu bar and contains hyperlinks which trace the route from the home page to the current page. This area is sometimes known as 'breadcrumbs' as it allows the user to trace his/her way back home if he/she gets lost. Options which are currently active will not be presented as hyperlinks.
Area 3 contains the form title. This is not hard-coded into the XSL stylesheet, it is passed as a parameter to the XSL Transform process.
Area 4 is the first line of the navigation bar and contains buttons which will activate other pages (such as NEW or SEARCH) without the need for any rows in the current display to be selected (refer to area 8). The NEW button will bring up a blank detail screen which will allow the user to create a new database occurrence. The SEARCH button will bring up a blank screen which will the allow the user to define selection criteria before a fresh set of details are retrieved from the database.
Area 5 is the second line of the navigation bar and contains two sections:
- On the left it has hyperlinks named 'select all' and 'unselect all' which act upon all the checkboxes in area 8.
- On the right it has hyperlinks named 'show nn' which will alter the number of rows within each page (area 9). This will also have an effect on the contents of the pagination area (area 11).
Area 6 is the third line of the navigation bar and contains buttons that will activate a different child form. These buttons require that one or more occurrences in area 9 be pre-selected by setting the associated checkbox in area 8. This selection process enables the primary key(s) of the selected occurrence(s) to be passed down to the child form so that they know which occurrences to process. Upon returning from a child function the parent function will re-retrieve its data according to the current settings (page number, sort sequence, etc). This is so that any changes made by the child function can be included in the screen display.
Area 7 contains the column headings for the data table. Apart from 'SELECT' the column headings are defined as hyperlinks which will allow the page to be regenerated and sorted on that column. The sort sequence will alternate between ascending and descending, as indicated by an 'up' or 'down' arrow next to the selected column. Any sort options can be reset by pressing the appropriate button in the action bar (area 12).
Area 8 contains a separate checkbox for each occurrence retrieved from the database (area 9). This is used to select an occurrence for subsequent processing by a child form which can be activated by pressing one of the buttons in the navigation bar (area 6).
Area 9 contains the body of the data table. Each horizontal line/row will show data from a different database occurrence, with the odd and even numbered rows shown in different colours. The SELECT column allows a particular row to be chosen for further processing.
Area 10 is an optional area that will show any messages that have been generated.
Area 11 is for pagination. It shows the current page number and the total number of pages. Depending on the current page number the FIRST, PREV, NEXT and LAST words will become hyperlinks, allowing the user to jump to the designated page number.
Area 12 contains action buttons which are usually constant for each type of screen. CANCEL or CLOSE will return to the previous screen while SUBMIT will post any changed data to the web server so that it may update the database. The RESET button will cancel any selection and sorting criteria, then rebuild the screen from page 1. Certain screens may also contain buttons to COPY or PASTE.
Area 13 is appended to the action bar and shows how long it took for the request to be processed. The value is calculated by the business layer component and passed as a parameter to the XSL Transform process.

Each of these areas is processed by a different set of stylesheet instructions, as will be explained later.

2.2. The INSERT form

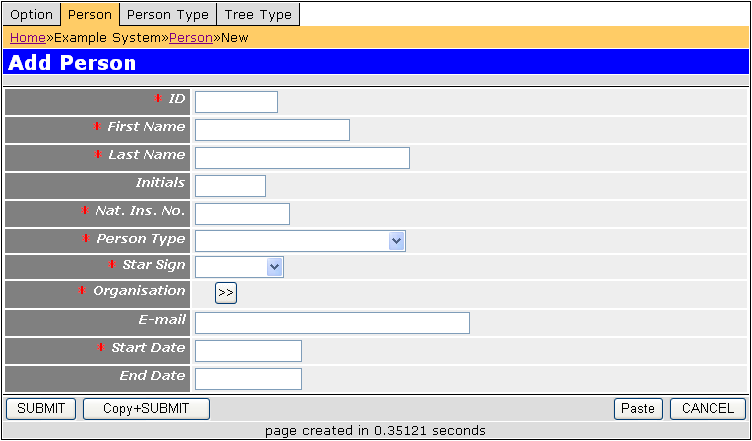

Figure 4 - the INSERT form

The INSERT form allows the user to enter the details for a new occurrence. Required fields are indicated with an asterisk in front of the field label. The SUBMIT button will cause the data to be added to the database (provided that all validation rules are satisfied), then it will return to the previous screen. The COPY+SUBMIT button will copy the current data into memory so that it is available for the PASTE button. The CANCEL button will ignore any entered data and return to the previous screen. Validation errors are dealt with as shown in Figure 5.

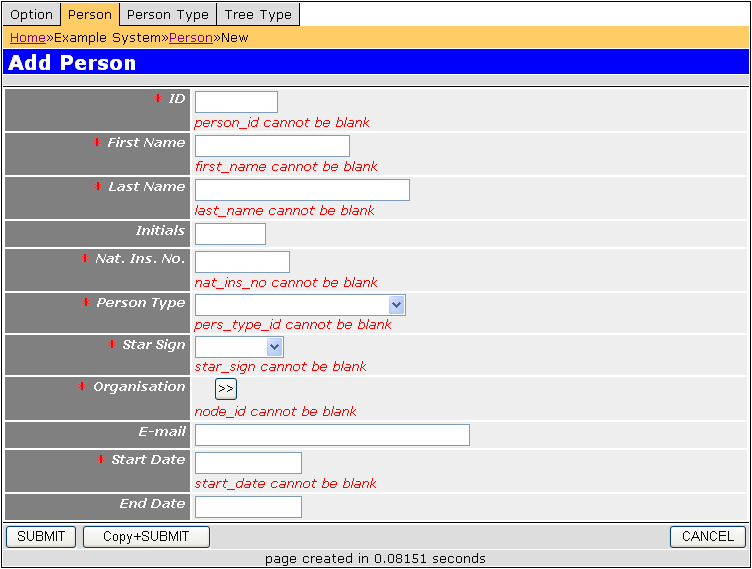

Figure 5 - the INSERT form with validation errors

Any error message for a particular field will be displayed underneath that field's input area. If an error cannot be associated with a particular field then it will be displayed in the message area at the bottom of the screen (area 10 in Figure 3).

2.3. The UPDATE form

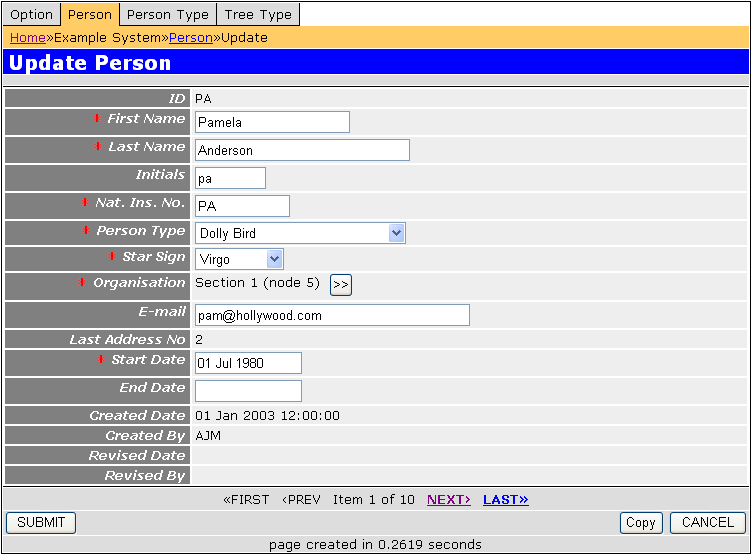

Figure 6 - the UPDATE form

This will display the current values for the occurrence selected in the previous screen, then allow the user to make changes. Validation errors will be dealt with as shown in Figure 5. The COPY button will allow the current data to be saved in memory so that it can be included into an INSERT screen with the PASTE button.

2.4. The DELETE form

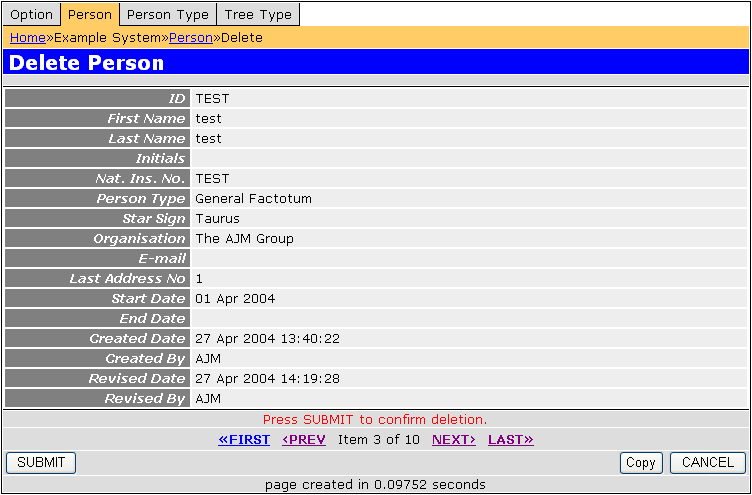

Figure 7 - the DELETE form

This will display the selected occurrence and allow the user to either confirm or cancel the deletion. If the current occurrence cannot be deleted an appropriate message will be displayed and the SUBMIT button will not be shown. The COPY button will allow the current data to be saved in memory so that it can be included into an INSERT screen with the PASTE button.

2.5. The ENQUIRE form

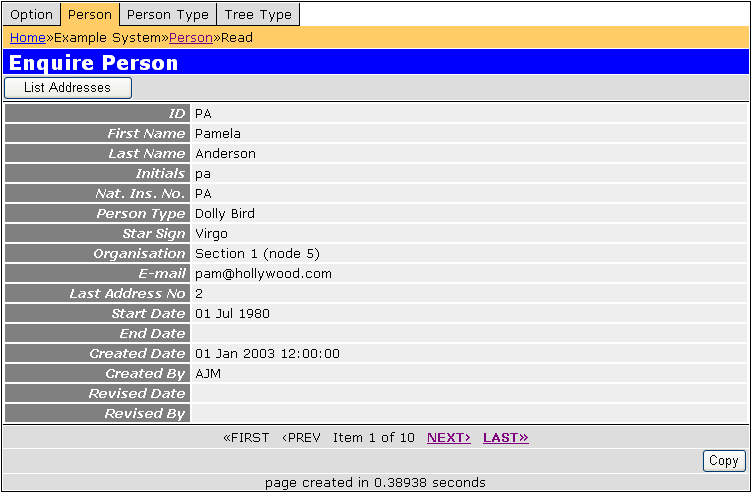

Figure 8 - the ENQUIRE form

This will display the current values for the occurrence selected in the previous screen. The COPY button will allow the current data to be saved in memory so that it can be included into an INSERT screen with the PASTE button.

2.6. The SEARCH form

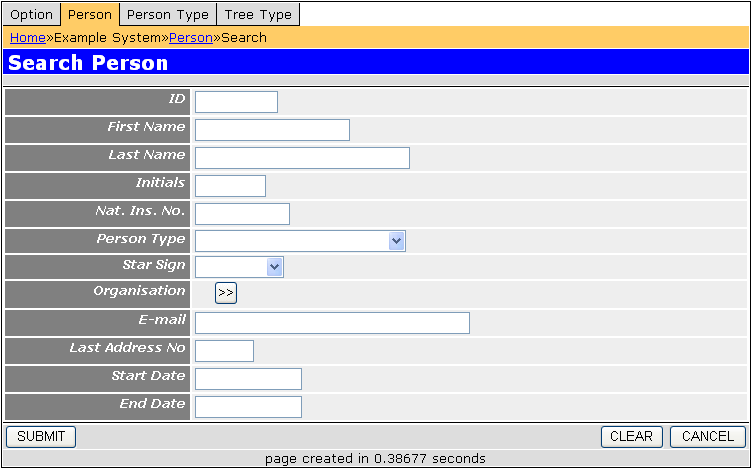

Figure 9 - the SEARCH form

This will allow the user to specify different selection criteria to be used by the LIST screen. By pressing the SUBMIT button the new criteria will be used to rebuild the contents of the list screen, otherwise it will be rebuilt using the previous search criteria. If any search criteria have been entered previously then they will be shown, but can be removed using the CLEAR button.

3. The XML/XSL files for the LIST form

The transformation process requires an XML file to provide the data and an XSL file to define the transformation rules.

3.1. The XML data file

This is an extract of the XML file that was used to create the HTML document shown in Figure 2.

<?xml version="1.0"?>
<xample>
  <person> (1)
    <person_id>AJM</person_id>
    <pers_type_id>BORING</pers_type_id>
    <node_id>10</node_id>
    <nat_ins_no>XX123456Y</nat_ins_no>
    <first_name>Tony</first_name>
    <last_name>Marston</last_name>
    <initials></initials>
    <star_sign>Capricorn</star_sign>
    <email_addr>tony@tonymarston.net</email_addr>
    <start_date>02 Jan 2001</start_date>
    <end_date></end_date>
  </person>
  <person> (1)
    ...
  </person>

  <navbar> (2)
    <button id="task#person(add)" context_preselect="N">New</button>
    <button id="task#person(enq)" context_preselect="Y">Read</button>
    <button id="task#person(upd)" context_preselect="Y">Update</button>
    <button id="task#person(del)" context_preselect="Y">Delete</button>
    <button id="task#person_addr(list)" context_preselect="Y">List Addresses</button>
    <button id="task#option(list)a" context_preselect="Y">List Options</button>
    <button id="task#pers_opt_xref(link)a" context_preselect="Y">Maintain Options</button>
    <button id="task#person(search)" context_preselect="N">Search</button>
    <button id="task#audit_dtl(list)2" context_preselect="Y">Audit Trail</button>
  </navbar>

  <actbar> (3)
    <button id="reset">RESET</button>
    <button id="close">CLOSE</button>
  </actbar>

  <message> (4)
    <line>This is a sample message.</line>
  </message>

  <menubar> (5)
    <button id="option(list)">Option</button>
    <button id="person(list)" active="y">Person</button>
    <button id="pers_type(list)">Person Type</button>
    <button id="tree_type(list)">Tree Type</button>
    <stack id="home">Home</stack>
    <stack id="menu02" active="y">Example System</stack>
    <stack id="person(list)">Person</stack>
  </menubar>

</xample>

Here is the description of the numbered items:

Item (1) is the data for each occurrence that was retrieved from the database with the current selection criteria. These will appear in area 9 of figure 3.
Item (2) identifies the navigation buttons that will be included in the web page. The element value for each button entry identifies the button text, while the ID attribute identifies the value that will be passed in the POST array when the button is pressed. The context_preselect attribute identifies whether this button should be placed in the first or third line of the navigation bar (see areas 4 and 6 in figure 3).
Item (3) identifies the entries that will appear in the action bar (see area 12 in figure 3).
Item (4) identifies any messages that need to be displayed in the message area (see area 10 in figure 3). There can be any number of message lines.
Item (5) identifies the entries that will appear in the menu bar. The button entries will appear in area 1 of figure 3 and the stack entries will appear in area 2 of figure 3.

3.2. The XSL stylesheet for a LIST form

This is an extract of the XSL file that was used to transform the previous XML data into the HTML document shown in Figure 2.

NOTE: This version has been superseded by a more reusable version which is documented in Reusable XSL Stylesheets and Templates. Instead of having a separate stylesheet for each database table where the field names and field labels have to be hard-coded I now use a more generic stylesheet and specify the field names and label names within the XML data.

<?xml version='1.0'?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">

<xsl:output method='html'/>

<!-- param values may be changed during the XSL Transformation --> (1)
<xsl:param name="title">List PERSON</xsl:param>
<xsl:param name="script">person_list.php</xsl:param>
<xsl:param name="orderby">person_id</xsl:param>
<xsl:param name="order">asc</xsl:param>
<xsl:param name="numrows">0</xsl:param>
<xsl:param name="curpage">1</xsl:param>
<xsl:param name="lastpage">2</xsl:param>
<xsl:param name="script_time">0.2744</xsl:param>

<!-- include common templates --> (2)
<xsl:include href="std.actionbar.xsl"/>
<xsl:include href="std.column_hdg.xsl"/>
<xsl:include href="std.head.xsl"/>
<xsl:include href="std.message.xsl"/>
<xsl:include href="std.navbar.xsl"/>
<xsl:include href="std.pagination.xsl"/>
<xsl:include href="std.selectbox.xsl"/>

<xsl:template match="/"> <!-- standard match to include all child elements --> (3)

  <html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">
    <xsl:call-template name="head" /> (4)
  <body>

  <form method="post" action="{$script}"> (5)

    <xsl:call-template name="navbar" /> (6)

    <div id="content">

      <h1><xsl:value-of select="$title"/></h1> (7)

      <!-- this is the actual data -->
      <table class="datatable">

        <thead>
          <tr>
            <!-- set up the column headings -->
            <th>Select</th>
            <th>
              <xsl:call-template name="column_hdg"> (8)
                <xsl:with-param name="item" select="'person_id'"/>
                <xsl:with-param name="label" select="'ID'"/>
              </xsl:call-template>
            </th>
            <th>
              <xsl:call-template name="column_hdg"> (8)
                <xsl:with-param name="item" select="'first_name'"/>
                <xsl:with-param name="label" select="'First Name'"/>
              </xsl:call-template>
            </th>
            <th>
              <xsl:call-template name="column_hdg"> (8)
                <xsl:with-param name="item" select="'last_name'"/>
                <xsl:with-param name="label" select="'Last Name'"/>
              </xsl:call-template>
            </th>
            <th>
              <xsl:call-template name="column_hdg"> (8)
                <xsl:with-param name="item" select="'star_sign'"/>
                <xsl:with-param name="label" select="'Star Sign'"/>
              </xsl:call-template>
            </th>

          </tr>
        </thead>

        <tbody>
          <!-- add a table row for each record in the XML file -->
          <xsl:apply-templates select="//person" /> (9)
        </tbody>

      </table>

      <!-- look for optional messages -->
      <xsl:call-template name="message"/> (10)

      <!-- insert the page navigation links -->
      <xsl:call-template name="pagination" /> 11)

      <!-- create standard action buttons -->
      <xsl:call-template name="actbar"/> (12)

    </div>
  </form>
  </body>
  </html>

</xsl:template>

<xsl:template match="person"> (13)

  <!-- set the row class to 'odd' or 'even' to determine the colour -->
  <tr>
    <xsl:attribute name="class"> (14)
      <xsl:choose>
        <xsl:when test="position()mod 2">odd</xsl:when>
        <xsl:otherwise>even</xsl:otherwise>
      </xsl:choose>
    </xsl:attribute>

    <td>
      <!-- this cell contains the checkbox to make selections -->
      <xsl:call-template name="selectbox"/> (15)
    </td>

    <!-- these table cells contain the actual data -->
    <td><xsl:value-of select="person_id"/></td> (16)
    <td><xsl:value-of select="first_name"/></td> (16)
    <td><xsl:value-of select="last_name"/></td> (16)
    <td><xsl:value-of select="star_sign"/></td> (16)

  </tr>

</xsl:template>

</xsl:stylesheet>

Here is the description of the numbered items:

Item (1) identifies the parameters that can be passed to the transformation process when the XSLT processor is activated. Each parameter has a unique name and an optional default value.
Item (2) identifies stylesheet templates which are defined in separate files but which are to be made available during this transformation. In this way common code can be maintained in one place but shared by many components.
Item (3) starts the transformation process on the root node (signified by "/"). This is why each XML document must contain one and only one root node. This code block ends with the corresponding </xsl:template> line.
Item (4) processes the contents of the template named head which is contained in std.head.xsl.
Item (5) sets the ACTION attribute of the POST method to the value of the $script parameter identified in item (1).
Item (6) processes the contents of the template named navbar which is contained in std.navbar.xsl.
Item (7) includes the value of the $title parameter in the caption for the main data table.
Item (8) processes the contents of the template named column_hdg which is contained in std.column_hdg.xsl. Note that two parameters are also passed.
Item (9) will call any unnamed templates for each occurrence of the person node which exists one level below the root node within the XML data file. Specifically this will call the template at item (13).
Item (10) processes the contents of the template named message which is contained in std.message.xsl.
Item (11) processes the contents of the template named pagination which is contained in std.pagination.xsl.
Item (12) processes the contents of the template named actbar which is contained in std.actionbar.xsl.
Item (13) identifies the template that is executed at item (9) for each occurrence of the person node. This code block includes items (14), (15) and (16) and ends with the corresponding </xsl:template> line.
Item (14) determines whether the current row number is odd or even, then sets the CLASS attribute of the TR tag accordingly. The properties of each CLASS are defined in a separate CSS file and identify which colour is to be used as the background for each row.
Item (15) processes the contents of the template named selectbox which is contained in std.selectbox.xsl. This is placed in the first cell of each row.
Item (16) inserts the value from a particular child node within the current person node into a separate cell within the current row.

4. The XML/XSL files for the DETAIL forms

The transformation process requires an XML file to provide the data and an XSL file to define the transformation rules.

4.1. The XML data file

This is an extract of the XML file that was used to create the HTML documents shown in Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9.

<?xml version="1.0"?>
<xample>
  <person> (1)
    <person_id size="8" pkey="y">AJM</person_id>
    <pers_type_id size="6"
                  control="dropdown"
                  optionlist="pers_type_id">GENFAC</pers_type_id>
    <node_id size="4"
             control="popup"
             foreignfield="node_desc"
             popupname="tran#tree_structure_popup.php">10</node_id>
    <nat_ins_no size="10">XX123456Y</nat_ins_no>
    <first_name size="20">Tony</first_name>
    <last_name size="30">Marston</last_name>
    <initials size="6"></initials>
    <star_sign control="dropdown"
               optionlist="star_sign">Capricorn</star_sign>
    <email_addr size="50"
                error="this is an example of an error message">
                tony@tonymarston.net</email_addr>
    <start_date size="12">02 Jan 2001</start_date>
    <end_date size="12"></end_date>
    <node_desc noedit="y">Section 6 (node 10)</node_desc>
  </person>
  <lookup>
    <star_sign> (2)
      <option id="0"> </option>
      <option id="1">Aries</option>
      <option id="2">Aquarius</option>
      <option id="3">Cancer</option>
      <option id="4">Capricorn</option>
      <option id="5">Gemini</option>
      <option id="6">Leo</option>
      <option id="7">Libra</option>
      <option id="8">Pisces</option>
      <option id="9">Sagittarius</option>
      <option id="10">Scorpio</option>
      <option id="11">Taurus</option>
      <option id="12">Virgo</option>
    </star_sign>
    <pers_type_id> (3)
      <option id=" "> </option>
      <option id="ACTOR">Actor/Artiste</option>
      <option id="ANON">Anne Oni Mouse</option>
      <option id="BORING">Boring Person</option>
      <option id="CARTOO">Cartoon Character</option>
      <option id="DOLLY">Dolly Bird</option>
      <option id="EIGHT">Pieces of Eight</option>
      <option id="EXEC">Executive</option>
      <option id="FILM">Film Star</option>
      <option id="FUNNY">Funny Person/Comedian</option>
      <option id="GENFAC">General Factotum</option>
      <option id="IGTWIT">Ignorant Twit</option>
      <option id="JAMMY">Jammy Beggar</option>
      <option id="KLEPTO">Kleptomaniac</option>
    </pers_type_id>
  </lookup>
  <actbar> (4)
    <button id="submit">SUBMIT</button>
    <button id="cancel">CANCEL</button>
  </actbar>
  <message> (5)
    <line>This is another message</line>
  </message>
  <scrolling> (6)
    <scroll id="person" curitem="1" lastitem="2" />
  </scrolling>
</xample>

Here is the description of the numbered items:

Item (1) is the data for the occurrence selected for this screen. Each data item may contain any of the following attributes:
- PKEY - to identify the primary key.
- SIZE - to identify the field size on the screen.
- ERROR - to identify any error message for the field.
- NOEDIT - to force the field to be read-only.
- NODISPLAY - to hide the field from the user.
- CONTROL - identifies the HTML control to be used to display this value (default is TEXT).
- OPTIONLIST - identifies the option list for dropdowns and radio groups.
- FOREIGNFIELD - identifies the field from the foreign entity which is to be displayed instead of the foreign key.
- POPUPNAME - identifies the form to be run when the popup button is pressed.
Item (2) contains the list of options to be used in the STAR_SIGN picklist. Each option has an internal identity and an external value.
Item (3) contains the list of options to be used in the PERS_TYPE_ID picklist. Each option has an internal identity and an external value.
Item (4) identifies the action buttons that will be included in the web page. The element value for each button entry identifies the button text, while the ID="..." attribute identifies the value that will be returned to the web server when the button is pressed.
Item (5) identifies any messages that need to be displayed in the message area. There can be any number of message lines.
Item (6) identifies the scrolling values for the 'person' object. It is possible to have scrolling values for more than one object in the same XML file.

4.2. The XSL stylesheet for a DETAIL form

This is an extract of the XSL file that was used to transform the previous XML data into the HTML documents shown in Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9.

<?xml version='1.0'?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">

<xsl:output method='html'/>

<!-- param values may be changed during the XSL Transformation --> (1)
<xsl:param name="title">document title</xsl:param>
<xsl:param name="script">script_name</xsl:param>
<xsl:param name="mode">insert</xsl:param>
<xsl:param name="script_time">0.1234</xsl:param>

<!-- include common templates --> (2)
<xsl:include href="std.actionbar.xsl"/>
<xsl:include href="std.data_field.xsl"/>
<xsl:include href="std.head.xsl"/>
<xsl:include href="std.message.xsl"/>
<xsl:include href="std.scrolling.xsl"/>

<xsl:template match="/"> (3)

  <html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">
    <xsl:call-template name="head" /> (4)
  <body>

  <form method="post" action="{$script}"> (5)

    <div id="detail">

      <h1><xsl:value-of select="$title"/></h1> (6)

      <!-- select only the first record in the XML document -->
      <xsl:apply-templates select="//person[1]" /> (7)

      <!-- look for optional messages -->
      <xsl:call-template name="message"/> (8)

      <!-- insert the scrolling links for main table -->
      <xsl:call-template name="scrolling" > (9)
        <xsl:with-param name="object" select="'person'"/>
      </xsl:call-template>

      <!-- create standard action buttons -->
      <xsl:call-template name="actbar"/> (10)

    </div>
  </form>
  </body>
  </html>

</xsl:template>

<xsl:template match="//person"> (11)

  <!-- table contains a row for each database field -->
  <table class="datatable">
    <colgroup width="100"/>
    <colgroup width="300"/>

    <tr class="detail">
      <td class="label">ID</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="person_id"/>
        </xsl:call-template>
      </td>
    </tr>

    <tr class="detail">
      <td class="label">First Name</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="first_name"/>
        </xsl:call-template>
      </td>
    </tr>

    <tr class="detail">
      <td class="label">Last Name</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="last_name"/>
        </xsl:call-template>
      </td>
    </tr>

    <tr class="detail">
      <td class="label">Initials</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="initials"/>
        </xsl:call-template>
      </td>
    </tr>

    <tr class="detail">
      <td class="label">Nat. Ins. No.</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="nat_ins_no"/>
        </xsl:call-template>
      </td>
    </tr>

    <tr class="detail">
      <td class="label">Person Type</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="pers_type_id"/>
        </xsl:call-template>
      </td>
    </tr>

    <tr class="detail">
      <td class="label">Star Sign</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="star_sign"/>
        </xsl:call-template>
      </td>
    </tr>

    <tr class="detail">
      <td class="label">E-Mail</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="email_addr"/>
        </xsl:call-template>
      </td>
    </tr>

    <tr class="detail">
      <td class="label">Start Date</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="start_date"/>
        </xsl:call-template>
      </td>
    </tr>

    <tr class="detail">
      <td class="label">End Date</td> (12)
      <td>
        <xsl:call-template name="datafield"> (13)
          <xsl:with-param name="item" select="end_date"/>
        </xsl:call-template>
      </td>
    </tr>
  </table>

</xsl:template>

</xsl:stylesheet>

Here is the description of the numbered items:

Item (1) identifies the parameters that can be passed to the transformation process when the XSLT processor is activated. Each parameter has a unique name and an optional default value.
Item (2) identifies stylesheet templates which are defined in separate files but which are to be made available during this transformation. In this way common code can be maintained in one place but shared by many components.
Item (3) starts the transformation process on the root node (signified by "/"). This is why each XML document must contain one and only one root node. This code block ends with the corresponding </xsl:template> line.
Item (4) processes the contents of the template named head which is contained in std.head.xsl.
Item (5) sets the ACTION attribute of the POST method to the value of the $script parameter identified in item (1).
Item (6) includes the value of the $title parameter in the caption for the main data table.
Item (7) will call any unnamed templates for the first occurrence of the person node which exists one level below the root node within the XML data file. Specifically this will call the template at item (11).
Item (8) processes the contents of the template named message which is contained in std.message.xsl.
Item (9) processes the contents of the template named scrolling which is contained in std.scrolling.xsl.
Item (10) processes the contents of the template named actbar which is contained in std.actionbar.xsl.
Item (11) identifies the template that is executed at item (7) for the person node. This code block includes items (12) and (13) and ends with the corresponding </xsl:template> line.
Item (12) inserts the label text for the current row.
Item (13) processes the contents of the template named datafield which is contained in std.data_field.xsl. A single parameter gives the name of the data item to be displayed. Notice that I am not specifying in this stylesheet which HTML control is going to be used for each field. This is decided at runtime by the value in the control attribute within the XML file. This makes it possible for a stylesheet to use different controls for the same field in different instances.

5. The XSL 'include' files

These are stylesheet templates that are defined in their own separate files, but then 'included' into other XSL files during the transformation process. In this way changes can be made to one template and instantly inherited throughout the entire system.

5.1. std.actionbar.xsl

<?xml version='1.0'?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">

<xsl:template name="actbar"> (1)

  <table class="actionbar">
    <tr class="actionbar">
      <xsl:for-each select="//actbar/*"> (2)
        <!-- create a button for each element within actionbar -->
        <td class="actionbar">
          <input type="submit" name="{@id}" value="{node()}" /> (3)
        </td>
      </xsl:for-each>
    </tr>
  </table>

  <p class="script_time">page loaded in <xsl:value-of select="$script_time"/> seconds</p> (4)

</xsl:template>

</xsl:stylesheet>

Here is the description of the numbered items:

Item (1) identifies the name of the template.
Item (2) will loop through each node which is a child of the actbar node.
Item (3) will insert a SUBMIT button using the node's ID attribute as the internal identifier and the node's value as the button text.
Item (4) will insert text which includes the value from the $script_time parameter.

5.2. std.column_hdg.xsl

<xsl:template name="column_hdg">
  <xsl:param name="item"/> (1)
  <xsl:param name="label"/>

  <xsl:choose>
    <xsl:when test="$numrows > 0"> (2)

      <!-- create hyperlink to sort on this field --> (3)
      <a href="{$script}?orderby={$item}">
        <!-- this is the visible text for the hyperlink -->
        <xsl:value-of select="$label"/>
      </a>
      <!-- if sorted by this field insert ascending or descending image --> (4)
      <xsl:if test="$orderby=$item">
        <img src="order_{$order}.gif" alt="order_{$order}.gif" />
      </xsl:if>

    </xsl:when>

    <xsl:otherwise>
      <!-- no data to sort, so don't bother with the hyperlink --> (5)
      <xsl:value-of select="$label"/>
    </xsl:otherwise>

  </xsl:choose>

</xsl:template>

Here is the description of the numbered items:

Item (1) identifies the parameters that are passed in when the template is called.
Item (2) examines the value of the $numrows parameter (provided at runtime) to decide which action to take.
Item (3) is used when the value of $numrows is greater than zero. It will insert the $label parameter from item (1) as a hyperlink. This uses the $script parameter.
Item (4) checks if the data was sorted by this item, and will insert an image indicating either ascending or descending sequence. This uses the $order and $orderby parameters.
Item (5) is when there are no rows of data. The $label parameter is inserted as plain text instead of a hyperlink.

5.3. std.data_field.xsl

This template is actually comprised of a series of sub templates, starting with datafield. This is the main template that should be referenced in all component stylesheets as it chooses the HTML control using attribute values contained within the XML file. This allows the HTML control type to be decided at runtime instead of being hard-coded within the component stylesheet. Any other values required by individual templates for their control types must be supplied as additional attributes within the XML file.

<xsl:template name="datafield"> (1)
<xsl:param name="item"/>       <!-- the item name -->
<xsl:param name="multiple"/>   <!-- set this for more than one occurrence -->

  <!-- do nothing unless the item is present -->
  <xsl:if test="$item"> (2)

    <xsl:choose>

      <xsl:when test="$item/@nodisplay"> (3)
        <!-- 'nodisplay' attribute set, so display nothing -->
        <xsl:text> </xsl:text>
      </xsl:when>

      <xsl:when test="$item/@control='boolean'"> (4)
        <xsl:call-template name="boolean">
          <xsl:with-param name="item" select="$item"/>
          <xsl:with-param name="multiple" select="$multiple"/>
        </xsl:call-template>
      </xsl:when>

      <xsl:when test="$item/@control='dropdown'"> (4)
        <xsl:call-template name="dropdown">
          <xsl:with-param name="item" select="$item"/>
          <xsl:with-param name="multiple" select="$multiple"/>
        </xsl:call-template>
      </xsl:when>

      <xsl:when test="$item/@control='multiline'"> (4)
        <xsl:call-template name="multiline">
          <xsl:with-param name="item" select="$item"/>
          <xsl:with-param name="multiple" select="$multiple"/>
        </xsl:call-template>
      </xsl:when>

      <xsl:when test="$item/@control='popup'"> (4)
        <xsl:call-template name="popup">
          <xsl:with-param name="item" select="$item"/>
          <xsl:with-param name="multiple" select="$multiple"/>
        </xsl:call-template>
      </xsl:when>

      <xsl:when test="$item/@control='radiogroup'"> (4)
        <xsl:call-template name="radiogroup">
          <xsl:with-param name="item" select="$item"/>
          <xsl:with-param name="multiple" select="$multiple"/>
        </xsl:call-template>
      </xsl:when>

      <xsl:otherwise> <!-- this is the default control type -->
        <xsl:call-template name="textfield"> (5)
          <xsl:with-param name="item" select="$item"/>
          <xsl:with-param name="multiple" select="$multiple"/>
        </xsl:call-template>
      </xsl:otherwise>

    </xsl:choose>

  </xsl:if>

  <!-- check if field has error attribute set -->
  <xsl:if test="$item/@error"> (6)
    <br/><span class="error"><xsl:value-of select="$item/@error"/></span>
  </xsl:if>

</xsl:template>

Here is the description of the numbered items:

Item (1) is the start of the DATAFIELD template which requires at least one parameter when it is called, the name of the data item to be processed. The optional 2nd parameter is used when the HTML form contains multiple rows to be submitted back to the server as the row number needs to be built into each field name.
Item (2) checks to see if the node identified in the $item parameter actually exists in the XML input file. If it does not then there is nothing to be processed.
Item (3) checks if the nodisplay attribute is set, in which case nothing is output.
Item (4) will call the relevant template based on the contents of the control attribute. Currently the following control types are supported: boolean, dropdown, multiline, popup, radiogroup and textfield.
Item (5) will call the default textfield template if no other value for the control attribute has been supplied.
Item (6) will insert an error message for the current field if the error attribute has been set.

5.3.1 Template for BOOLEAN fields

This deals with an entry in the XML file which looks something like this:

  <tran_disabled control="boolean">N</tran_disabled>

<xsl:template name="boolean">
<xsl:param name="item"/>

  <xsl:choose>

    <xsl:when test="$mode='read' or $mode='delete' or $item/@noedit"> (1)
      <!-- field cannot be modified, so display as text -->
      <xsl:choose>
        <xsl:when test="$item='T' or $item='t' or $item='Y' or $item='y' or $item='1'"> (2)
          <xsl:text>Yes</xsl:text>
        </xsl:when>
        <xsl:otherwise>
          <xsl:text>No</xsl:text>
        </xsl:otherwise>
      </xsl:choose>
    </xsl:when>

    <xsl:when test="$mode='search'"> (3)
      <!-- create radio buttons for yes/no/undefined -->
      <input type="radio" name="{name($item)}" value="" CHECKED="CHECKED" />Undefined
      <input type="radio" name="{name($item)}" value="T" />Yes
      <input type="radio" name="{name($item)}" value="F" />No
    </xsl:when>

    <xsl:otherwise>
      <!-- field can be input or modified -->

      <!-- create radio buttons for 'yes' or 'no' -->
      <input type="radio" name="{name($item)}" value="T" > (4)
        <xsl:if test="$item='T' or $item='t' or $item='Y' or $item='y' or $item='1'">
          <xsl:attribute name="CHECKED">CHECKED</xsl:attribute>
        </xsl:if>
      </input>Yes
      <input type="radio" name="{name($item)}" value="F" > (5)
        <xsl:if test="not($item='T' or $item='t' or $item='Y' or $item='y' or $item='1')">
          <xsl:attribute name="CHECKED">CHECKED</xsl:attribute>
        </xsl:if>
      </input>No
    </xsl:otherwise>

  </xsl:choose>

</xsl:template>

Here is the description of the numbered items:

Item (1) checks the value of the $mode parameter. If it is set to 'read' or 'delete', or the noedit attribute is set, the value will be output as plain text and will not be amendable.
Item (2) tests for a range of possible values for TRUE. Anything which does not satisfy the criteria for TRUE is therefore treated as FALSE.
Item (3) checks to see if the $mode parameter is set to 'search', in which case a third option is specified giving the choices of 'Yes', 'No' and 'Undefined'. This emulates the functionality of a tri-state checkbox.
Item (4) creates a radio button for TRUE, and sets it to checked if so indicated.
Item (5) creates a radio button for FALSE, and sets it to checked if so indicated.

You may notice that I use two radio buttons instead of a single checkbox to represent a boolean item. This is because the $_POST array will only contain an entry for a checkbox when it is ON/TRUE/YES. You never see it with an OFF setting as it will be completely absent. By using radio buttons I can guarantee that the $_POST array will actually contain a value for OFF/FALSE/NO.

5.3.2 Template for DROPDOWN fields

This deals with an entry in the XML file which looks something like this:

    <pers_type_id size="6"
                  control="dropdown"
                  optionlist="pers_type_id">DOLLY</pers_type_id>
  </person>
  <lookup>
    <pers_type_id>
      <option id=" "></option>
      <option id="ACTOR">Actor/Artiste</option>
      <option id="ANON">Anne Oni Mouse</option>
      <option id="BORING">Boring Person</option>
      ....
      <option id="QP">Of Questionable Parentage</option>
    </pers_type_id>
  </lookup>

<xsl:template name="dropdown">
<xsl:param name="item"/> <!-- the lookup value -->
<xsl:param name="multiple"/> <!-- optional, causes position number to be added to item name -->

  <xsl:variable name="position" select="position()" /> (1)
  <!-- this turns the value of the optionlist attribute into a node set -->
  <xsl:variable name="optionlist" select="//*[name()=$item/@optionlist]"/> (2)

  <xsl:choose>

    <xsl:when test="$mode='read'
                    or $mode='delete'
                    or $item/@noedit
                    or ($mode='update' and $item/@pkey)">

      <!-- item is read only, so output as plain text -->

      <!-- look for an option where the id attribute equals the lookup value -->
      <xsl:variable name="option" select="$optionlist/*[@id=$item]" /> (3)
      <xsl:choose>
        <xsl:when test="$option">
          <!-- entry found, so use it -->
          <xsl:value-of select="$option"/>
        </xsl:when>
        <xsl:otherwise>
          <!-- entry not found, so default to lookup value -->
          <xsl:value-of select="$item"/>
        </xsl:otherwise>
      </xsl:choose>

    </xsl:when>

    <xsl:otherwise> <!-- field can be modified -->

      <!-- create a select statement for $item with a list of options -->
      <select> (4)

        <xsl:attribute name="name">
          <xsl:choose>

            <!-- if 'multiple' is set then include row number in item name -->
            <xsl:when test="$multiple">
              <xsl:value-of select="concat(name($item),'[',$position,']')"/> (5)
            </xsl:when>
            <xsl:otherwise>
              <xsl:value-of select="name($item)"/> (6)
            </xsl:otherwise>

          </xsl:choose>
        </xsl:attribute>

        <xsl:for-each select="$optionlist/*"> (7)
          <!-- use the 'id' attribute of the node as the 'value' attribute of 'option' -->
          <option value="{@id}" >
            <xsl:choose>
              <xsl:when test="$item=@id">
                <!-- this option has been selected -->
                <xsl:attribute name="SELECTED">SELECTED</xsl:attribute>
              </xsl:when>
              <xsl:when test="$item=node()">
                <!-- this option has been selected (variation for ENUM fields) -->
                <xsl:attribute name="SELECTED">SELECTED</xsl:attribute>
              </xsl:when>
            </xsl:choose>
            <!-- output the value of the current option -->
            <xsl:value-of select="node()"/>
          </option>
        </xsl:for-each>

      </select>

    </xsl:otherwise>

  </xsl:choose>

</xsl:template>

Here is the description of the numbered items:

Item (1) saves the row number for the current node as this will change when stepping through the list of options.
Item (2) turns the value of the optionlist attribute into a node set which can then be processed.
Item (3) selects an entry from the option list where the id attribute equals the lookup value so that it can be output as non-amendable plain text.
Item (4) starts to create the HTML select statement.
Item (5) includes the row number in the item name if the $multiple parameter is set.
Item (6) outputs the item name without any row number.
Item (7) will create an HTML option statement for every entry in the option list, and will mark the relevant value as selected when it matches the current $item value.

5.3.3 Template for MULTILINE fields

This deals with an entry in the XML file which looks something like this:

  <dialog_type_desc control="multiline"
                    cols="50"
                    rows="5">This is a lot of text</dialog_type_desc>

<xsl:template name="multiline">
<xsl:param name="item"/>

  <xsl:choose>

    <xsl:when test="$mode='search'">
      <!-- use a normal input box instead of a multiline textarea -->
      <input type="text" name="{name($item)}" value="{$item}" size="{$item/@cols}"/> (1)
    </xsl:when>

    <xsl:otherwise>

      <!-- create multiline field to allow data to be input or amended -->
      <textarea>
        <xsl:attribute name="name"><xsl:value-of select="name($item)"/></xsl:attribute> (2)
        <xsl:attribute name="rows"><xsl:value-of select="$item/@rows"/></xsl:attribute> (3)
        <xsl:attribute name="cols"><xsl:value-of select="$item/@cols"/></xsl:attribute> (4)

        <!-- under certain conditions set this field to read only -->
        <xsl:if test="$mode='read' or $mode='delete' or $item/@noedit">
          <xsl:attribute name="readonly">readonly</xsl:attribute> (5)
        </xsl:if>

        <xsl:value-of select="$item"/> (6)

      </textarea>

    </xsl:otherwise>

  </xsl:choose>

</xsl:template>

Here is the description of the numbered items:

Item (1) will set the control to an ordinary single line text box.
Item (2) outputs the item name.
Item (3) outputs the value of the rows attribute from the XML file.
Item (4) outputs the value of the cols attribute from the XML file.
Item (5) includes the readonly setting in the HTML output if appropriate.
Item (6) outputs the value of the item.

5.3.4 Template for POPUP fields

For those of you who don't know what a popup is, it is a picklist that is too large for a dropdown, so it uses a separate screen. So instead of 'dropping down' it 'pops up'.

This deals with an entry in the XML file which looks something like this:

  <node_id size="4"
           control="popup"
           foreignfield="node_desc"
           popupname="tran#tree_structure_popup.php">5</node_id>
  <node_desc noedit="y">Section 1 (node 5)</node_desc>

<xsl:template name="popup">
<xsl:param name="item"/>      <!-- key pointing to foreign table -->

  <!-- this turns the value of the foreignfield attribute into a node set -->
  <xsl:variable name="foreignfield" select="//*[name()=$item/@foreignfield]"/> (1)

  <xsl:choose>

    <xsl:when test="$mode='read' or $mode='delete' or not($item/@popupname)">
      <!-- if $mode is read/delete then field is read only (not editable) -->
      <!-- therefore popup button is not wanted -->
      <!-- also ignore if $popupname is not supplied -->
    </xsl:when>

    <xsl:otherwise>
      <div class="popup"> (2)
        <!-- create a popup button -->
        <input type="image" name="{$item/@popupname}"
                            src="images/popup.gif"
                            alt="Call popup form to obtain value" />
      </div>
    </xsl:otherwise>

  </xsl:choose>

  <!-- display the value of the field from the foreign table -->
  <xsl:value-of select="$foreignfield"/> (3)

  <!-- hold the foreign key field, but do not display it -->
  <input type="hidden" name="{name($item)}" value="{$item}" /> (4)

</xsl:template>

Here is the description of the numbered items:

Item (1) turns the value of the foreignfield attribute into a node set so that it can extract the value from his node within the XML file.
Item (2) will insert the popup button which the user presses to invoke the popup screen.
Item (3) outputs the descriptive value from the foreign table.
Item (4) outputs the foreign key as a hidden field - this will be included in the POST array, but not shown to the user.

5.3.5 Template for RADIOGROUP fields

This deals with an entry in the XML file which looks something like this:

    <access_type control="radiogroup"
                 optionlist="access_type"
                 align="">Full</access_type>
  </mnu_item_access>
  <lookup>
    <access_type>
      <option id="1">Full</option>
      <option id="2">NOEDIT</option>
      <option id="3">NODISPLAY</option>
    </access_type>
  </lookup>

<xsl:template name="radiogroup">
<xsl:param name="item"/>        <!-- the lookup value -->
<xsl:param name="multiple"/>    <!-- optional, causes position number to be added to item name -->

  <xsl:variable name="position" select="position()" /> (1)
  <!-- this turns the value of the optionlist attribute into a node set -->
  <xsl:variable name="optionlist" select="//*[name()=$item/@optionlist]"/> (2)
  <!-- alignment is 'vertical' or 'horizontal' (default is 'horizontal') -->
  <xsl:variable name="align" select="substring($item/@align,1,1)"/> (3)

  <xsl:choose>

    <xsl:when test="$mode='read'
                    or $mode='delete'
                    or $item/@noedit
                    or ($mode='update' and $item/@pkey)">

      <!-- item is read only, so output as plain text -->

      <!-- look for an option where the id attribute equals the lookup value -->
      <xsl:variable name="option" select="$optionlist/*[@id=$item]" /> (4)

      <xsl:choose>
        <xsl:when test="$option">
          <!-- entry found, so use it -->
          <xsl:value-of select="$option"/>
        </xsl:when>
        <xsl:otherwise>
          <!-- entry not found, so default to lookup value -->
          <xsl:value-of select="$item"/>
        </xsl:otherwise>
      </xsl:choose>

    </xsl:when>

    <xsl:otherwise> <!-- field can be modified -->

      <!-- create an input statement for $item with a list of options -->
      <xsl:for-each select="$optionlist/*"> (5)

        <input type="radio" >

          <xsl:attribute name="name">
            <xsl:choose>
              <!-- if 'multiple' is set then include row number in item name -->
              <xsl:when test="$multiple">
                <xsl:value-of select="concat(name($optionlist),'[',$position,']')"/> (6)
              </xsl:when>
              <xsl:otherwise>
                <xsl:value-of select="name($optionlist)"/>
              </xsl:otherwise>
            </xsl:choose>
          </xsl:attribute>

          <xsl:attribute name="value">
            <xsl:value-of select="@id" /> (7)
          </xsl:attribute>

          <!-- use the 'id' attribute of the node as the 'value' attribute -->
          <xsl:if test="$item=@id">
            <!-- this option has been selected -->
            <xsl:attribute name="CHECKED">CHECKED</xsl:attribute> (8)
          </xsl:if>

          <xsl:if test="$item=node()">
            <!-- this option has been selected (variation for ENUM fields) -->
            <xsl:attribute name="CHECKED">CHECKED</xsl:attribute>
          </xsl:if>

        </input>

        <!-- output the value of the current option -->
        <xsl:value-of select="node()"/> (9)

        <!-- insert single space as a separator -->
        <xsl:text> </xsl:text>

        <xsl:if test="$align='v'"> (10)
          <!-- alignment is vertical, so insert line break after each option -->
          <br/>
        </xsl:if>

      </xsl:for-each>

    </xsl:otherwise>

  </xsl:choose>

</xsl:template>

Here is the description of the numbered items:

Item (1) saves the row number for the current node as this will change when stepping through the list of options.
Item (2) turns the value of the optionlist attribute into a node set which can then be processed.
Item (3) extracts the first character of the align attribute.
Item (4) when the item is read only his looks for an entry in the option list where the value of the id attribute matches the value of the current item so that it can be output to the HTML document as plain text.
Item (5) starts the loop which steps through each entry in the option list so that it can be output as a radio button.
Item (6) is used when multiple occurrences of $item are in the HTML document as each one needs to contain its occurrence number in the name.
Item (7) sets the value attribute of the current radio button to the contents of the id attribute of the current entry in the option list.
Item (8) sets the checked attribute for this particular radio button in the group.
Item (9) outputs the value of the current entry in the option list.
Item (10) test for vertical alignment being specified and inserts a line break after each option. The default alignment is horizontal.

5.3.6 Template for TEXT fields

This deals with an entry in the XML file which looks something like this:

  <sec_class_id size="8" pkey="y">DEMO</sec_class_id>

<xsl:template name="textfield">
<xsl:param name="item"/>
<xsl:param name="multiple"/>

  <xsl:choose>

    <xsl:when test="$mode='read'
                    or $mode='delete'
                    or $item/@noedit
                    or ($mode='update' and $item/@pkey)">

      <!-- item is read only, so output value as plain text -->
      <xsl:value-of select="$item"/> (1)

    </xsl:when>

    <xsl:otherwise> <!-- field can be modified -->

      <input> (2)

        <xsl:choose>

          <!-- if 'multiple' indicator is set include position number -->
          <xsl:when test="$multiple">
            <xsl:attribute name="name">
              <xsl:value-of select="concat(name($item),'[',position(),']')"/> (3)
            </xsl:attribute>
          </xsl:when>
          <xsl:otherwise> <!-- use item name without any position number -->
            <xsl:attribute name="name">
              <xsl:value-of select="name($item)"/>
            </xsl:attribute>
          </xsl:otherwise>

        </xsl:choose>

        <xsl:choose>

          <!-- set type to either 'password' or 'text' -->
          <xsl:when test="$item/@password">
            <xsl:attribute name="type">password</xsl:attribute> (4)
          </xsl:when>
          <xsl:otherwise>
            <xsl:attribute name="type">text</xsl:attribute>
          </xsl:otherwise>

        </xsl:choose>

        <xsl:attribute name="value">
          <xsl:value-of select="$item"/> (5)
        </xsl:attribute>

        <xsl:attribute name="maxlength">
          <xsl:value-of select="$item/@size"/> (6)
        </xsl:attribute>

        <xsl:choose>

          <!-- if item size > 40 reduce display area to 40 characters -->
          <xsl:when test="$item/@size > 40"> (7)
            <xsl:attribute name="size">40</xsl:attribute>
          </xsl:when>
          <xsl:otherwise>
            <xsl:attribute name="size">
              <xsl:value-of select="$item/@size"/>
            </xsl:attribute>
          </xsl:otherwise>

        </xsl:choose>

      </input>

    </xsl:otherwise>

  </xsl:choose>

</xsl:template>

Here is the description of the numbered items:

Item (1) will output the value as plain text which cannot be amended.
Item (2) starts the generation of the input control, with the following code specifying the attributes one by one.
Item (3) is used when multiple occurrences of $item are in the HTML document as each one needs to contain its occurrence number in the name.
Item (4) will set the type attribute to either 'password' or 'text'.
Item (5) sets the value attribute to the contents of $item.
Item (6) sets the maxlength attribute to the item's size attribute.
Item (7) sets the size attribute to a value no greater than 40 so that it will not extend to far in the output screen.

5.4. std.head.xsl

<xsl:template name="head">

  <head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
    <title><xsl:value-of select="$title"/></title> (1)
    <link rel="stylesheet" type="text/css" href="style.css" /> (2)
  </head>

</xsl:template>

Here is the description of the numbered items:

Item (1) inserts the value of the $title parameter into the document title.
Item (2) identifies an external CSS (Cascading Style Sheet) file which contains all the formatting and style instructions for the HTML document when it is rendered by the client web browser. Changes to this single CSS file will be inherited by all documents that refer to this file

5.5. std.message.xsl

<xsl:template name="message">

  <p class="message">
    <xsl:for-each select="//message/*"> (1)
      <xsl:value-of select="node()"/><br /> (2)
    </xsl:for-each>
  </p>

</xsl:template>

Here is the description of the numbered items:

Item (1) will loop through each node which is a child of the message node.
Item (2) will insert the value of each node as a separate paragraph.

5.6. std.navbar.xsl

<xsl:template name="navbar">

  <div id="navbar">
    <xsl:for-each select="//navbar/*"> (1)

      <p class="navbar">
        <!-- create a button for each element within navbar -->
        <input type="submit" name="{@id}" value="{node()}" /> (2)
      </p>

    </xsl:for-each>
  </div>

</xsl:template>

Here is the description of the numbered items:

Item (1) will loop through each node which is a child of the navbar node.
Item (2) will insert a SUBMIT button using the node's ID attribute as the internal identifier and the node's value as the button text.

5.7. std.pagination.xsl

This uses the following parameters which are made available during the XSL transformation process:

$script - the server-side script which is dealing with this document.
$curpage - the number of the current page.
$lastpage - the number of the last page in the current selection.

<xsl:template name="pagination">

  <table class="pagination">
    <tr class="pagination">
      <xsl:choose>
        <xsl:when test="$curpage=1"> (1)
          <!-- we are on page 1, so there is no navigation backwards -->
          <td class="pagination">FIRST</td> (2)
          <td class="pagination">PREV</td>
        </xsl:when>
        <xsl:otherwise>
          <!-- insert links for first/previous page -->
          <td class="pagination">
            <a href="{$script}?page=1"><b>FIRST</b></a>
          </td> (3)
          <td class="pagination">
            <a href="{$script}?page={$curpage -1}"><b>PREV</b></a>
          </td>
        </xsl:otherwise>
      </xsl:choose>

      <!-- insert "page x of y" -->
      <td class="pagination">
        Page <xsl:value-of select="$curpage"/> of <xsl:value-of select="$lastpage"/> (4)
      </td>

      <xsl:choose>
        <xsl:when test="$curpage=$lastpage"> (5)
          <!-- we are on the last page, so there is no navigation forwards --> (6)
          <td class="pagination">NEXT</td>
          <td class="pagination">LAST</td>
        </xsl:when>
        <xsl:otherwise>
          <!-- insert links for last/next page --> (7)
          <td class="pagination">
            <a href="{$script}?page={$curpage +1}"><b>NEXT</b></a>
          </td>
          <td class="pagination">
            <a href="{$script}?page={$lastpage}"><b>LAST</b></a>
          </td>
        </xsl:otherwise>
      </xsl:choose>

    </tr>
  </table>

</xsl:template>

Here is the description of the numbered items:

Item (1) examines the value in the $curpage parameter, then performs the instructions at either (2) or (3) accordingly.
Item (2) will insert the values FIRST and PREV as plain text, not as hyperlinks.
Item (3) will create hyperlinks telling the server-side process to load a particular page number. This uses the $script and $curpage parameters.
Item (4) will insert the text Page X of Y.
Item (5) finds out if the current page is the last page, then performs the instructions at either (6) or (7) accordingly.
Item (6) will insert the values NEXT and LAST as plain text, not as hyperlinks.
Item (7) will create hyperlinks telling the server-side process to load a particular page number. This uses the $script, $curpage and $lastpage parameters.

5.8. std.scrolling.xsl

This uses data included in the XML similar to this.

<xsl:template name="scrolling">
<xsl:param name="object" />

  <table class="scrolling">
    <tr class="scrolling">

      <!-- look for the entry with the specified value in the id attribute -->
      <xsl:for-each select="//scrolling/scroll[@id=$object]"> (1)

        <!-- include only if there is more than 1 item -->
        <xsl:if test="@lastitem>1"> (2)

          <xsl:choose>
            <xsl:when test="@curitem<=1"> (3)
              <!-- we are on item 1, so there is no navigation backwards -->
              <td class="scrolling">FIRST</td> (4)
              <td class="scrolling">PREV</td>
            </xsl:when>
            <xsl:otherwise>
              <!-- insert links for first/previous item -->
              <td class="scrolling">
                <a href="{$script}?scrolling={$object}&item=1"><b>FIRST</b></a>
              </td> (5)
              <td class="scrolling">
                <a href="{$script}?scrolling={$object}&item={@curitem -1}"><b>PREV</b></a>
              </td>
            </xsl:otherwise>
          </xsl:choose>

          <!-- insert "item x of y" -->
          <td class="scrolling">
            <xsl:text>Item </xsl:text> (6)
            <xsl:value-of select="@curitem"/>
            <xsl:text> of </xsl:text>
            <xsl:value-of select="@lastitem"/>
          </td>

          <xsl:choose>
            <xsl:when test="@curitem=@lastitem"> (7)
              <!-- we are on the last item, so there is no navigation forwards -->
              <td class="scrolling">NEXT</td> (8)
              <td class="scrolling">LAST</td>
            </xsl:when>
            <xsl:otherwise>
              <!-- insert links for last/next item --> (9)
              <td class="scrolling">
                <a href="{$script}?scrolling={$object}&item={@curitem +1}"><b>NEXT</b></a>
              </td>
              <td class="scrolling">
                <a href="{$script}?scrolling={$object}&item={@lastitem}"><b>LAST</b></a>
              </td>
            </xsl:otherwise>
          </xsl:choose>

        </xsl:if>

      </xsl:for-each>

    </tr>
  </table>

</xsl:template>

Here is the description of the numbered items:

Item (1) will look through the XML file for a scrolling entry for this object. This allows multiple scrolling specifications to be supplied and processed.
Item (2) will only include any further code in the HTML output if there is more than one item in this scroll area.
Item (3) examines the curitem attribute value in the XML input file, then performs the instructions at either (4) or (5) accordingly.
Item (4) will insert the values FIRST and PREV as plain text, not as hyperlinks.
Item (5) will create hyperlinks telling the server-side process to load a particular item number. This uses the $script parameter, the object name which was passed to the template, and the value for the curitem attribute from the XML input file.
Item (6) will insert the text Item X of Y.
Item (7) finds out if the current item is the last item, then performs the instructions at either (8) or (9) accordingly.
Item (8) will insert the values NEXT and LAST as plain text, not as hyperlinks.
Item (9) will create hyperlinks telling the server-side process to load a particular item number. This uses the $script parameter, the object name which was passed to the template, and the values for curitem and lastitem attributes from the XML input file.

5.9. std.selectbox.xsl

<xsl:template name="selectbox">

  <div class="center">

    <!-- create a checkbox which allows the current row to be selected -->
    <input type="checkbox" name="select[{position()}]" > (1)
      <xsl:if test="selected='T'">
        <!-- this is to be marked as selected in the initial display -->
        <xsl:attribute name="checked">checked</xsl:attribute> (2)
      </xsl:if>
    </input>

  </div>

</xsl:template>

Here is the description of the numbered items:

Item (1) will create a checkbox with the name select[n] where 'n' is the current row number.
Item (2) will mark this row as selected if indicated as such in the XML data file.

6. Summary

I hope that I have been able to demonstrate that XSL is a powerful scripting language that is perfectly capable of producing an HTML page from an XML data source that can be generated statically or even dynamically. Any HTML that you can generate from your application language, whether it be UNIFACE, JAVA, C++, PHP, or even .NET, can also be generated by XSL.

As with all good languages XSL has the ability to define frequently-used code in a single place, then include it into as many other components as is desired.

The big advantage is that the XSL approach totally removes the need to have developers who are conversant in both your application/database language and the various web languages. Thus you can employ a separate group of people with HTML/CSS/XSL skills and leave your current developers to maintain the code that communicates with the database and applies the business rules.

Another advantage is that should you ever wish to change your main application language your investment in HTML/CSS/XSL scripts will not be lost as they are all reusable. It does not matter one jot what development language you use at the back end provided that it can generate XML data and perform an XSL transformation. The transformation process does not care how the XML file was produced, or what tool was used to produce it - it is simply a text file which has been built to the XML standards.

What I have demonstrated in this article is only a fraction of what can be done with XML and XSL. Both of these have existed as published standards in their current versions for several years, and, as with every other part of the internet, they are growing, changing and maturing. The next version of HTML will use features of XML to completely overhaul the way that forms are processed. Take a look at the specification for XFORMS which has recently been released as an official recommendation by the World Wide Web Consortium and see for yourself.

7. Update

Since writing this document I have continued working on my XSL stylesheets and templates, trying to improve them, make them more flexible and increase the amount of reusable code. Although this document shows how it is possible to create a series of XSL stylesheets which call common code in the form of XSL templates which are maintained in separate files (similar to a library of subroutines), it does mean that each different screen still requires its own stylesheet in order to identify which fields go where in the HTML output. Although the stylesheet does specify which field to deal with, it does not specify which HTML control to use as that is supplied as attributes in the XML file. My datafield template examines the field's attributes, then calls another template to render the field in the required format. I began to wonder if it were possible to build a similar mechanism whereby the fieldlist could be passed as data in the XML file so that it need not be hard-coded in the XSL file.

It did not take long to create such a mechanism, and I have documented the results in Reusable XSL Stylesheets and Templates. The mechanism works as follows:

The specifications for each screen are contained in a separate file in the form of a PHP array, as shown here.
At runtime the contents of this array is included in the XML file, as shown here.
I created code which extracts the field list from the XML file, then processes the data for those fields in the specified order. One method will output the field data horizontally for LIST screens, and another will output the data vertically for DETAIL screens.

This mechanism proved to be so successful that I have incorporated it into my entire web application. I now have 350+ screens which are produced by no more than 8 XSL stylesheets. Can you achieve the same level of reusability in YOUR application?

Amendment History

03 Jun 2006	Renumbered section 3.3 to section 5. The XSL 'include' files.
29 Apr 2004	Changed the visual style of each sample web page.
6 Apr 2004	Added a section which refers to a new document called Reusable XSL Stylesheets and Templates which describes a method whereby I can now use a single generic XSL stylesheet for a whole class of forms instead of having a customised version for each individual form.
10 Nov 2003	Added a reference to A Sample PHP Application which describes a set of PHP scripts which I have put together to demonstrate the techniques described in this document. These scripts can be run online, or the entire source code can be downloaded and run offline (if you have a working PHP environment). Added section 5.8. std.scrolling.xsl Split section 5.3. std.data_field.xsl into smaller pieces.

counter

Tony Marston's Blog About software development, PHP and OOP

Generating dynamic web pages using XSL and XML

5.3.1 Template for BOOLEAN fields

5.3.2 Template for DROPDOWN fields

5.3.3 Template for MULTILINE fields

5.3.4 Template for POPUP fields

5.3.5 Template for RADIOGROUP fields

5.3.6 Template for TEXT fields
