A Data Dictionary for PHP Applications

By Tony Marston

17th June 2005
Amended 1st November 2022

As of 10th April 2006 the software discussed in this article can be downloaded from www.radicore.org

Introduction

Database Design

Dictionary E-R Diagram

DICT_DATABASE table

DICT_TABLE table

DICT_COLUMN table

DICT_TABLE_KEY table

DICT_RELATIONSHIP table

DICT_RELATED_COLUMN table

Maintenance Screens

Databases

Tables

Columns

Keys

Relationships

Export Files

<tablename>.class.inc

<tablename>.dict.inc

$fieldspec array

$primary_key array

$unique_keys array

$child_relations array

$parent_relations array

$audit_logging switch

$default_orderby string

$alt_language strings

$nameof strings

<dbname>.dict_export.inc

Additional options for the $fieldspec array

Using Parent Relations to construct sql JOINs

Using Parent Relations to construct WHERE strings

Generate PHP component scripts

References

Amendment History

Introduction

What is a Data Dictionary? In some languages it may go by another name, such as Catalog, Repository or Application Model. The Data Dictionary does not contain any application data, it contains information which describes what data the application requires and how it is structured. This information may include table names and characteristics, field names and characteristics, relationship information, et cetera. It is therefore data-about-data, or meta-data.

Many of the modern RDBMS products have facilities for holding and viewing meta-data (also known as a dictionary, catalog or information schema), so why not use that instead of going to the trouble of re-inventing the wheel? Simply because the RDBMS dictionary is designed for use by the RDBMS and does not have enough information to service other parts of the application. If you consider that an application is divided into 3 Tiers, then the RDBMS dictionary/catalog is limited to the data access layer. It cannot provide information for use in the business layer nor the presentation layer. The purpose of this particular data dictionary is to fill those gaps.

To utilise this data dictionary there are the following distinct stages:

1. IMPORT - Populate the dictionary database using details extracted from the physical database schema. This includes all table names, their field names and their attributes, and all primary keys, candidate keys and indices. If any table details are subsequently modified the import function can be used again to synchronise the dictionary. This will deal with new tables and new, changed or deleted columns.
2. EDIT - Extend and customise the details for use by the application. The meta-data imported from the database cannot be changed, but additional data can be customised as required within the dictionary database.
3. EXPORT - Make the details available to the application in the form of disk files which can be referenced by means of the include() function. Two files will be created for each database table:
   • classes/<tablename>.class.inc - this is the initial class file for the database table. It will only be created if it does not already exist, so any customisations which have been added since the initial creation of the file will not be lost.
   • classes/<tablename>.dict.inc - this contains the column details, primary and candidate key details, and relationship details. This will be overwritten during the export process, so no customisations of this file are allowed. All customisation should be performed in the dictionary and then exported to this file.

   Note that if a table's structure is amended after these two files have been created then the structure can simply be re-imported and re-exported. This will only cause the <tablename>.dict.inc file to be overwritten - the <tablename>.class.inc file will not be touched as there are no properties or methods for individual table columns.

4. CREATE TRANSACTION SCRIPTS - create a variety of user transactions based on the library of Transaction Patterns using the procedure described in Generate PHP component scripts. These patterns provide default behaviour without having to write a single line of PHP, HTML or SQL, but can be customised as required.

Note that the only way to keep the dictionary and the database synchronised is to make changes within the database (using whatever administration tool is available) then import the modified details into the dictionary. It is not possible to make modifications within the dictionary then export them to the database.

Database Design

Dictionary E-R Diagram

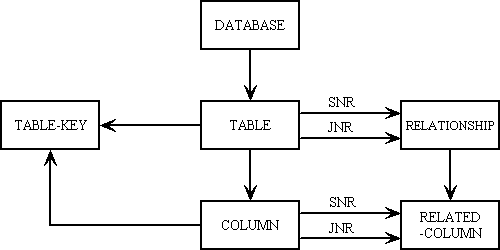

The Entity-Relationship (E-R) Diagram for my dictionary database is as shown in figure 1:

Figure 1 - E-R Diagram

DICT_DATABASE table

The structure of this table is as follows:

CREATE TABLE `dict_database` (
  `database_id` varchar(64) NOT NULL default '',
  `database_name` varchar(80) NOT NULL default '',
  `database_desc` text,
  `subsys_id` varchar(8) NOT NULL default '',
  `created_date` datetime NOT NULL default '2000-01-01 00:00:00',
  `created_user` varchar(16) default NULL,
  `revised_date` datetime default NULL,
  `revised_user` varchar(16) default NULL,
  PRIMARY KEY  (`database_id`)
) TYPE=MyISAM;

DICT_TABLE table

The structure of this table is as follows:

CREATE TABLE `dict_table` (
  `database_id` varchar(64) NOT NULL default '',
  `table_id` varchar(64) NOT NULL default '',
  `table_name` varchar(80) NOT NULL default '',
  `table_desc` text,
  `audit_logging` char(1) NOT NULL default 'Y',
  `default_orderby` varchar(64) default NULL,
  `alt_language_table` varchar(64) default NULL,
  `alt_language_cols` text,
  `nameof_start_date` varchar(40) default NULL,
  `nameof_end_date` varchar(40) default NULL,
  `nameof_extra_names_db` varchar(80) default NULL,
  `nameof_extra_names_tbl` varchar(255) default NULL,
  `nameof_extra_values_db` varchar(80) default NULL,
  `nameof_extra_values_tbl` varchar(255) default NULL,
  `created_date` datetime NOT NULL default '2000-01-01 00:00:00',
  `created_user` varchar(16) default NULL,
  `revised_date` datetime default NULL,
  `revised_user` varchar(16) default NULL,
  PRIMARY KEY  (`database_id`,`table_id`)
) TYPE=MyISAM;

NOTE: the nameof_extra_names/values columns are only relevant if you have developed a software package and users of this package require data elements which are not provided in the standard package.

DICT_COLUMN table

The structure of this table is as follows:

CREATE TABLE `dict_column` (
  `database_id` varchar(64) NOT NULL default '',
  `table_id` varchar(64) NOT NULL default '',
  `column_id` varchar(64) NOT NULL default '',
  `column_seq` smallint(6) unsigned NOT NULL default '0',
  `column_name` varchar(80) NOT NULL default '',
  `column_desc` text,
  `col_type` varchar(20) NOT NULL default '',
  `col_type_native` varchar(32) NOT NULL default '',
  `col_array_type` varchar(20) NOT NULL default '',
  `col_values` text,
  `user_size` int(11) unsigned NOT NULL default '0',
  `col_maxsize` int(11) unsigned NOT NULL default '0',
  `col_null` char(3) NOT NULL default 'YES',
  `is_required` char(1) NOT NULL default 'N',
  `col_key` char(3) default NULL,
  `col_default` varchar(40) default NULL,
  `col_auto_increment` char(1) NOT NULL default 'N',
  `col_unsigned` char(1) NOT NULL default 'N',
  `col_zerofill_bwz` char(3) default NULL,
  `col_precision` tinyint(3) unsigned default NULL,
  `col_scale` tinyint(3) unsigned default NULL,
  `col_minvalue` double default NULL,
  `col_maxvalue` double default NULL,
  `user_minvalue` double default NULL,
  `user_maxvalue` double default NULL,
  `noedit_nodisplay` char(3) default NULL,
  `nosearch` char(3) default NULL,
  `noaudit` char(3) default NULL,
  `upper_lowercase` varchar(5) default NULL,
  `is_password` char(1) NOT NULL default 'N',
  `auto_insert` char(1) NOT NULL default 'N',
  `auto_update` char(1) NOT NULL default 'N',
  `infinityisnull` char(1) NOT NULL default 'N',
  `subtype` varchar(10) default NULL,
  `image_width` smallint(6) unsigned default NULL,
  `image_height` smallint(5) unsigned default NULL,
  `is_boolean` char(1) NOT NULL default 'N',
  `boolean_true` varchar(4) default NULL,
  `boolean_false` varchar(4) default NULL,
  `control` varchar(10) default NULL,
  `optionlist` varchar(64) default NULL,
  `checkbox_label` varchar(64) default NULL,
  `task_id` varchar(64) default NULL,
  `foreign_field` varchar(64) default NULL,
  `align_hv` char(1) default NULL,
  `align_lr` char(1) default NULL,
  `multi_cols` tinyint(3) unsigned default NULL,
  `multi_rows` tinyint(3) unsigned default NULL,
  `custom_validation` varchar(255) default NULL,
  `created_date` datetime NOT NULL default '2000-01-01 00:00:00',
  `created_user` varchar(16) default NULL,
  `revised_date` datetime default NULL,
  `revised_user` varchar(16) default NULL,
  PRIMARY KEY  (`database_id`,`table_id`,`column_id`)
) TYPE=MyISAM;

Field	Type	Description
database_id	STRING	The database identity. Links to an entry on the DICT_TABLE table.
table_id	STRING	The table identity. Links to an entry on the DICT_TABLE table.
column_id	STRING	The column identity.
column_seq	NUMERIC	The sequence number of this column within the table's definition.
column_name	STRING	A user-defined name for the column. If this is set to 'DEPRECATED' the column will be excluded from the <tablename>.dict.inc file which is created in the Export Files process.
column_desc	TEXT	A user-defined description for the column.
col_type	STRING	The column type as shown to the user and as used by the application. In some cases COL_TYPE_NATIVE may identify a collection of possible data types, such as "CHAR,BOOLEAN", "TINYINT,BOOLEAN" or "DATE,TIME,DATETIME", in which case the user must choose the one which is desired from a dropdown list.
col_type_native	STRING	The column type as defined in the database. In some cases this may contain a collection of possible choices where a data type in the database may actually be used as a different data type in the application. This situation exists, for example, where the database does not support the BOOLEAN data type, in which case a CHAR(1) or TINYINT(1) is used instead. By defining such a column as BOOLEAN in the dictionary it can be treated as BOOLEAN by the application. This also applies in the Oracle database where the single DATE data type covers the DATE, TIME and DATETIME types which exist in other databases. As it could be inconvenient to always treat such a field as DATETIME when in fact it should be DATE only or TIME only it is presented to the user as "DATE,TIME,DATETIME" so that a specific choice can be made.
col_array_type	STRING	By default each datatype holds a single value, but with the PostgreSQL database it is possible to have a datatype which holds an array of values. In this case COL_TYPE is set to "ARRAY" and COL_ARRAY_TYPE is set to the underlying datatype such as VARCHAR, NUMBER, etc.
col_values	TEXT	This is the array of field values for MySQL fields of type 'ENUM' or 'SET'.
user_size	NUMERIC	The column size as defined by the user. It starts off the same as COL_MAXSIZE, but may be reduced.
col_maxsize	NUMERIC	The column size as defined in the database.
col_null	STRING	Identifies if the column value is allowed to be NULL or not. Possible values are: 'NULL' - value is allowed to be empty. 'NOT NULL' - value is not allowed to be empty.
is_required	BOOLEAN	Indicates if the column value is required or not. This is initially set using the value in COL_NULL. Possible values are: 'REQUIRED' - value is not allowed to be empty. 'No' - value is allowed to be empty. This may be altered to 'REQUIRED' to override the database setting.
col_key	STRING	Indicates if this column is part of a key or index. Possible values are: ' ' - not any type of key. 'PRIMARY' - column is in the primary key. 'UNIQUE' - column is in an additional unique key (candidate key). 'NON-UNIQUE' - column is in a non-unique key (index).
col_default	STRING	The default value for this column as defined within the database. If IS_REQUIRED is TRUE and no value is supplied on an INSERT, this default value will be used.
col_auto_increment	BOOLEAN	Indicates if this column is set to 'auto_increment' within the database. Possible values are: ' ' - no. 'AUTO INCREMENT' - on an INSERT the database will obtain the next sequence number.
col_unsigned	BOOLEAN	For numeric columns this turns off the ability to store values with a plus or minus sign (+/-). Only positive values can be stored. For MySQL this allows the maximum value for be doubled as the sign bit can be used as part of the value.
col_zerofill_bwz	STRING	Optional. Available for numeric/decimal fields only. Possible values are: '' - zeroes and blanks will not be converted in any way. ZEROFILL (ZF) - Causes leading zeros to be shown as '0' instead of ' ' (blank). BLANK WHEN ZERO (BWZ) - Causes '0.00' to be displayed as ' ' (blank). STRIP TRAILING ZERO (STZ) - Causes trailing zeros after the decimal point (except the first) to be removed, thus '17.50' is displayed as '17.5'.
col_precision	NUMERIC	For numeric values this is the number of significant decimal digits. For example, the value 999.99 has a precision of 5.
col_scale	NUMERIC	For numeric values this is the number of digits that can be stored following the decimal point. For example, the value 999.99 has a scale of 2.
col_minvalue	NUMERIC	For numeric fields this is the minimum value allowed by the database.
col_maxvalue	NUMERIC	For numeric fields this is the maximum value allowed by the database.
user_minvalue	NUMERIC	This starts off with the same value as COL_MINVALUE, but can be customised by the user.
user_maxvalue	NUMERIC	This starts off with the same value as COL_MAXVALUE, but can be customised by the user.
noedit_nodisplay	STRING	This is used by the presentation layer only. Possible values are: ' ' - value may be changed. 'NOEDIT' - the value will be displayed but cannot be changed. 'NODISPLAY' - value will not be displayed.
nosearch	STRING	This is used by the presentation layer only. Possible values are: ' ' - the field will not be excluded from SEARCH screens. 'NOEDIT' - the field will be excluded from SEARCH screens.
noaudit	STRING	This is used by the data access layer only. Possible values are: ' ' - the 'before' and 'after' values for the field will appear in the Audit Log as normal to show that it has changed. 'NOAUDIT' - the field will still appear in the Audit Log, but its value will be replaced with a series of asterisks (*).
upper_lowercase	STRING	For string fields this forces all input to be shifted to upper or lower case before being written to the database.
is_password	BOOLEAN	This is used by the presentation layer only. As characters are input they are masked, typically by a series of asterisks, to protect sensitive information from onlookers. However, they are still transmitted to the server in clear text.
auto_insert	BOOLEAN	This is only used when new records are inserted. Possible values are: ' ' - no action. 'AUTO-INSERT' - a value will be inserted according to the column's type: DATETIME - the current date and time will be inserted. DATE - the current date will be inserted. TIME - the current time will be inserted. STRING - the current user's identity (from the logon screen) will be inserted. OTHER - no action will be taken.
auto_update	BOOLEAN	This is only used when existing records are updated. Possible values are: ' ' - no action. 'AUTO-UPDATE' - a value will be inserted according to the column's type (see AUTO_INSERT for details).
infinityisnull	BOOLEAN	This is valid for columns of type DATE only. It means that a blank date on the screen will be held in the database as '9999-12-31' instead of '0000-00-00'. See Dealing with null End Dates for a detailed explanation.
subtype	STRING	This option is available for string fields only. Possible values are: ' ' - no action. 'FILE NAME' - no action (yet). 'E-MAIL' - will be checked against the pattern for e-mail addresses. 'IMAGE' - will display the file as an image (see also IMAGE_WIDTH and IMAGE_HEIGHT). 'VIDEO' - will display the file as a video (see also IMAGE_WIDTH and IMAGE_HEIGHT).
custom_validation	STRING	This option is available for any field. It identifies the validation method to be used for this field. The format is 'file/class/method' where: file = the name of the file which contains the validation class. class = the name of the validation class. method = the name of the method within the validation class. Refer to Extending the Validation class for more details.
image_width	NUMERIC	Only valid if CONTROL='IMAGE' or SUBTYPE='IMAGE' or 'VIDEO'. Identifies the width of the image in pixels.
image_height	NUMERIC	Only valid if CONTROL='IMAGE' or SUBTYPE='IMAGE' or 'VIDEO. Identifies the height of the image in pixels.
is_boolean	BOOLEAN	The DBMS may not support a column type of BOOLEAN, in which case a 1-character field may be used as a substitute. This column may be set to TRUE to force the application to treat such a field as BOOLEAN so that its values can be limited to either BOOLEAN_TRUE or BOOLEAN_FALSE.
boolean_true	STRING	Only valid if IS_BOOLEAN='TRUE'. Identifies how the value 'TRUE' is stored, typically something like '1' or 'T' or 'Y'.
boolean_false	STRING	Only valid if IS_BOOLEAN='TRUE'. Identifies how the value 'FALSE' is stored, typically something like '0' or 'F' or 'N'.
control	STRING	This identifies the HTML control to be used when the field is built into a screen (and is amendable). Possible values are: ' ' - text box (default). 'DROPDOWN LIST' - options will be displayed in a scrollable list. 'MULTI DROPDOWN' - a dropdown list that allows multiple items to be selected (see also MULTI_ROWS). 'RADIO GROUP' - options will be displayed as a group of radio buttons. 'CHECKBOX' - a box that will be ticked to represent ON/YES/TRUE and unticked to represent OFF/NO/FALSE. As well as the standard label there is also the option of defining an additional piece of text (see CHECKBOX_LABEL) which may appear either to the left or right of the control (see ALIGN_LR). 'MULTI CHECKBOX' - a group of checkboxes which can be used instead of a 'MULTI DROPDOWN'. The group may be displayed in either a horizontal or vertical list (see ALIGN_HV) with CHECKBOX_LABEL either to the left or right of each checkbox (see ALIGN_LR). 'MULTI-LINE TEXT BOX' - will be displayed as a multi-line text box instead of a single line (see also MULTI_COLS and MULTI_ROWS). 'POPUP' - a picklist that will be displayed as another form/screen instead of a dropdown list due to the large number of available options. 'FILE PICKER' - a picklist that will present a list of file names from a particular directory. 'HYPERLINK' - a string that will be displayed as a hyperlink, but for tasks of type 'input', 'update' and 'search' it will be displayed as an editable text box. 'IMAGE HYPERLINK' - a string containing the path to an image file that will be displayed using the dimensions specified in image_width and image_height. When clicked on it will be displayed full size. 'IMAGE' - a string containing the path to an image file that will be displayed using the dimensions specified in image_width and image_height.
optionlist	STRING	This is valid for dropdown lists and radio groups only. It is the name the list of items that will be used to populate that HTML control. This list should be constructed within the table class and written out to the XML file.
checkbox_label	STRING	This is valid for checkboxes only. It is for an additional piece of text which may appear either to the left or right of the control depending on ALIGN_LR.
task_id	STRING	Optional. If the CONTROL type is 'File Picker' or 'Popup' this is the name of the Task that will be activated to provide the picklist of available options.
foreign_field	STRING	Optional. If the CONTROL type is 'Popup' this is name of a field on the foreign table that will be merged with the contents of the current table before being output to the XML file. This will allow the key value, which may be meaningless to the user, to be replaced with a more descriptive value. Note that the value in the foreign field can only be displayed if it is available in $fieldarray. This can be done either by including that field in the SQL SELECT query by following the instructions in Using Parent Relations to construct sql JOINs or by using custom code to insert the value manually after the SELECT query has been executed.
align_hv	STRING	Optional. If the CONTROL type is 'Radio Group' this identifies how the list of options should be aligned. Possible values are: 'V' - Vertical. 'H' - Horizontal (default). This can be used to produce effects such as:
align_lr	STRING	Optional. If the CONTROL type is 'Radio Group' or 'Checkbox' this identifies whether the text should be to the left or the right of the control. For checkboxes this only applies if an additional checkbox label has been defined. Possible values are: 'L' - Left. 'R' - Right (default). This can be used to produce effects such as:
multi_cols	NUMERIC	If the CONTROL type is 'Multi-Line' this identifies the width of the text box in columns.
multi_rows	NUMERIC	If the CONTROL type is 'Multi-Line' this identifies the height of the text box in rows (lines). If the CONTROL type is 'Dropdown' or 'Multi-Dropdown' this identifies the height of the scrollable area in rows (lines).
The following fields are set automatically by the system:
created_date	DATE+TIME	The date and time on which this record was created.
created_user	STRING	The identity of the user who created this record.
revised_date	DATE+TIME	The date and time on which this record was last changed.
revised_user	STRING	The identity of the user who last changed this record.

DICT_TABLE_KEY table

The structure of this table is as follows:

CREATE TABLE `dict_table_key` (
  `database_id` varchar(64) NOT NULL default '',
  `table_id` varchar(64) NOT NULL default '',
  `key_name` varchar(64) NOT NULL default '',
  `column_id` varchar(64) NOT NULL default '',
  `seq_in_index` tinyint(3) unsigned NOT NULL default '0',
  `is_unique` char(1) NOT NULL default 'N',
  `column_seq` tinyint(3) unsigned default NULL,
  `created_date` datetime NOT NULL default '2000-01-01 00:00:00',
  `created_user` varchar(16) default NULL,
  `revised_date` datetime default NULL,
  `revised_user` varchar(16) default NULL,
  PRIMARY KEY  (`database_id`,`table_id`,`key_name`,`column_id`)
) TYPE=MyISAM;

DICT_RELATIONSHIP table

The structure of this table is as follows:

CREATE TABLE `dict_relationship` (
  `database_id_snr` varchar(64) NOT NULL default '',
  `table_id_snr` varchar(64) NOT NULL default '',
  `database_id_jnr` varchar(64) NOT NULL default '',
  `table_id_jnr` varchar(64) NOT NULL default '',
  `seq_no` tinyint unsigned NOT NULL default '0',
  `table_alias_snr` varchar(64) default NULL,
  `table_alias_jnr` varchar(64) default NULL,
  `relation_name` varchar(80) default NULL,
  `relation_desc` text,
  `relation_type` char(3) NOT NULL default '',
  `orderby` varchar(64) default NULL,
  `parent_field` varchar(64) default NULL,
  `calc_field` varchar(255) default NULL,
  `created_date` datetime NOT NULL default '2000-01-01 00:00:00',
  `created_user` varchar(16) default NULL,
  `revised_date` datetime default NULL,
  `revised_user` varchar(16) default NULL,
  PRIMARY KEY  (`database_id_snr`,`table_id_snr`,`database_id_jnr`,`table_id_jnr`,`seq_no`)
) TYPE=MyISAM;

DICT_RELATED_COLUMN table

The structure of this table is as follows:

CREATE TABLE `dict_related_column` (
  `database_id_snr` varchar(64) NOT NULL default '',
  `table_id_snr` varchar(64) NOT NULL default '',
  `column_id_snr` varchar(64) NOT NULL default '',
  `database_id_jnr` varchar(64) NOT NULL default '',
  `table_id_jnr` varchar(64) NOT NULL default '',
  `seq_no` tinyint unsigned NOT NULL default '0',
  `column_id_jnr` varchar(64) default NULL,
  `seq_in_index` tinyint(4) unsigned NOT NULL default '0',
  `created_date` datetime NOT NULL default '2000-01-01 00:00:00',
  `created_user` varchar(16) default NULL,
  `revised_date` datetime default NULL,
  `revised_user` varchar(16) default NULL,
  PRIMARY KEY  (`database_id_snr`,`table_id_snr`,`column_id_snr`,`database_id_jnr`,`table_id_jnr`,`seq_no`)
) TYPE=MyISAM;

Maintenance Screens

These are the maintenance screens for the Data Dictionary:

Databases

List Databases

List Databases by Subsystem

Import Databases

Delete Database

Enquire Database

Erase Database

Export Database

Search Database

Update Database

Output Databases to PDF (List View)

Tables

List Tables

List Tables by Database

Import Tables

Export Table to PHP

Delete Table

Enquire Table

Search Table

Update Tables

Choose Tables

Output Tables to PDF (List View)

Generate PHP scripts (a) - Select Pattern

Generate PHP scripts (b) - Enter details

Columns

List Columns

List Columns by Table

Import Columns

Delete Column

Enquire Column

Search Column

Update Column

Keys

List Keys

List Keys by Table

Delete Key

Enquire Key

Search Key

Relationships

List Relationships

List Child Relationships by Table

List Child Relationships by Database

Add Child Relationship

Update Child Relationship

Enquire Child Relationship

List Parent Relationships by Table

List Parent Relationships by Database

Add Parent Relationship

Update Parent Relationship

Enquire Parent Relationship

Delete Relationship

Search Relationship

Output Relationships to PDF (List View)

Output Relationships to PDF (Detail View)

Export Files

My whole development methodology is built around the philosophy of having a separate class for each database table. Some OO proponents consider this approach to be pure heresy, but I choose to ignore them.

Files <tablename>.class.inc and <tablename>.dict.inc are created by the Export Table to PHP process.

File <dbname>.dict_export.inc is created by the Export Database process.

<tablename>.class.inc

All the standard functionality for accessing a database table is contained within an abstract superclass, so all that is required for each individual table is a simple script that extends this into a subclass, as shown in the sample below:

<?php
require_once 'std.table.class.inc';
class #tablename# extends Default_Table
{
    // ****************************************************************************
    // class constructor
    // ****************************************************************************
    function __construct ()
    {
        // save directory name of current script
        $this->dirname   = dirname(__file__);

        $this->dbname    = '#dbname#';
        $this->tablename = '#tablename#';

        // call this method to get original field specifications
        // (note that they may be modified at runtime)
        $this->fieldspec = $this->loadFieldSpec();

    } // __construct

// ****************************************************************************
} // end class
// ****************************************************************************
?>

During the export process the strings #dbname# and #tablename# are replaced with the relevant values. The loadFieldSpec() method will load additional information regarding the structure of that table from the corresponding <tablename>.dict.inc file.

Upon first seeing one of these classes a casual observer may notice that there are no methods apart from the constructor, and these may lead that person to believe that the class does not perform any operations on its data therefore is a prime example of an Anemic Domain Model. If you look closely you will see that each table class extends or inherits from an abstract superclass, and it is this superclass which contains all the relevant processing in the form of Template Methods. The invariant/fixed methods have their implementations defined in the abstract superclass while the variant/customisable methods, while also defined in the superclass, have empty implementations which can be replaced with actual implementations in any subclass. These variant/customisable methods are also known as hook methods.

Notice that I do not define a class property for each column within the table, nor do I define getters and setters for each column. I find this approach too restrictive, so instead I do the following:

• All data is passed in and out within an associative array which may also be indexed by row number. This allows each object to handle any number of columns from any number of rows, and even any number of tables. Data may be read from other tables via a JOIN, or sent to other tables during the insert or update process.
• Because I don't use getter and setter methods to move data in and out of each table object, the controllers which move the data in and out don't need to be hard-coded with those method names. This in turn means that I can use generic controllers to handle any number of table objects instead of being forced to have a separate controller for each object. These generic controllers are provided by the framework and do not require extra effort by any developers.
• Similarly the processing within my View component is much simpler. The data is extracted from the Model component as a single array, then transfered in its entirety to an XML file without the need for any hard-code database, table or column names. This XML file is transformed into HTML using an XSL stylesheet which again does not contain any hard-coded database, table or column names.
• Data validation can be performed automatically by a standard validation object which iterates through the array and compares the value for each column with the contents of the $fieldspec array (which is provided as part of <tablename>.dict.inc). The validation object is provided by the framework and does not require extra effort by any developers.

The loadFieldSpec() method is defined within the superclass and will load the contents of <tablename>.dict.inc into the class instance at runtime using code similar to the following:

    function loadFieldSpec ()
    // set the specifications for this database table.
    {
        if (empty($this->fieldspec)) {
            // first time only - look for changes in engine, prefix or database name
            list($this->dbname, $this->dbprefix, $this->dbms_engine) = findDBConfig($this->dbname,
                                                                                    $this->dbprefix,
                                                                                    $this->dbms_engine);
        } // if

        $fieldspec                     = array();
        $this->primary_key             = array();
        $this->unique_keys             = array();
        $this->child_relations         = array();
        $this->parent_relations        = array();
        $this->audit_logging           = FALSE;
        $this->default_orderby         = '';
        $this->alt_language_table      = '';
        $this->alt_language_cols       = '';
        $this->nameof_start_date       = '';
        $this->nameof_end_date         = '';
        $this->nameof_extra_names_db   = '';
        $this->nameof_extra_names_tbl  = '';
        $this->nameof_extra_values_db  = '';
        $this->nameof_extra_values_tbl = '';

        if ($this->getTableName() != 'default') {
            // include table specifications generated by Data Dictionary
            require ($this->dirname .'/' .$this->getTableName() .'.dict.inc');
        } // if

        return $fieldspec;

    } // loadFieldSpec

This subclass, when combined with the standard code inherited from the superclass, is enough to provide all the code necessary to perform insert, select, update and delete operations on that database table, with all primary validation being performed using the rules provided by the contents of <tablename>.dict.inc.

The default processing for any table can be modified by inserting the required code into the customisable methods (identified by the prefix '_cm_') which have been defined as empty stubs within the superclass. The default processing contains calls to these empty methods at various stages of its processing, as shown in UML diagrams for the Radicore Development Infrastructure. Simply copy the empty method from the superclass to the subclass and whatever code you place within it will be executed at runtime instead of the empty original.

Note that should the table details be re-exported from the data dictionary then this file will NOT be overwritten in order to preserve any manual amendments.

<tablename>.dict.inc

This file contains information that was contained within the Data Dictionary at the time the EXPORT function was processed. Note that should the table details be re-exported from the data dictionary then this file will be overwritten, so any manual amendments will be lost. If any changes need to be made to any of this data at run time in a particular object then these changes should be made in the _cm_changeConfig() method of the table's class file. Any such changes will be lost when the script terminates.

Note that any columns with the description set to 'DEPRECATED' will not be exported and so will be invisible to the table class. This can be used in those organisations which prefer to mark a redundant column as 'deprecated' instead of physically removing it from the database schema.

This file is presented in a format which is readily accessible to PHP scripts. The structure of this file is as follows:

<?php
    // file created on May 30, 2005, 10:45 am

    // field specifications for table dbname.tblname
    $fieldspec['fieldname1']      = array('keyword1' => 'value1',
                                          'keyword2' => 'value2');
    $fieldspec['fieldname2']      = array('keyword1' => 'value1',
                                          'keyword2' => 'value2');

    // primary key details
    $this->primary_key            = array('field1','field2');

    // unique key details
    $this->unique_keys[]          = array('field1','field2');
    $this->unique_keys[]          = array('field3','field4');

    // child relationship details
    $this->child_relations[]      = array('child' => 'tblchild',
                                          'dbname' => 'dbchild',
                                          'subsys_dir' => 'dirname',
                                          'alias' => 'tblchild_alias',
                                          'type' => 'RES/CAS/NUL',
                                          'orderby' => 'field1,field2,...',
                                          'fields' => array('fldparent1' => 'fldchild1',
                                                            'fldparent2' => 'fldchild2'));

    $this->child_relations[]      = array(...);

    // parent relationship details
    $this->parent_relations[]     = array('parent' => 'tblparent',
                                          'dbname' => 'dbparent',
                                          'subsys_dir' => 'dirname',
                                          'alias' => 'tblparent_alias',
                                          'parent_field' => 'fieldname',
                                          'alt_language_table' => 'tablename',
                                          'alt_language_cols' => 'fieldname1,fieldname2,...',
                                          'fields' => array('fldchild1' => 'fldparent1',
                                                            'fldchild2' => 'fldparent2'));

    $this->parent_relations[]      = array(...);

    // determines if database updates are recorded in an audit log
    $this->audit_logging           = TRUE/FALSE;

    // default sort sequence
    $this->default_orderby         = 'fieldname1,fieldname2,...';

    // alternative language options
    $this->alt_language_table      = 'tablename';
    $this->alt_language_cols       = 'fieldname1,fieldname2,...';

    // alias names
    $this->nameof_start_date       = 'nameof_start_date';
    $this->nameof_end_date         = 'nameof_end_date';

    // extra_names/extra_values table names
    $this->nameof_extra_names_db   = 'nameof_extra_names_db';
    $this->nameof_extra_names_tbl  = 'nameof_extra_names_tbl';
    $this->nameof_extra_values_db  = 'nameof_extra_values_db';
    $this->nameof_extra_values_tbl = 'nameof_extra_values_tbl';

    // finished
?>

Each individual component of this file is described below.

$fieldspec array

This has the following format:

// field specifications for table dbname.tblname
$fieldspec['fieldname1']  = array('keyword1' => 'value1',
                                  'keyword2' => 'value2');
$fieldspec['fieldname2']  = array('keyword1' => 'value1',
                                  'keyword2' => 'value2');

An entry is created here for each field (column) within the database table. Each entry has an array of keywords and values which identify how the field is to be dealt with as it passes in and out of the application. Please note the following:

• Most of these keywords are optional and may not be defined for every field.
• Some keywords are dependent on the settings of other keywords.
• Where a value is expressed as '=y' this is used just to set the keyword as a key in the array. The value itself is irrelevant. To turn the keyword off it is necessary to remove it from the array completely and not to set the value to something other than 'y'.

The meanings of each entry are:

The $fieldspec array has several uses:

• It identifies all the fields which exist on the table, therefore when the contents of the POST array are passed to an object for processing it is able to filter out any non-database fields (such as the SUBMIT button, for example) before preparing the SQL statement.
• Because the field(s) which form the primary key are identified it is easy to extract from the POST array the correct WHERE clause for a database UPDATE or DELETE.
• Because this array identifies all the fields and their field types it is possible to have a standard function which performs primary validation. This can check that required fields are not empty, date fields contain dates, numeric fields contain numbers, et cetera. Secondary validation, where one field is compared with another, requires custom code to be inserted into the relevant validate() method in the entity class.
• Information from this array is also written out to the XML document so that it can be used during the XSL transformation process which constructs the HTML output.
  • The size option will be used to set the field size, for example.
  • The pkey option means that the field will be editable only on INSERT and SEARCH screens.
  • The noedit option will cause the field to be rendered as non-editable.
  • The nodisplay option will cause the field value to be completely omitted from the HTML output. For DETAIL screens both the label and the field will be omitted. For LIST screens the column heading will remain but the value will be blanked out.
  • The nosearch option will cause the field to be removed from search screens.
  • By default the HTML control type used for editable fields will be 'text', but this can be changed to dropdown list, checkbox, radio group or whatever.
  • For radio groups there are options to display the group either vertically or horizontally, and to place the text for each button either on the left or the right.
  • For checkboxes there is the option to include an additional label, and to place this text either on the left or the right.
• It is possible for the contents of the $fieldspec array to be modified at runtime. Thus it is possible to change a field from editable to non-editable, or even hide it altogether. It is even possible to change the HTML control type - in one application I have a field which may vary between a multi-line text box, a dropdown list or a number depending on different settings. Code in the entity class detects what is required and alters the $fieldspec array accordingly. This information is written out to the XML document so it can be actioned by the XSL transformation.

Note that there are other options which may be added to any entry in this array within program code as discussed in Additional options for the $fieldspec array.

$primary_key array

This has the following format:

// primary key details
$this->primary_key        = array('field1','field2');

This is an indexed array containing one or more field names which together form the primary key of this database table.

This information is used just before an INSERT to check that a record with this key does not currently exist, otherwise an error message will be returned to the user. If the primary key contains a field with AUTO-INCREMENT=TRUE then this check will not be performed.

$unique_keys array

This has the following format:

// unique key details
$this->unique_keys[]      = array('field1','field2');
$this->unique_keys[]      = array('field3','field4');

These are unique keys that are in addition to the primary key, and are sometimes known as candidate keys. As a table may have zero or more additional keys this array may be empty, or it may contain a separate entry for each additional key. Each entry will itself be an array containing one or more field names.

This information is used just before an INSERT or UPDATE to check that a record with each key does not currently exist, otherwise an error message will be returned to the user.

$child_relations array

This has a separate entry for each table which is the child in a parent-child relationship with this table. This also maps the primary key on this table to the foreign key of the child table. It has the following format:

// child relationship details
$this->child_relations[]  = array('child' => 'tblchild',
                                  'dbname' => 'dbchild',
                                  'subsys_dir' => 'dirname',
                                  'alias' => 'tblchild_alias',
                                  'type' => 'RES/CAS/NUL',
                                  'orderby' => 'field1,field2,...',
                                  'fields' => array('fldparent1' => 'fldchild1',
                                                    'fldparent2' => 'fldchild2'));

$this->child_relations[]  = array(...);

An entry is created here for each instance where this table is defined as the parent in a parent-to-child (one-to-many, senior-to-junior) relationship. Note that a table can be the parent in any number of relationships. The meanings of each entry are:

$parent_relations array

This has a separate entry for each table which is the parent in a parent-child relationship with this table. This also maps foreign keys on this table to the primary key of the parent table. It has the following format:

// parent relationship details
$this->parent_relations[] = array('parent' => 'tblparent',
                                  'dbname' => 'dbparent',
                                  'subsys_dir' => 'dirname',
                                  'alias' => 'tblparent_alias',
                                  'parent_field' => 'fieldname',
                                  'alt_language_table' => 'tablename',
                                  'alt_language_cols' => 'fieldname1,fieldname2,...',
                                  'fields' => array('fldchild1' => 'fldparent1',
                                                    'fldchild2' => 'fldparent2'));

$this->parent_relations[] = array(...);

An entry is created here for each instance where this table is defined as the child in a parent-to-child (one-to-many, senior-to-junior) relationship. Note that a table can be the child in any number of relationships. The meanings of each entry are:

The information in the $parent_relations array is used to help construct sql SELECT statements, as explained in Using Parent Relations to construct sql JOINs. It is also referenced in the getForeignData() method which will perform a separate lookup for each relationship.

$audit_logging switch

This has the following format:

// determines if database updates are recorded in an audit log
$this->audit_logging      = TRUE/FALSE;

This switch can either be TRUE or FALSE. If TRUE then any INSERT, UPDATE or DELETE operation on this table will cause the Data Access Object (DAO) to pass control to the Audit Logging system so that the changes can be logged in the AUDIT database. These changes will then be available for viewing using standard online enquiry screens.

$default_orderby string

This has the following format:

// default sort sequence
$this->default_orderby    = 'fieldname1,fieldname2,...';

This is a string containing zero or more field names. When occurrences of this table are retrieved for LIST screens this will be used as the sort sequence unless other sorting criteria has been specified either for the TASK or by the use of the column headings.

$alt_language strings

This has the following format:

// alternative language options
$this->alt_language_table       = 'tablename';
$this->alt_language_cols        = 'fieldname1,fieldname2,...';

These two strings identify the fact that this table has columns which have translations in alternative languages on another table. his is described in Internationalisation and the Radicore Development Infrastructure (Part 2).

$nameof strings

This has the following format:

    // alias names
    $this->nameof_start_date      = 'nameof_start_date';
    $this->nameof_end_date        = 'nameof_end_date';

Each of these strings identifies the column which is to be treated as start_date or end_date, but which has a different name. These two dates identify the period during which the record is to be considered as "current" or "available". This allows different records with different values, such as those of a PRICE file, to be created so that when the date changes the "current" value will be used instead of the "historic" value.

    // extra_names/extra_values table names
    $this->nameof_extra_names_db   = 'nameof_extra_names_db';
    $this->nameof_extra_names_tbl  = 'nameof_extra_names_tbl';
    $this->nameof_extra_values_db  = 'nameof_extra_values_db';
    $this->nameof_extra_values_tbl = 'nameof_extra_values_tbl';

This is only used in the commercial version in order to provide links to tables which contain data in additional to that contained within the standard tables.

<dbname>.dict_export.inc

It is sometimes necessary to take the details which have been entered into one data dictionary and copy them into another. Typing in the details manually would be too cumbersome, and copying the entire dictionary database may include unwanted details. Another option would be to export the details for selected application databases into an SQL script which can then be processed by whatever utility comes with your database engine.

This facility will create an SQL script containing INSERT/REPLACE statements for each record in the data dictionary which belongs to the selected application database. This script can then be used to import the same details into another dictionary database.

Using this function to provide an export of dictionary data would be a good idea before the erase function is used.

Additional options for the $fieldspec array

When a table class is instantiated into an object the constructor for that class will load the contents of the <table>.dict.inc file into memory. During the execution of a task it is possible to amend the contents of this data before it is actually used, but why would there be any need to do so? You may wish to amend the $fieldspec options for an existing field by adding or removing the noedit option or the nodisplay option. You may even wish to change the control from 'dropdown list' to a 'popup' should the number of entries be too great.

There may also be times when you need to add entries for field names which do not actually exist in that table. By default any field which is sent to the screen without having an entry in the $fieldspec array will be displayed as a piece of read-only text. A date field, for example, will have its contents displayed as '2016-05-23'. To have it properly formatted into '23 Jun 2016' you would have to add an entry to the $fieldspec array such as the following:

function _cm_changeConfig ($where, $fieldarray)
// Change the table configuration for the duration of this instance.
{
    if (!isset($this->fieldspec['dummy_date'])) {
        $this->fieldspec['dummy_date'] = array('type' => 'date',
                                               'size' => 12);
    } // if

    return $fieldarray;

} // _cm_changeConfig

This is fine in a read-only screen, but if the operation is an INSERT or an UPDATE then the framework will assume that the dummy_date field belongs in the table and will pass its details to the DML object so that it can be included in the SQL query, and this will result in a fatal error. This can be avoided by including the nondb (non-database) keyword which, by default, will also prevent the field's contents from being validated. The full range of options which can be included in the $fieldspec array within program code but not via the Data Dictionary screens is contained in the following list:

Using Parent Relations to construct sql JOINs

Accessing the database is performed by constructing a query string within the data access layer and sending this to the database via the relevant API. Because this string is constructed from several smaller substrings which are generated in the business layer it is possible to incorporate the details of any parent relationships so that the sql SELECT statement which is constructed will include the relevant JOIN clauses to bring back the specified field(s) from the parent table(s). It is also possible to specify alias names to deal with those situations when a table appears more than once in the same SELECT statement.

The full query string is constructed using the following substrings:

$query = "SELECT $select_str
            FROM $from_str
                 $where_str
                 $group_str
                 $having_str
                 $sort_str
                 $limit_str";

These are described in more detail in How to extend the SQL SELECT statement.

Just before the business layer component passes control to the data access layer to retrieve data from the database it will check to see if it needs to include any JOIN clauses for parent relations. The actual sequence of events is as follows:

1. If $from_str is not empty then skip this processing. This means that the developer has provided a customised SELECT string and does not want the system to automatically add in any extra JOIN clauses.
2. If the $parent_relations array is empty then there is nothing to process.
3. If $select_str is empty then insert <tablename>.*.
4. Insert <tablename> into $from_str.
5. For each entry in the $parent_relations array do the following:
   1. If nothing is defined for parent_field then ignore this entry. If no data is going to be retrieved from this parent table then there is no point in JOINing to it.
   2. Append the contents of parent_field to the contents of $select_str.
   3. Append 'LEFT JOIN <tblparent>' to the contents of $from_str.
   4. If an alias is defined then append ' AS <alias>' to the contents of $from_str.
   5. Iterate through the fields array to construct the ' ON (tblparent.fldparent=tblchild.fldchild) clause, and append it to the contents of $from_str.

If all these substrings are still empty by the time they reach the data access layer, then:

• Set $select_str to '*'.
• Set $from_str to the current table name.

Here are some examples of SELECT strings which can be generated by the system when no customised substrings are supplied:

• A standard SELECT without any JOINs:

  SELECT * FROM x_tree_node WHERE node_id='23'


  If there are no parent relations then no JOIN clauses can be constructed.
• SELECT with a simple join:

  SELECT x_tree_node.*,
         tree_level_seq, tree_level_desc
  FROM x_tree_node
  LEFT JOIN x_tree_level ON (x_tree_level.tree_type_id=x_tree_node.tree_type_id
                        AND x_tree_level.tree_level_id=x_tree_node.tree_level_id)
  WHERE x_tree_node.node_id='23'


  In this example x_tree_level is the parent and x_tree_node is the child. Note here that more than one field is being retrieved from the parent table. It is also possible to specify a calculated field, as in

  CONCAT(first_name, ' ', last_name) AS person_name

  There is no need to qualify these field names unless they also appear on other tables in the same SELECT statement.
• SELECT with a table joining to itself:

  SELECT x_tree_node.*,
         x_tree_node_snr.node_desc AS node_desc_snr
  FROM x_tree_node
  LEFT JOIN x_tree_node AS x_tree_node_snr
         ON (x_tree_node_snr.node_id=x_tree_node.node_id_snr)
  WHERE x_tree_node.node_id='23'


  In this example the table x_tree_node (primary key node_id) is joined to itself by field node_id_snr which contains the identity of the parent node within the hierarchy of senior-to-junior nodes. Because the table name x_tree_node will appear twice in the same SELECT statement the parent entry is given the alias name of x_tree_node_snr. Because the field name node_desc will appear twice in the same SELECT statement the parent entry is given the alias name of node_desc_snr. Note that this also has to be qualified with the table's alias name.
• SELECT with multiple JOINs to the same table:

  SELECT mnu_nav_button.*,
         mnu_task_snr.task_desc AS task_desc_snr,
         mnu_task_jnr.task_desc AS task_desc_jnr
  FROM mnu_nav_button
  LEFT JOIN mnu_task AS mnu_task_snr
         ON (mnu_task_snr.task_id=mnu_nav_button.task_id_snr)
  LEFT JOIN mnu_task AS mnu_task_jnr
         ON (mnu_task_jnr.task_id=mnu_nav_button.task_id_jnr)
  WHERE mnu_nav_button.task_id_snr='mnu_dialog_type(list)'
  ORDER BY mnu_nav_button.sort_seq asc


  In this example the table mnu_nav_button is related to table mnu_task twice, using a field with either a '_snr' or '_jnr' suffix. Each occurrence of the table name is therefore given an alias which, by coincidence, also includes the same suffix. Note also that this requires the field name(s) which are to be retrieved from each parent table to be given the same qualifier as that table's alias.
• SELECT where tables have alternative language options

  SELECT x_tree_node.node_id, x_tree_node.tree_type_id, x_tree_node.tree_level_id, ...,
         COALESCE(...) AS node_desc,
         COALESCE(...) AS tree_level_desc,
         COALESCE(...) AS node_desc_snr,
         COALESCE(...) AS tree_type_desc
  FROM x_tree_node
  LEFT JOIN x_tree_level ON (x_tree_level.tree_type_id=x_tree_node.tree_type_id
                         AND x_tree_level.tree_level_id=x_tree_node.tree_level_id)
  LEFT JOIN x_tree_node AS x_tree_node_snr ON (x_tree_node_snr.node_id=x_tree_node.node_id_snr)
  LEFT JOIN x_tree_type ON (x_tree_type.tree_type_id=x_tree_node.tree_type_id)
  WHERE ( x_tree_node.node_id='44' )


  where each COALESCE statement is in the format:

  COALESCE((SELECT <field>
            FROM <table_alt>
            WHERE <table_alt>.<foreign_key>=<table>.<primary_key>
              AND <table_alt>.language_id='??')
           , <table>.<field>) AS <field>


  The details of the alternative language option are explained in Internationalisation and the Radicore Development Infrastructure (Part 2).

All of the above is standard SQL, therefore should work in any standards-compliant database engine.

Using Parent Relations to construct WHERE strings

In those transaction patterns such as LIST2 and LIST3 which deal with two or more entities in a parent-child/one-to-many relationship, it is possible to use the information in the $parent_relations array when constructing the WHERE clause which is passed from the parent object to the getData() method of the child object. This is useful in those situations where the names of the columns in the child's foreign key are different from the corresponding names in the parent's primary key as it will deal automatically with any differences in the names.

Note that this procedure cannot be used when a WHERE string is constructed in a parent task and passed to a child task by pressing a navigation button as the child task does not know the name of the table in the parent task, and if there are alias names it would not know which one to use.

The procedure, which is performed by the getForeignKeyValues() function, will examine the contents of the $parent_relations array in the child object and stop when it finds the first of the following:

• When an entry has 'alias' => 'parent_name', or
• When an entry has 'parent' => 'parent_name'

Note here that 'parent_name' is obtained by using getClassName() on the parent object as this can provide an alias name. An alias name which is defined in the Data Dictionary can also be used to provide a subclass with the same name.

If an entry is found it steps through the 'fields' array which equates a column name 'fldchild' in the child entity with a column name 'fldparent' in the parent entity and creates an entry in the output array with the name 'fldchild' and the value obtained from the parent's data with the name 'fldparent'.

If an entry is not found in the $parent_relations array then the default behaviour is to use the column names of the parent's primary key to populate the output array. It is then up to the child object to have the code necessary to convert the column names in the WHERE string.

Example #1:

This a simple parent-child relationship with a compound foreign key which produces the following metadata in the $parent_relations array for the child table:

$this->parent_relations[]   = array('parent' => 'parent_table',
                                    'fields' => array('foo_id' => 'bar_id',
                                                      'fubar_id' => 'snafu_id'));

When the primary key values are extracted from the parent table the result will be as follows:

bar_id='bar_id_value' AND snafu_id='snafu_id_value'

After being processed by the getForeignKeyValues() function it will look like the following:

foo_id='bar_id_value' AND fubar_id='snafu_id_value'

Example #2:

Here is an example from the MENU database where the MNU_TASK table has a primary key of task_id and the MNU_MENU table has two foreign keys, menu_id and task_id_jnr, which both relate back to task_id. The $parent_relations array for MNU_MENU contains the following:

$this->parent_relations[]   = array('parent' => 'mnu_task',
                                    'alias' => 'mnu_task_snr',
                                    'fields' => array('menu_id' => 'task_id'));

$this->parent_relations[]   = array('parent' => 'mnu_task',
                                    'alias' => 'mnu_task_jnr',
                                    'fields' => array('task_id_jnr' => 'task_id'));

Note here that in each of the relationships between MNU_TASK and MNU_MENU a different alias name is provided for the MNU_TASK table. This mechanism also requires that for each alias name a separate subclass be created with that name. This subclass extends the parent class and need not contain any code as its main purpose is to provide a different class name at runtime. It is also necessary to have a separate LIST2 task to show the data for each relationship, and for each of these tasks to use the correct alias name for its outer/parent entity. From a LIST1 task which shows records from the MNU_TASK table, a record with the primary key 'task_id'='foobar' is selected, then a navigation button is pressed in order to activate one of the aforementioned LIST2 tasks. Although both tasks have MNU_TASK as the outer/parent entity and MNU_MENU as the inner/child entity, the use of alias names for outer/parent will cause this function to produce different results

Example #2, task #1:

This task is designed to display, for a selected menu, all those child tasks which are options on that menu. It has the following component script:

<?php
$outer_table = 'mnu_task_snr';               // name of outer table
$inner_table = 'mnu_menu';                   // name of inner table
$screen      = 'mnu_menu.list2.screen.inc';  // file identifying screen structure
require 'std.list2.inc';                     // activate page controller
?>

Because the class name of the parent is given as "mnu_task_snr" this will be matched with the first of the $parent_relations entries shown above. This will cause the value task_id = xxx in the parent's data to be converted to menu_id = xxx before it is passed to the child object.

Example #2, task #2:

This task is designed to display, for a selected task, all those menu tasks for which this task is an option. It has the following component script:

<?php
$outer_table = 'mnu_task_jnr';               // name of outer table
$inner_table = 'mnu_menu_snr';               // name of inner table
$screen      = 'mnu_menu.list2.screen.inc';  // file identifying screen structure
require 'std.list2.inc';                     // activate page controller
?>

Because the class name of the parent is given as "mnu_task_jnr" this will be matched with the second of the $parent_relations entries shown above. This will cause the value task_id = xxx in the parent's data to be converted to task_id_jnr = xxx before it is passed to the child object.

Generate PHP component scripts

As well as being able to generate the table classes from the Data Dictionary, it is now possible to generate the PHP scripts which use these table classes so that the user can view and maintain the contents of these database tables. This is achieved in the following steps:

1. Within the Data Dictionary select a table from an application database.
2. Use screen Generate PHP scripts (a) to select the required transaction pattern.
3. Use screen Generate PHP scripts (b) to enter details which are specific to the selected pattern.

This procedure will generate the following:

• The component script which identifies the Model, View and Controller which will be used to perform the necessary function.
• The screen structure script which identifies the fields which are to be displayed.
• The MNU_TASK entry which identifies the transaction (task) to the Menu and Security system

If the selected pattern is the parent in a family of forms this procedure will also generate a MNU_TASK entry for each of its children as well as adding them to the navigation bar of the parent form. If it is a LIST1 pattern it will also be added as an item to that subsystem's main menu.

This feature now means that starting with nothing more than the schema for an application database it is possible to import that database schema into the Radicore framework then generate all the components necessary to maintain each of those database tables without writing a single line of code. These generated components may be basic in their construction, but they are fully functional. They may be modified afterwards for cosmetic reasons, or to add in additional business rules. Once generated these files cannot be regenerated, so any modifications cannot be accidentally overwritten.

This capability is explained in Radicore for PHP - Tutorial and this video.

References

This Data Dictionary is not a stand-alone product. It is an integral part of the following:

• A Development Infrastructure for PHP
• A Role-Based Access Control (RBAC) system for PHP
• User Guide to the Menu and Security (RBAC) System
• The Model-View-Controller (MVC) Design Pattern for PHP
• An activity based Workflow Engine for PHP
• Creating an Audit Log with an online viewing facility

Amendment History
