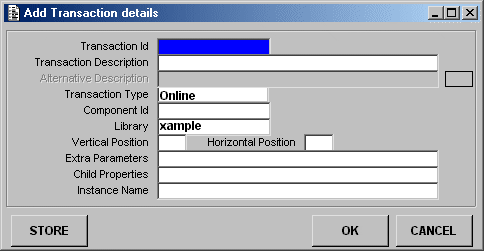

MNU_0030C - Create Transaction


This will allow the system administrator to add a new entry to the MNU_TRAN table.

info_symbol.gif Initial values may be defined using screen MNU_0080M.

Transaction ID Required, must be unique.
Transaction Description Required, free form.
Alternative Description Foreign language equivalent, using the language code to the right. Only available if the user's language differs from the system default language as defined using MNU_0070U. See Appendix F for details.
Transaction Type Required. Choices are as follows:-
  • Online - this is an application form.
  • Menu - not a form, look for entries on the MNU-CONTENTS table.
Component ID Optional. Refer to Appendix E for details.
Library For menu transactions this may be left blank, otherwise it must be the same as the library defined within the component. This is used to obtain the text for messages, button labels and field labels.
Vertical Position Optional. The starting co-ordinate for this form when it is activated, given in character cells from the upper left corner of the application window.
Horizontal Position Optional. The starting co-ordinate for this form when it is activated, given in character cells from the upper left corner of the application window.
Extra Parameters Optional. Refer to Appendix B for details.
Child Properties Optional. Refer to Appendix C for details.
Instance Name Optional. Refer to Appendix D for details.

BUTTONS

Store Update the database; clear the screen ready for new input.
OK Update the database and return to the parent form.
Cancel Exit without updating the database.
