wf_case(enq) - Enquire Workflow Case

wf-case(enq) (8K)

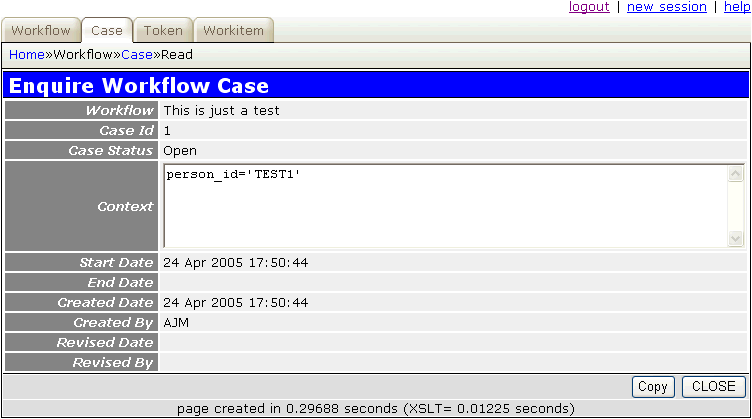

The purpose of this function is to allow the user to view the details of entries on the CASE table.

This form is accessed by selecting entries in the List Workflow Case screen before pressing the 'READ' button in the navigation bar.

For a complete description of how this type of form works please see Transaction Pattern ENQUIRE 1.

Field List
Field NameTypeDescription
Workflow ID NUMERIC This points to an entry on the WORKFLOW table.
Case ID NUMERIC This points to an entry on the CASE table.
Case Status STRING Possible options are:
  • OP - Open
  • CL - Closed
  • SU - Suspended
  • CA - Cancelled
Context STRING The primary key of the database entry which initiated this case.
Start Date DATE+TIME The date on which this case was opened.
End Date DATE+TIME The date on which this case was closed.
