For an overview of Multi-Purpose forms please go here.

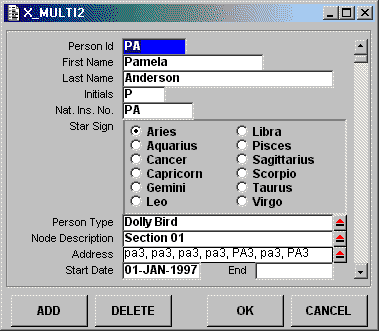

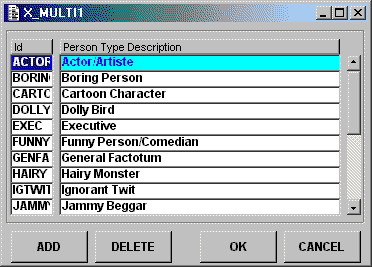

Access to this function would normally be restricted to senior users or supervisors. Everyday users would be limited to read-only access via a popup (X_POP1).

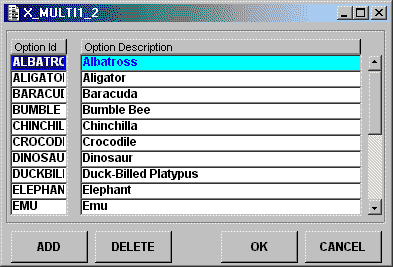

Access to this function would normally be restricted to senior users or supervisors. Everyday users would be limited to read-only access via a popup (X_POP1_2).

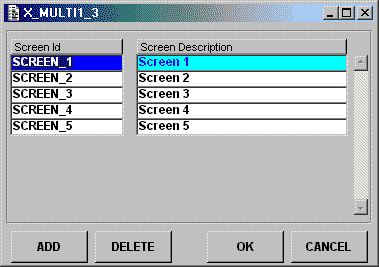

Access to this function would normally be restricted to senior users or supervisors. Everyday users would be limited to read-only access via a popup (X_POP1_3).
This is rather cumbersome, and access to the ADD and DELETE operations cannot be turned off for individual users. My preferred choice would be to access single-function components through a LIST form (like X_LIST1).
Note that an occurrence of SCREEN must be pre-selected in the parent form.
Note that an occurrence of OPTION must be pre-selected in the parent form.

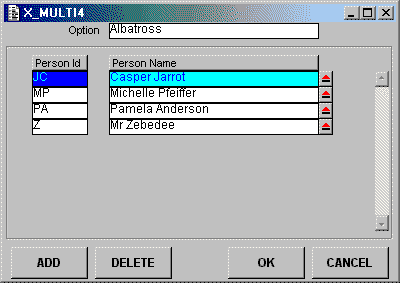

The body of the screen shows those occurrences of PERSON which have been linked to the OPTION occurrence. When the ADD button is pressed a person must be selected from a popup screen (X_POP2). An occurrence of PERSON cannot be linked to more than once to an occurrence of OPTION.

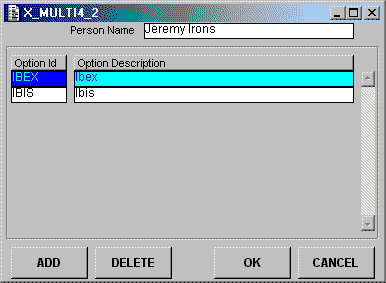

Note that an occurrence of PERSON must be pre-selected in the parent form.
The body of the screen shows those occurrences of OPTION which have been linked to the PERSON occurrence. An occurrence of OPTION cannot be linked more than once.

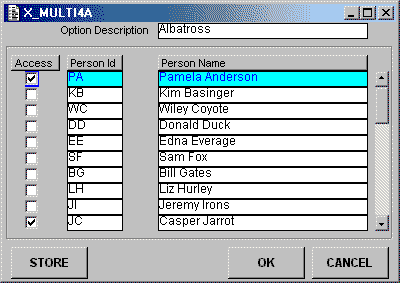

Note than an occurrence of OPTION must be pre-selected in the parent form.
The body of the screen shows all occurrences of PERSON, with the checkbox indicating if an occurrence of PERS_OPT_XREF exists or not for this combination of OPTION and PERSON. This occurrence of PERS_OPT_XREF can be created or deleted just by toggling the checkbox ON or OFF.

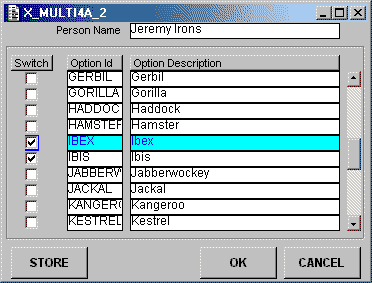

Note than an occurrence of PERSON must be pre-selected in the parent form.
The body of the screen shows all occurrences of OPTION, with the checkbox indicating if an occurrence of PERS_OPT_XREF exists or not for this combination of OPTION and PERSON. This occurrence of PERS_OPT_XREF can be created or deleted just by toggling the checkbox ON or OFF.

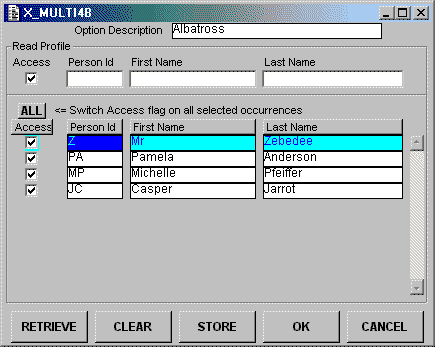

Note than an occurrence of OPTION must be pre-selected in the parent form.
Upon initial entry the body of the screen will show only those occurrences of PERSON which have an associated entry on PERS_OPT_XREF. This is indicated by the checkbox being turned ON. Different combinations of data can be retrieved by using the profile area.
The ALL button will allow the checkbox setting of all currently displayed entries to be toggled with a single stroke.
Note than an occurrence of PERSON must be pre-selected in the parent form.
Upon initial entry the body of the screen will show only those occurrences of OPTION which have an associated entry on PERS_OPT_XREF. This is indicated by the checkbox being turned ON. Different combinations of data can be retrieved by using the profile area.
The ALL button will allow the checkbox setting of all currently displayed entries to be toggled with a single stroke.

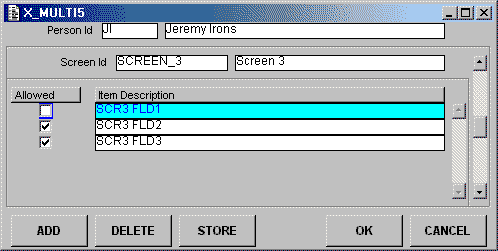

Note than an occurrence of PERSON must be pre-selected in the parent form.
The body of the screen shows those occurrences of SCREEN where access to individual occurrences of SCREEN_ITEM has be turned ON or OFF. By default all access is ON, and unless at least one checkbox is turned OFF there is no need for an occurrence of SCREEN_ITEM_ACC to exist.
When the ADD button is pressed a screen must be selected from a popup screen (X_POP1_3).

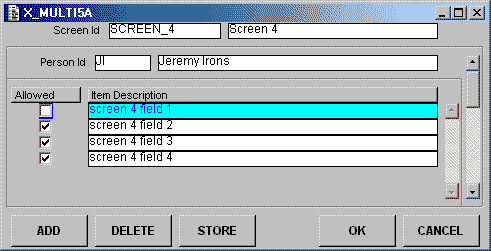

Note than an occurrence of SCREEN must be pre-selected in the parent form.
The body of the screen shows those occurrences of PERSON where access to individual occurrences of SCREEN_ITEM has be turned ON or OFF. By default all access is ON, and unless at least one checkbox is turned OFF there is no need for an occurrence of SCREEN_ITEM_ACC to exist.
When the ADD button is pressed a person must be selected from a popup screen (X_POP2).
 |
