Using XSL and XML to generate dynamic web pages from UNIFACE

Tony Marston - 8th January 2003
amended 1st February 2003


1. Introduction

The method of generating a web page from a UNIFACE application has traditionally been to use the WEBGEN and WEBGET statements from within a UNIFACE Server Page (USP).

This particular method has the following drawbacks:

I have personally witnessed how much time can be wasted in tracking down a bug in a web page caused by an HTML tag being somehow misplaced between the time it was inserted into the UNIFACE component and the time the actual web page was generated. Too many decisions appeared to have been made 'behind the scenes' about which the developer had no knowledge and over which the developer had no control.

A more modern approach would be to use a combination of XML and XSL in order to generate HTML documents. The advantages are as follows:

2. How the internet works

Here is a brief overview of how the internet works. A web browser running on a client device (such as a PC) communicates to a web server on a remote server device via the internet, or World Wide Web, using the Hyper Text Transfer Protocol (HTTP). The client sends a REQUEST, the server receives it, processes it, then sends back a RESPONSE.

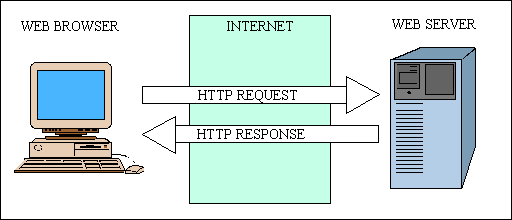

Figure 1 - The Internet in a nutshell


2.1. The HTTP Request

The HTTP Request is sent from the client to the server. It consists of 3 parts:

2.2. The HTTP Response

The HTTP Response is sent from the server to the client. It consists of 3 parts:

As you can see from the HTTP response the language in which your web site is written is totally irrelevant as what is returned to the client is nothing more than a text file containing HTML tags and data. You can use any language, or combination of languages, that takes your fancy provided that the output is an HTML document.

2.3. A sample HTML document

Here is a sample HTML document:

<html>
<head>
   <title>This is the document title</title>
   <link rel="stylesheet" type="text/css" href="style.css">
</head>
<body>
   <p>This is a paragraph...</p>
   <table width="100%">
      <tr>
         <td>This is a table cell</td>
         <td>This is another table cell</td>
      </tr>
   </table>
</body>
</html>

Within an HTML document there are a predefined set of tags which have predefined meanings which should be interpreted in a predefined way by whatever browser is running on the client. Be aware that some browsers may use additional 'extensions' to the HTML standard that may not be rendered correctly, if at all, in a different browser.

An HTML document contains tags, processing instructions and data, such as:

There are numerous other tags with other meanings, but if you want to know more I suggest you visit w3schools.com for a brief tutorial.


3. The XML/XSL method

With this method an XML file contains nothing but data, while an XSL file contains processing instructions to transform that file into another document. This could be another XML file, an HTML document, a Microsoft WORD document, an Adobe PDF document, or any type of text-based document that you choose.

3.1. A sample XML document

Here is a sample XML document:

<?xml version='1.0' ?>
<!-- Created by UNIFACE - (C) Compuware Corporation -->
<UNIFACE release="7.2.06.2(u-s602r1l)" xmlengine="1.0">
<TABLE xmlns:USOURCE="USOURCE.DICT">
<OCC>
<USOURCE:UTIMESTAMP>1999-06-19T19:02:53</USOURCE:UTIMESTAMP>
<USOURCE:USUB>M</USOURCE:USUB>
<USOURCE:UVAR>USYS</USOURCE:UVAR>
<USOURCE:ULABEL>M_90001</USOURCE:ULABEL>
<USOURCE:ULAN>USA</USOURCE:ULAN>
<USOURCE:MSGTYPE>M</USOURCE:MSGTYPE>
<USOURCE:UDESCR>STORE</USOURCE:UDESCR>
<USOURCE:UCONFIRM>F</USOURCE:UCONFIRM>
<USOURCE:UAUDIO>0</USOURCE:UAUDIO>
<USOURCE:UTEXT>90001: STORE failed - see Message Frame for more details</USOURCE:UTEXT>
</OCC>
<OCC>
<USOURCE:UTIMESTAMP>1999-06-19T19:07:31</USOURCE:UTIMESTAMP>
<USOURCE:USUB>M</USOURCE:USUB>
<USOURCE:UVAR>USYS</USOURCE:UVAR>
<USOURCE:ULABEL>M_90002</USOURCE:ULABEL>
<USOURCE:ULAN>USA</USOURCE:ULAN>
<USOURCE:MSGTYPE>M</USOURCE:MSGTYPE>
<USOURCE:UDESCR>STORE</USOURCE:UDESCR>
<USOURCE:UCONFIRM>F</USOURCE:UCONFIRM>
<USOURCE:UAUDIO>0</USOURCE:UAUDIO>
<USOURCE:UTEXT>90002: STORE successful</USOURCE:UTEXT>
</OCC>
</TABLE>
</UNIFACE>

The only entry that MUST be contained in an XML document is the <?xml version='1.0' ?> which identifies it as an XML document, with the XML version number. All the others are user-defined, but they must adhere to the following rules:

If you want to know more about XML I suggest you visit w3schools.com for a brief tutorial.

3.2. A sample XSL document

Here is a sample XSL document:

<?xml version='1.0'?> (1)
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0"
                xmlns:USOURCE="USOURCE.DICT"> (2)

<xsl:template match="/"> (3)

  <html>
  <head>
      <title>Contents of Message File</title>
  </head>

  <body>
    <table border="1">
      <thead>
        <tr><th>Library</th><th>ID</th><th>Message</th></tr>
      </thead>

      <tfoot>
        <tr><th colspan="3">end of messages</th></tr>
      </tfoot>

      <xsl:apply-templates select="UNIFACE/TABLE/OCC[USOURCE:UVAR]"/> (4)

    </table>
  </body>
  </html>

</xsl:template> (5)

<xsl:template match="UNIFACE/TABLE/OCC[USOURCE:UVAR]"> (6)
  <tr>
     <td><xsl:value-of select="USOURCE:UVAR"/></td> (7)
     <td><xsl:value-of select="USOURCE:ULABEL"/></td>
     <td><xsl:value-of select="USOURCE:UTEXT"/></td>
  </tr>
</xsl:template> (8)

</xsl:stylesheet> (9)

Here is an explanation of its components. Note that those tags that are prefixed with xsl: are XSL instructions; the remainder you should recognise as standard HTML tags.

If you want to know more about XSL and XSL Transformations I suggest you visit w3schools.com for a brief tutorial.

3.3. Performing an XSL Transformation

There are actually two ways in which an XML document can be transformed by an XSL document:

When a transformation takes place the same XSL file will perform different actions depending on what data is available. This can come from 3 sources:

There is one important factor to note about this method of producing web pages - you do not have to wait until the programs that generate the XML data have actually been written before you can develop and test your XSL scripts. XML files are text files, therefore files with sample data can easily be constructed using any text editor. The only proviso is that your software generates XML files with the same structure and naming conventions as your test samples.

3.4. Transforming within UNIFACE

This is how the XML/XSL transformation process can be incorporated into a UNIFACE Server Page (USP) component:

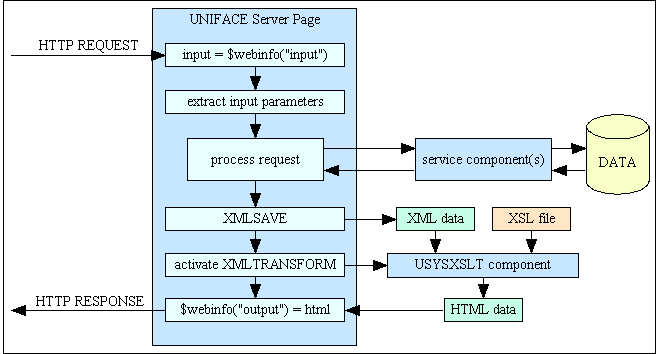

Figure 2 - XSL Transformation within UNIFACE


The processing flow is as follows:

  1. The HTTP request is extracted using the $webinfo("input") command. Note that I do not use the webget command as this automatically reconnects occurrences to the database. You should be using the 3-Tier architecture for your web application, in which case no Presentation Layer component (such as a Server Page) should communicate directly with the database. This should be done indirectly through a service component in the Business Layer.
  2. Information is extracted from the $webinfo string and inserted into the component. As this is returned in the form of an associative list this should be a straightforward task.
  3. The request is processed. This may mean activating operations on one or more service components in order to read from or write to the database. Data and/or error messages may be returned.
  4. The contents of the component is saved to an XML stream by using the XMLSAVE command. This builds the XML stream (a single text string) using the structure defined in a DTD (Document Type Definition). This may also use optional mapping parameters to resolve any differences between entity and field names between the component and the DTD. Note that at present UNIFACE does not support the inclusion of user-defined attributes with values that are supplied at runtime. Such attributes will have to be inserted by editing the XMLSAVE output string.
  5. The XMLTRANSFORM operation of the USYSXSLT component is activated. This uses the Xalan XSLT Processor from the Apache Software Foundation. It will take the XML data from step (4), the contents of an external XSL file and produce a string containing an HTML document.
  6. The $webinfo("output") command will then pass the HTML document to the client's browser.

Optional 'cookie' data can be retrieved using the $webinfo("cookiesin") command and set by the $webinfo("cookiesout") command.


4. Summary

I hope that in this article I have clearly demonstrated two things:

I am aware that the sample XML and XSL documents used in this article may not convince you that this method is actually capable of producing sophisticated dynamic web pages that are essential in a typical web site, so I have written a follow-up article showing what I have been able to produce in my own tests using PHP and MySQL running under the Apache web server. This article is available at 'Generating dynamic web pages using XSL and XML'.


Tony Marston
8th January 2003

mailto:tony@tonymarston.net
mailto:TonyMarston@hotmail.com
http://www.tonymarston.net

Amendment history:

1st Feb 2003 Amemded summary to inlude link to follow-up article 'Generating dynamic web pages using XSL and XML'.
