How to Integrate Application Subsystems
with the Menu and Security System


Author:A J Marston
Date Created:March, 1988
Date Revised:February, 1993
Version:01.010.010

CONTENTS

APPENDICES


1. Introduction

This Menu and Security system is used as the standard front-end for all new developments that need to be controlled by an online menu. Other documentation is available in the following manuals:-

The purpose of this manual is to describe the procedures that are to be followed when developing a new application system so that it can be fully integrated with the Menu and Security system in order to take full advantage of the numerous facilities that are available. As our preferred development language is COBOL it is assumed that all development personnel are familiar with the following documents:-


2. System Overview Diagrams

2.1 The MENU program with an Application Son Program

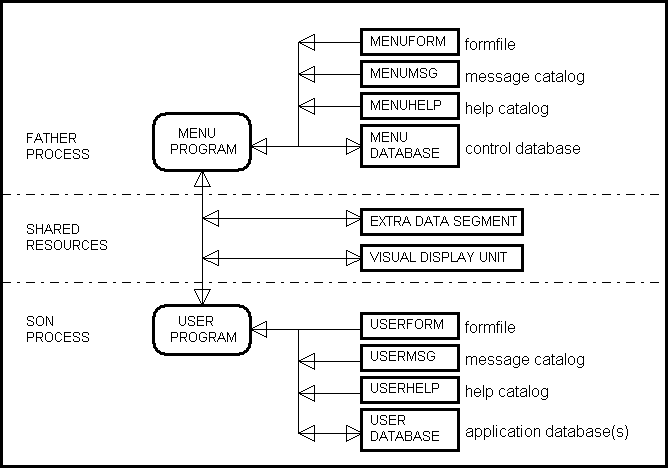

Figure 2.1 shows the file structure of an application that has been built into the MENU program. The most important feature is that the MENU and the application are contained in separate program files, and each program file accesses its own VPLUS forms file, message catalog, help catalog, and IMAGE database(s).

The reasons for keeping these files separate are as follows:-

  1. A file which is part of the Menu (father) process can be updated without affecting the Application (son) process, and vice versa.
  2. It is impossible for a single process to have more than one forms file open at the same time, and to repeatedly switch from one to the other without causing problems with the stack area.
  3. It is possible to have more than one son process built into the same menu. This may be for one of the following reasons:-
  4. It is possible for each program to have its own version number. The MENU version number is displayed on the logon screen, whereas the Application version number can be displayed on every screen within that Application.

The MENU program contains the code to process the logon screen, all menu screens, jobstreams, MPE commands, the transactions that maintain the contents of the MENU database, and to pass control to the application program should a module within that file be requested. The User program file contains all the application subprograms. These are controlled by a `dummy' front-end program called MENUSON, which handles all communications with the Menu (father) process by means of an extra data segment (XDS). An XDS is a method of passing data between processes without the overhead of any disk I/O's.

The VDU (Visual Display Unit) is also a shared device. It is not opened/closed by each process as that process takes control as this would be a considerable overhead. Any possible problems are avoided as only one process at a time will be active, therefore only one process at a time will be reading/writing to the VDU.

The MENU database is not opened by any son process as multiple opens in the same session could lead to problems. It is therefore impossible for any application module to access the MENU database directly. Where any such accesses are required a utility routine will be available which will instruct the father process to perform the access and pass the results back via the extra data segment. These utilities are described in Library of Standard Utilities - Accessing the MENU database.

Figure 2.1 - The MENU father and Application son processes

menu-int-01 (17K)


2.2 How the MENUSON program works

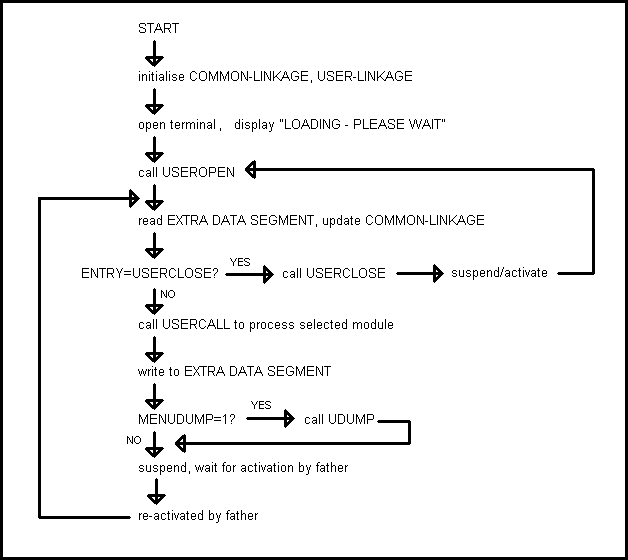

Figure 2.2 shows the processing flow of the MENUSON program. This is a relatively small and simple program as all it does is pass control between the MENU program and the application subprograms. It contains calls to the following subprograms:-

USEROPENTo initialise USER-LINKAGE and open the application files
USERCALLTo pass control to the selected application subprogram
USERCLOSETo close the application files
UDUMPTo print the contents of USER-LINKAGE

Skeleton versions of the USERxxxx subprograms are supplied with the MENU software, and have to be tailored for each individual application. More detailed descriptions are contained in later sections within this document.

UDUMP is a standard utility that will be called if a jcw (job control word) with the name of MENUDUMP is set with a non-zero value. This is a debugging aid that will dump the contents of USER-LINKAGE to a printfile named LINKDUMP after each application module exits and before control is passed back to the MENU program. This facility should be used in the development environment only.

All of the above subprograms are called with the following:

CALL "<name>" USING COMMON-LINKAGE, < universal >
                    USER-LINKAGE.   < application dependent >

When the son process is first created within a user's session (when the first application module is selected) there will be a short delay while all the necessary files are opened. As each module exits it will leave the files open, and the MENUSON program will hold itself in a suspended state so that when reactivated by the MENU (father) process it can satisfy the next request almost as quickly as if the subprogram were called directly from within the Menu program.

If the user returns to the logon screen the USERCLOSE routine will be called to close the application files, but the process will remain in a suspended state with the terminal left open.

Figure 2.2 - Process flow within the MENUSON program

menu-int-02 (4K)


3. System Setup

3.1 Structure of the Development Account

Before this system can be loaded the appropriate account and groups must be defined on the system:

  1. The system manager needs to create the account as follows:
    NEWACCT accountname,MGR;CAP=AM,AL,GL,ND,SF,IA,BA,LG,PH,DS
                       ;ACCESS=(R,X:ANY;W,A,L:AC)

  2. Logon as account manager and create these groups:
    NEWGROUP PROG;CAP=IA,BA,PH,DS;ACCESS=(R,W,A,L,S,X:ANY)
    NEWGROUP DATA;CAP=IA,BA,LG;ACCESS=(R,W,A,L,S,X:ANY)
    NEWGROUP FORMS;ACCESS=(R,W,A,L,S,X:ANY)
    NEWGROUP LIB;ACCESS=(R,W,A,L,S,X:ANY)
    NEWGROUP SOURCE;ACCESS=(R,W,A,L,S,X:ANY)
    NEWGROUP JOB;ACCESS=(R,W,A,L,S,X:ANY)
    NEWGROUP USL;ACCESS=(R,W,A,L,S,X:ANY)
    NEWGROUP COMPILE;ACCESS=(R,W,A,L,S,X:ANY)
    NEWGROUP QUERYXEQ;ACCESS=(R,W,A,L,S,X:ANY)

    Those of you involved in Native Mode development will need the following additional groups:
    NMPROG 	- replaces the PROG group
    NMLIB  	- replaces the LIB group
    NMOBJ 	 - replaces the USL group

    Alternatively these groups can be created by the FIJI jobstream MENUIMP.PUB.STANDARD, which will also copy all the relevant files into these groups.
  3. A group and user-id will also be needed for all the programmers who are going to be working on the system:-
    NEWGROUP name;CAP=IA,BA,PH,DS;ACCESS=(R,W,A,L,S,X:ANY)
    NEWUSER name;HOME=group;CAP=IA,BA,ND,SF,PH,DS


3.2 Description of Development Groups

The groups in each development account are for the following purposes:

COMPILEContains jobstreams to compile either individual units within the system, or the entire system
DATAContains the application database(s), and other data files
FORMSContains the application form file (slow and fast versions).
JOBContains jobstreams to create the message and help catalogs, and other general-purpose jobstreams
LIBContains the copy library and macro file for developing software according to the company standards
PROGContains runnable program files, as well as the message and help catalogs
SOURCEContains all the application source code and copy libraries
USLContains the output files generated by the compiler which are used to create the runnable program files
<name>A development group used as the programmer's work area. All software should be developed in a programmer's group and not transferred to the SOURCE group until it is complete

The following groups are for Native Mode development:

NMLIBinstead of the LIB group
NMOBJinstead of the USL group
NMPROGinstead of the PROG group

These groups can either be in addition to the other groups, to allow concurrent development in both Compatibility and Native Mode, or as replacements for the other groups if development is in Native Mode only. It should be possible to take the same application source code and compile it in either Mode without amendment - any slight changes required by the different versions of the COBOL compiler have been isolated to the standard copy library and macro files.


3.3 List of Files to be copied

The following files will need to be copied from the STANDARD account into the corresponding groups of your development account:

3.3.1 Compatability Mode

These files are required for Compatibility Mode development:

STANDARD.LIBstandard copy library (COMAREA)
STDCAT.LIBstandard message catalog (sets 1 and 2)
STDHELP.LIBstandard help catalog
STDMACRO.LIBstandard macro file for use with COBOL85

MENUSON.USLapplication system driver program

COMPALL.JOBcompile all batch/online programs
USERPREP.JOBbuild application program
USERHELP.JOBbuild application help catalog
USERCAT.JOBbuild application message catalog
SLPROG.JOBbuild SL.PROG
SLPUB.JOBbuild SL.PUB

MENU.PROGmenu program
MENUSON.PROGmenu son program (skeleton)
MENUMSG.PROGcompiled menu message catalog
MENUHELP.PROGcompiled menu help catalog
MENUSHUT.PROGshutdown program (online)
MENUDOWN.PROGshutdown program (batch)
SL.PROGsegmented library file
MENUCF.PROGamend command file (batch)
MENULOAD.PROGload data onto menu database (batch)
FIJIINFO.PROGFIJI interface program

3.3.2 Native Mode

These files are required for Native Mode development:

STANDARD.NMLIBstandard copy library (COMAREA)
STDMACRO.NMLIBstandard macro file for use with COBOL85

MENUSON.NMOBJapplication system driver program
STDRL.NMOBJlibrary of standard subroutines

NMALL.JOBcompile all batch/online programs
NMPREP.JOBbuild application program
NMHELP.JOBbuild application help catalog
NMCAT.JOBbuild application message catalog
NMXL.JOBbuild CLOSERL.NMOBJ, CLOSEXL.NMPROG and XL.NMPROG

MENU.NMPROGmenu program
MENUSON.NMPROGmenu son program (skeleton)
MENUMSG.NMPROGcompiled menu message catalog
MENUHELP.PROGcompiled menu help catalog
MENUSHUT.NMPROGshutdown program (online)
MENUDOWN.NMPROGshutdown program (batch)
STDXL.NMPROGrun-time library file
MENUCF.NMPROGamend command file (batch)
MENULOAD.NMPROGload data onto menu database (batch)
FIJIINFO.NMPROGFIJI interface program

3.3.3 Common Files

These files are common to both Compatibility Mode and Native Mode development:

STDCAT.LIBstandard message catalog (sets 1 and 2)
STDHELP.LIBstandard help catalog
XXXMACRO.LIBskeleton application macro file (where `XXX' should be set to your application nmemonic)

MENUFAST.FORMSmenu formfile
USERFORM.FORMSskeleton application formfile (contains forms HEAD, HELP, HELPD and VERSION)

COPYLIB.SOURCEskeleton application copy library
USERCAT.SOURCEskeleton application message catalog
USERHELP.SOURCEskeleton application help catalog
USEROPEN.SOURCEskeleton subprogram to open user files
USERCALL.SOURCEskeleton subprogram to call other modules
USERCLOS.SOURCEskeleton subprogram to close user files
UDUMMY.SOURCEskeleton subprogram to provide dummy entrypoints

MENUSC.DATAcontrol database schema

LIVECOMP.COMPILEsample job for `live' compilations
TESTCOMP.COMPILEsample job for `test' compilations

@.QUERYXEQcommands to list contents of MENU database

All jobstreams will need to be amended to log in to the correct account. Note that the FIJI job MENUIMP.PUB.STANDARD will automatically copy all files and amend all jobstreams.

If your application is going to interface with CODA-IAS there are some additional files, but these are explained in section 10 Integration with CODA-IAS.


3.4 Initialisation of the MENU database

No control database is included in the list of files to be copied from the STANDARD account, just the IMAGE schema. The database must be created and initialised for your application as follows:-

  1. Logon to the DATA group and do the following:
    FILE DBSTEXT=MENUSC
    FILE DBSLIST;DEV=LP
    RUN DBSCHEMA.PUB.SYS;PARM=3
    RUN DBUTIL.PUB.SYS,CREATE
    >PROMEN
    >EXIT

  2. Run MENU.PROG - this will detect that no record currently exists for company "00" and will invoke the initialisation routine which has the following dialogue:
    - Stand by to initialise the menu database !!
    - Enter 8 character identity of Super User  : <enter identity>
    - Enter 20 character name for Super User    : <enter name>
    - Enter 8 character password for Super User : <enter password>

  3. This routine will then add records to the database to allow access to the menu maintenance transactions. Once this is complete the logon screen will be displayed - enter the identity and password from above and the first menu screen will be displayed. You may now use the maintenance transactions to define the application on the menu database.
  4. The following is a sample UDC/Command File that may be used to run the menu:
    if (hpcidepth > 1) then
      echo You are not at CI depth level 1
      exit
    endif
    SETJCW JCW=0
    CONTINUE
    RUN MENU.PROG
    SHOWTIME
    IF JCW>0 THEN
      SHOWJCW
      SET ECHO=ON
    ENDIF


4. Creating Application Files

4.1 Application Forms

A form file for your application is provided as USERFORM.FORMS, which contains the following forms:

This should be renamed as "xxxFORM" where "xxx" is the mnemonic that has been given to your particular application. All new forms should be initially copied from HEAD in order to provide the two fields that will be required in each form as the standard screen heading.

Appendix A1 shows a sample jobstream that should be used to compile this form file into a `fast' form file.


4.2 Application Message Catalog

The message catalog holds lines of text that can be used for all window messages and function key labels. Application programs simply supply a message number and the standard utility software retrieves the relevant text from the catalog.

This facility allows text to be modified by changing the contents of the catalog instead of any program code. This is especially useful if an application needs to be supplied in different languages - the software remains the same, just the message catalog is different.

A sample message catalog is provided in USERCAT.SOURCE, which can be modified using any text editor. Before this can be used by the online system it must be compiled using the sample jobstream as shown in Appendix A2. Note that this job merges the application catalog with the contents of STDCAT.LIB - this is the message catalog used by the menu system itself, and contains messages that are used by the various standard utilities.

The messages within a particular catalog are divided into sets, where each set has a unique two-digit number which must be defined in ascending sequence. Individual numbers may be omitted, but should not be duplicated or defined out of sequence. As sets 1 and 2 have already been defined in STDCAT.LIB all application messages should start from set 3. If the application is comprised of several subsystems it may be advisable to allocate a different set number for each subsystem.

The messages within a particular set are identified by a four-digit number which must be defined in ascending sequence. Individual numbers may be omitted, but should not be duplicated (within the set) or defined out of sequence. It is advisable to define the message numbers in increments of 10 so that there are spare numbers available in case a new message that is similar to an existing message needs to be added at a future date.

Note that each message line begins with the ":" character and may contain up to 5 "!" characters identifying parameter values that will be supplied at run-time. The length of each supplied value must not exceed 40 characters. The length of the complete message should not exceed 72 characters otherwise it will be truncated.

Function key labels do not begin with the ":" character and must not include the "!" character. It is advised that the numbering sequence for these labels starts at a high value (eg: 5000) so that they are not intermingled with ordinary messages.


4.3 Application HELP Catalog

The help catalog holds pages of text that will be displayed on the screen whenever the function key labelled "HELP" is pressed. No special code is required in any application subprograms as the standard utility software takes care of everything.

A sample help catalog is provided in USERHELP.SOURCE, which can be modified using any text editor. Before this can be used by the online system it must be compiled using the sample jobstream as shown in Appendix A3.

Each page of text is identified by one of the following:-

This is an example of how the file should look:-

\ENTRY=trancode1
......< 1st page for trancode1 >
\ITEM=keyword1
......< 2nd page for trancode1 >
\ITEM=keyword2
......< 3rd page for trancode1 >
\ENTRY=trancode2
......< 1st page for trancode2 >
\ITEM=keyword1
......< 2nd page for trancode2 >
\ENTRY=trancode3
......< etc >

Please take note of the following rules:-

NOTE: If any help text is required for application transactions of type "ME" (menu) or "JS" (jobstream) it must be merged into the file being accessed by the Menu program itself (MENUHELP.PROG) as the application help catalog is only accessed when executing a transaction of type "SP" (subprogram).


5. Defining and Accessing User Files

5.1 USER-LINKAGE

All files which are to be used by the application must be defined in the USERLINK entry of copylibrary COPYLIB.SOURCE. Sample definitions for each type of file are explained below:

  1. database(s):
     03  <base>-BASE-NAME           PIC X(28).
     03  <base>-PASSWORD            PIC X(16).
     03  <base>-BASE-FLAG           PIC X(01).
         88  <base>-BASE-OPEN       VALUE "Y".
         88  <base>-BASE-CLOSED     VALUE "N"," ".
     03  <base>-BASE-LOG-FLAG       PIC X(01).
         88  <base>-BASE-LOGGING-ON VALUE "Y".
     03  F                          PIC XX.

  2. formfile:
     03  <form>-FORMFILE-NAME       PIC X(36).

  3. KSAM file(s):
     03  <ksam>-FILETABLE.
         05  <ksam>-FILENUMBER      PIC S9(4) COMP.
         05  <ksam>-FILENAME        PIC X(08).
         05  <ksam>-I-O-TYPE        PIC S9(4) COMP.
         05  <ksam>-ACCESS-MODE     PIC S9(4) COMP.
         05  <ksam>-PREV-OP         PIC S9(4) COMP.
     03  <ksam>-RECSIZE             PIC S9(4) COMP SYNC.
     03  <ksam>-FILE-FLAG           PIC X(02).
         88  <ksam>-FILE-OPEN       VALUE "Y".
         88  <ksam>-FILE-CLOSED     VALUE "N"," ".
     03  <ksam>-KEYLOC              PIC S9(4) COMP SYNC.
     03  <ksam>-KEYLEN              PIC S9(4) COMP SYNC.
     03  F                          PIC XX.


Each occurrence of <base>/<form>/<ksam> will be used as the prefix to a data item, therefore must be unique for each file type.

Initial values for these data items must be created using MOVE statements within the USEROPEN routine.

If additional data items need to be added to the USER-LINKAGE area during the life of the application they can be appended to the existing area without the need to recompile any existing programs.

NOTE: The total length of USER-LINKAGE must not exceed 1024 bytes.


5.2 USEROPEN

USEROPEN will be called by MENUSON immediately before the first application subprogram to be selected by the user. The skeleton version (included in the setup procedure) must be amended so that paragraph A-10-SETUP moves initial values into the USER-LINKAGE area, and paragraph A-20-OPEN actually opens the files, as in the following examples:

 A-10-SETUP.

* The application version number [will appear in every screen]
    MOVE "xx.xxx.xxx"            TO MENU-VERSION.

* Values for database <base> [note the 1st 2 characters are spaces]
    MOVE "  xxxDB.DATA"          TO <base>-BASE-NAME.
    MOVE "password"              TO <base>-PASSWORD.
    MOVE "N"                     TO <base>-BASE-FLAG.

* Identity of application formfile
    MOVE "xxxFAST.FORMS"         TO <form>-FORMFILE-NAME.

* Values for ksam file <ksam>
    MOVE "ksamname"              TO <ksam>-FILENAME.
    MOVE "N"                     TO <ksam>-FILE-FLAG.
    MOVE n                       TO <ksam>-I-O-TYPE.
    MOVE n                       TO <ksam>-ACCESS-MODE.

 A-20-OPEN.

* Open message catalog
    %OPENUSERMSG(A-20#,xxxMSG#).

* Open help catalog
    %OPENUSERHELP(A-20#,xxxHELP#).

* Open form file <form>
    %OPENUSERFORM(A-20#,<form>#).

* Open database <base>
    %DBOPEN(A-20#,<base>#).

* Open ksam file <ksam>
    %CKOPEN(A-20#,<ksam>#).
    or
    %CKOPENSHR(A-20#,<ksam>#).

5.3 USERCLOSE

USERCLOSE will be called automatically by MENUSON when the user returns to the Menu logon screen, or by the UERROR routine if any fatal errors are detected. The version (included in the setup procedure) must be amended so that paragraph A-10 closes each of the application files as follows:

 A-10.

* Close form file
    %VCLOSEFORM(A-10#).

* Close database <base>
    %DBCLOSE(<base>#).

* Close ksam file <ksam>
    %CKCLOSE(A-10#,<ksam>#).

* Close message catalog
    %CLOSEUSERMSG(A-10#).

NOTE: As UERROR contains a call to USERCLOSE there must be no code inside USERCLOSE that calls UERROR, otherwise a loop could occur.


6. Online Transactions

6.1 Defining on MENU database

Before any subprogram can be selected from the Menu system it must be defined as a transaction on the Menu database. To do this you must use the following transactions on menu MENU1:

  1. Define the transaction group for the application using MGR03. This must not be group "01" or "02" as these are already reserved for the menu system itself.
  2. Identify the files to be used by the application by using MGR11, where the command identity is "GPnn", where "nn" is the group number from (a). The entries required are as follows:
    FILE <userform>=<file.group>
    FILE <usermsg>=<file.group>
    FILE <userhelp>=<file.group>
    FILE <userbase>=<file.group>
    RUN <userprog.group>;LIB=G

    There should be one FILE statement for each file identified in the USEROPEN routine. The RUN statement identifies the program file which contains all the online subprograms for the application.
  3. Define each transaction using MGR04. The following fields will be required:
  4. Add each transaction to the relevant menu screen using MGR06.
  5. Add each transaction to the relevant user profiles using MGR07.

6.2 Defining in USERCALL

The MENUSON program will invoke a user module by calling the generic USERCALL routine which must therefore be amended to contain references to every module within the application. Each of the application subprograms will be invoked via a statement of the form:

CALL "entrypoint" USING COMMON-LINKAGE, USER-LINKAGE.

The skeleton USERCALL routine must therefore be amended to contain a separate CALL statement for each of these application subroutines, in the following places:

  1. CALL-TABLE in working storage:

    The entries in this table MUST be defined in alphabetic sequence, otherwise the SEARCH verb may not locate the entry.

    Do not forget to alter the number of entries on the OCCURS clause.

  2. Paragraph A-20-CALL:

    The "GO TO ..... DEPENDING ON" statement must be amended to include a paragraph name of the format "A-<entrypoint>", where entrypoint names must be defined in alphabetic sequence.

  3. Paragraph A-40-MODULES:

    Use the %CALLPROG(entrypoint#) macro for each entrypoint, again in alphabetic sequence.


6.3 Defining in UDUMMY

If an application module name is added to the list within USERCALL the resulting CALL statement will produce an UNRESOLVED PROG EXTERNAL error until such time as the module has been written and is available to be included within the PREP of the program file. As there is usually a time delay between a module being identified and the code being available this could cause a problem. One solution is to generate a dummy entrypoint which can be used until such time as the actual code is available - this is where UDUMMY comes in.

For each "%CALLPROG(module#)" statement within USERCALL there must be a corresponding "%CALLPROG(module#)" statement within UDUMMY - the difference being the definition of the %CALLPROG macro within the two subprograms:-

All that UDUMMY does (if called using any one of its entrypoints) is to load the following message into the window line:-

"020060:Transaction <name> (<entrypoint>) is unknown to system"

To avoid the problem of maintaining two separate lists of module names it is possible to keep a single list in a file which can be incorporated into both USERCALL and UDUMMY by means of an $INCLUDE statement. This file need contain nothing more than a simple list of %CALLPROG(module#) statements.

information (1K) In Native Mode development the UDUMMY module must reside only in file CLOSEXL.NMPROG, and not RL.NMOBJ or XL.NMPROG.
  In Compatibility Mode development it is not possible to include the UDUMMY module in either SL.group or SL.PUB as it would overwrite the actual entrypoint names, therefore its use is redundant.

6.4 Compatability Mode Development

6.4.1 Creating Test software

See Appendix A7 for an example of the jobstream which is required to compile an online program within a development group.

This compiles into temporary file $NEWPASS (which becomes $OLDPASS), then transfers all the relevant segments into file SL.<group>. There is no PREP statement to create a new program file.

The file COBCNTL.PUB.SYS is redirected to CMDEV.COBCNTL.SYS, which includes the BOUNDS option on the $CONTROL statement. This causes the compiler to generate extra code to check that any subscript / index / reference-modification is within bounds.

The COBOL statement includes the INFO string "$SET X1=ON", which has the following effect:


6.4.2 Running Test software

The menu command file entries for the transaction group which has been allocated to your application should be similar to the following:

$IF TEST=1
    FILE TRACER;DEV=LP,1
    RUN MENUSON.PROG;LIB=G;PARM=1;STDLIST=*TRACER
$ELSE
    RUN xxxPROG.PROG;LIB=G
$ENDIF

In order to access the software under test it is therefore necessary to set the jcw TEST to 1 before running the program. This forces the first of the two RUN statements to be used, which has the following effect:

  1. The "PARM=1" option will turn on the display statements contained within the %DEBUG macro.
  2. The "STDLIST=*TRACER" option will output these statements to a deferred spool file instead of the terminal. Note that any other display statements (eg: those produced by pressing the HELP function key) will also be directed to this deferred spool file.
  3. The MENUSON program will not call USERCALL to invoke the selected user module, instead it will use the "CALL <dataname>" construct which uses the LOADPROC intrinsic to load the selected module from an SL file whenever that module is selected. SL files will be examined in the following sequence:
    1. SL.<logon group>
    2. SL.PUB.<logon account>
    3. SL.PUB.SYS

The selected module must therefore exist in one of these SL files - as we do NOT allow changes to SL.PUB.SYS it must be one of the other two. If it exists in more than one file the first one encountered during a search will be used.

If the selected module contains calls to other routines (eg: UERROR, SAVINITFORM, or application routines) these must also reside in one of these SL files. You should also be aware that if the LOADPROC intrinsic cannot find what it is looking for in the first of these SL files it begins looking in the second and cannot return to the first SL file. Thus if module A is in file SL.group and module B is in file SL.PUB and module B contains a call to module A, the search will be unsuccessful and the LOADPROC will fail with the equivalent of an "UNRESOLVED PROG EXTERNAL <name>".

It is normal practice to build SL.PUB to contain all the standard utility modules plus all the available application modules using the sample jobstream in Appendix A6. Thus the SL file in the programmer's group need contain no more than the actual module(s) being tested.

Note that this version of SL.PUB is not delivered to the client as it is used for development purposes only.

If the software is run without jcw TEST being set to 1 then the second of the two RUN statements will be used. This will not be able to access any modules within the programmer's SL file.

If a module which does not exist in any of these SL files is selected the program will abort with the following messages:-

**** PROGRAM ERROR #18:
PROCESS QUIT .PARAM = 41  < loader error: procedure not found >

Summary of file usage:

1. MENUSON.PROGDriver program, with dummy USERCALL
2. SL.PROGUSEROPEN and USERCLOSE
3. SL.<group>Module(s) under development
4. SL.PUBAll application modules and standard utility routines (excluding USERCALL)

6.4.3 Creating Live program file

As soon as a programmer has completed a module the following steps should be taken:

  1. Transfer the source file to the SOURCE group and delete it from the programmer's group.
  2. Delete the module from the programmer's SL file.
  3. Compile the module (sample jobstream in Appendix A8) to create a file in the USL group. Note that this compilation uses a different COBCNTL file (which excludes the BOUNDS option), and does not set the compile-time switch X1 (which turns off any DEBUG statements).
  4. Add the module to file SL.PUB (sample jobstream in Appendix A6) to make the module available to other programmers when they test their software.
  5. Create a new version of the application program file using the sample jobstream in Appendix A4. This must be amended to include an AUXUSL/COPY statement for each module within the system. It may also include any NEWSEG statements to reduce the total number of segments, if required.

    Note that the file MENUSON.USL contains all the standard utilities so that the resulting program file can be run without the need for a separate run-time library. The only software that should reside in an SL file is third party software, eg: CODA-IAS routines.

  6. Add the module to jobstream COMPALL (sample in Appendix A18) in case the entire system needs to be recompiled (eg: following a change to the database).

6.5 Native Mode Development

6.5.1 Creating Test software

See Appendix A14 for an example of the jobstream which is required to compile an online program in a development group.

This compiles into temporary file $NEWPASS (which becomes $OLDPASS), then transfers the module into file XL.<group>. There is no LINK statement to create a new program file.

The file COBCNTL.PUB.SYS is redirected to NMDEV.COBCNTL.SYS, which includes the BOUNDS option on the $CONTROL statement. This causes the compiler to generate extra code to check that any subscript / index/ reference-modification is within bounds. This also uses the VALIDATE option to include extra code to check for illegal ASCII digits.

The COBOL statement includes the INFO string "$SET X1=ON", which has the following effect:


6.5.2 Running Test software

The menu command file entries for the transaction group which has been allocated to your application should be similar to the following:

$IF TEST=1
    FILE TRACER;DEV=LP,1
    RUN MENUSON.NMPROG;PARM=1;STDLIST=*TRACER:XL="XL.%group,XL,STDXL,CLOSEXL"
$ELSE
    RUN xxxPROG.NMPROG
$ENDIF

In order to access the software under test it is therefore necessary to set the jcw TEST to 1 before running the program. This forces the first of the two RUN statements to be used, which has the following effect:

  1. The "PARM=1" option will turn on the display statements contained within the %DEBUG macro.
  2. The "STDLIST=*TRACER" option will output these statements to a deferred spool file instead of the terminal. Note that any other display statements (eg: those produced by pressing the HELP function key) will also be directed to this deferred spool file.
  3. The MENUSON program will not call USERCALL to invoke the selected user module, instead it will use the "CALL <dataname>" construct which uses the LOADPROC intrinsic to load the selected module from an XL file whenever that module is selected. XL files will be examined in the sequence defined on the ";XL=" list parameter. If these file names do not include group and/or account names it will be assumed that these files reside in the same group and account as the program on the RUN statement. Note that the menu system will convert "%group" to the user's logon group.

The selected module must therefore exist in one of these XL files. If it exists in more than one file the first one encountered during a search will be used.

If the selected module contains calls to other routines (eg: UERROR, SAVINITFORM, or application routines) these must also reside in one of these XL files. You should also be aware that if the LOADPROC intrinsic cannot find what it is looking for in the first of these XL files it begins looking in the second, third, fourth, etc and cannot return to a previous XL file. Thus if module A is in file (1) and module B is in file (2), and module B contains a call to module A, the search will be unsuccessful and the LOADPROC will fail with the equivalent of an "UNRESOLVED PROG EXTERNAL <name>".

It is normal practice to build XL.NMPROG to contain all the available application modules using the sample jobstream in Appendix A13. File STDXL.NMPROG contains all the standard utility software. File CLOSEXL contains a copy of USERCLOSE and IASERROR as the call from UERROR to USERCLOSE cannot go back from file STDXL to file XL to be satisfied, and the call from USERCLOSE to IASERROR cannot go back from file CLOSEXL to file STDXL to be satisfied.

Thus the XL file in the programmer's group need contain no more than the actual module(s) being tested.

If the software is run without jcw TEST being set to 1 then the second of the two RUN statements will be used. This will not be able to access any modules within the programmer's XL file.

If a module which does not exist in any of these XL files is selected (including the dummy entrypoints in CLOSEXL) the program will abort with the following message:-

Dynamic loading unresolved external: (LDRERR 103)

Summary of file usage:

1. MENUSON.NMPROGDriver program
2. XL.<group>Module under development
3. XL.NMPROGRemainder of application modules (including USERCLOSE)
4. STDXL.NMPROGStandard utility routines (including UERROR, IASERROR)
5. CLOSEXL.NMPROGUSERCLOSE, IASERROR, UDUMMY

6.5.3 Creating Live program file

As soon as a programmer has completed a module the following steps should be taken:

  1. Transfer the source file to the SOURCE group and delete it from the programmer's group.
  2. Delete the module from the programmer's XL file.
  3. Compile the module (sample jobstream in Appendix A15) into the file RL in the NMOBJ group. Note that this compilation uses a different COBCNTL file (which excludes the BOUNDS and VALIDATE options, but includes the OPTIMIZE=1 option), and does not set the compile-time switch X1 (which turns off any DEBUG statements).
  4. Add the module to file XL.NMPROG (sample jobstream in Appendix A13) to make the module available to other programmers when they test their software.
  5. Create a new version of the application program file using the sample jobstream in Appendix A12. There is no need to amend this to specify the individual application modules as the entire contents of each RL file specified on the LINK statement will be included.

    The resulting program file will contain all application modules from file RL.NMOBJ and all standard utility routines from file STDRL.NMOBJ, therefore no additional XL files will be required at runtime (unless the application requires any third party routines, eg: IASLINK).

  6. Add the module to jobstream NMALL (sample in Appendix A19) in case the entire system needs to be recompiled (eg: following a change to the database).

7. Batch Transactions

7.1 Defining on MENU database

It is assumed that all batch programs will be called from jobstreams which are defined on the menu database, and not from data files which can be initiated by the STREAM command by anyone who has access to the MPE prompt.

In order to create a jobstream on the menu database the following transactions from menu MENU1 should be used:

  1. Use MGR03 to define the transaction group (not required if you are using the same group as the online transactions).
  2. Use MGR04 to define the transaction code. The transaction type must be set to "JS" (jobstream). If a scheduled start time is required the relevant details (eg: "IN=days,hours,minutes", "AT=hh:mm:ss") can be defined in the ENTRYPOINT field.
  3. Use MGR11 to define the jobstream on the menu command file, using the same statements as required in an ordinary ASCII file (ie: the first line must be "!JOB" and the last line must be "!EOJ". It is possible for certain parameter values to be inserted into the jobstream before it is streamed - these are documented fully in the MENU Functional Specification.
  4. Use MGR06 to add the transaction to the relevant menu screens.
  5. Use MGR07 to add the transaction to the relevant user profiles.

7.2 Compatability Mode Development

7.2.1 Creating Test program

See Appendix A9 for an example of the jobstream which is required to compile a batch program within a development group.

This compiles into temporary file $NEWPASS (which becomes $OLDPASS), then creates a program file which can be initiated by a RUN command. Note that the program must be run with the ;LIB=G parameter in order to satisfy any calls to external subroutines. These are not included with the RL= parameter on the PREP statement due to the fact that all routines extracted from the library file would be merged into a single segment, and if the size limit for a single segment were to be exceeded the prep would fail.

The file COBCNTL.PUB.SYS is redirected to CMDEV.COBCNTL.SYS, which includes the BOUNDS option on the $CONTROL statement. This causes the compiler to generate extra code to check that any subscript / index / reference-modification is within bounds.

The COBOL statement includes the INFO string $SET X1=ON, which has the following effect:

The RUN command within the menu command file should refer to the program file within the programmer's group, with the ";PARM=1" option if required.


7.2.2 Creating Live program

As soon as a programmer has completed a batch program the following steps should be taken:

  1. Transfer the source file to the SOURCE group and delete it from the programmer's group.
  2. Delete the program file from the programmer's group.
  3. Compile the source (sample jobstream in Appendix A10) to create a file in the USL group which is then prepped into the PROG group. Note that this compilation uses a different COBCNTL file (which excludes the BOUNDS option), and does not set the compile-time switch X1 (which turns off any DEBUG statements).
  4. Amend the command file entry for the jobstream to run the program from the PROG group instead of the programmer's development group. Note that the ;LIB=G option is still required in order to reference any standard utility routines within SL.PROG (and IASLINK routines from SL.PUB). It may be preferred to exclude the need to reference SL.PROG by copying all the relevant modules into the USL file before it is prepped.
  5. Add the program to jobstream COMPALL (sample in Appendix A18) in case the entire system needs to be recompiled (eg: following a change to the database).

7.3 Native Mode Development

7.3.1 Creating Test program

See Appendix A16 for an example of the jobstream which is required to compile a batch program within a development group.

This compiles into temporary file $NEWPASS (which becomes $OLDPASS), then creates a program file which can be initiated by a RUN command. Note that the LINK statement includes the "RL=" and "XL=" options to include any routines from library files, therefore no other options are required on the RUN statement.

The file COBCNTL.PUB.SYS is redirected to NMDEV.COBCNTL.SYS, which includes the BOUNDS option on the $CONTROL statement. This causes the compiler to generate extra code to check that any subscript / index / reference-modification is within bounds. This also uses the VALIDATE option to include extra code to check for illegal ASCII digits.

The COBOL statement includes the INFO string $SET X1=ON, which has the following effect:

The RUN command within the menu command file should refer to the program file within the programmer's group, with the ";PARM=1" option if required.


7.3.2 Creating Live program

As soon as a programmer has completed a batch program the following steps should be taken:

  1. Transfer the source file to the SOURCE group and delete it from the programmer's group.
  2. Delete the program file from the programmer's group.
  3. Compile the source (sample jobstream in Appendix A17) to create a file in the NMOBJ group which is then linked into the NMPROG group. Note that this compilation uses a different COBCNTL file (which excludes the BOUNDS and VALIDATE options), and does not set the compile-time switch X1 (which turns off any DEBUG statements).
  4. Amend the command file entry for the jobstream to run the program from group NMPROG instead of the programmer's development group.
  5. Add the program to jobstream NMALL (sample in Appendix A19) in case the entire system needs to be recompiled (eg: following a change to the database).

8. Version Number Checking

8.1 Defining Version Numbers

8.1.1 Format

The format of all version numbers is "VV.CCC.FFF" where:

VVIs a two-digit number, starting at "01" that represents the initial version number.
CCCIs a three-digit number, starting at "000" that represents the number of changes made to the current version.
FFFIs a three-digit number, starting at "000" that represents the number of bug-fixes included in the current version.

The starting version number should therefore be "01.000.000".

The CCC portion should be incremented each time a change is included, and the FFF portion should be incremented each time a bug-fix is included. Thus a version number of "01.005.003" would indicate that the program has undergone 5 changes and 3 fixes.

If a module is changed significantly (ie: redesigned or rewritten) then the VV portion should be incremented and the CCC/FFF portions reset to zero. Thus "01.005.003" would become "02.000.000".


8.1.2 %VERSION Macro

Each application has its own copy of the %VERSION macro contained in file xxxMACRO.LIB (where "xxx" should be changed to the 3-character mnemonic defined for that particular application).

This macro should be modified to contain the current version numbers for the formfile and each application database (up to 4 different databases). If compile-time switches are used (other than X1) then different characters may be defined to indicate that a particular switch was turned ON for a particular compilation.

The %VERSION macro should be included in every module (online and batch) within the system. For online modules this should be the first statement in the PROCEDURE division, for batch programs this statement should be immediately after the %BATCHINIT macro.

The %VERSION macro should be defined in your source code as follows:

%VERSION(progid#,version#,fixno#)
where
progid= the program/module identity (8 characters)
version= the program version number (format "VV.CCC.FFF")
fixno= the Change Request / Fix number (5 characters)

Each Change Request or Fault Report should be submitted on a document which has a unique reference number, eg: "CRnnn" or "FRnnn". When amending any program via QEDIT this identification number should be written into columns 73/80 of all affected source lines by using the command `SET X "CRnnn"', and this same identification number should be defined as the third parameter to the %VERSION macro.

As changes are made to the formfile or database(s) the relevant version numbers within the %VERSION macro should be updated, then the entire system recompiled so that this updated macro is incorporated into every program. The version print routine can then be run in order to confirm that each module has been successfully recompiled and integrated into the live program file.


8.1.3 Formfile Version Number

The application formfile should contain a dummy form called VERSION containing the following fields:

VERSION- 10 characters, the current formfile version number
DATE- 8 characters, the date of the last change
LANG- 8 characters, the language of the file

These fields will be interrogated whenever the online version print routine is run.

The rest of the screen should contain a brief history of amendments, which can be displayed at any time by running program ENTRY.PUB.SYS provided that this form is nominated as the head form on the globals menu.

When this screen has become full a continuation screen can be created (eg: VERSION2) without the need for the three data fields. This should be nominated as the next screen in the definition of VERSION so that it can be displayed when running the ENTRY program. You may either have a separate version number for the formfile, or set it to the corresponding version number of the associated software release - this may make it easier to determine that the formfile is compatible with a particular release of the software.

When the version print routine is run this form will be accessed so that the details can be included in the print file.

The formfile version number must also be amended in file xxxMACRO.LIB by changing the following line:

MOVE "XX.XXX.XXX"  TO VSN-FORM-VERS

8.1.4 Database Verson Number

If your database contains a single control record it would be useful to add a new data item to contain the current version number of that database. This data item should be displayed on the control record maintenance screen, but should only be amended within the jobstream that implements any database changes (eg: by appending the QUERY commands to FIND and REPLACE the version number with the new value).

This version number will be interrogated whenever the online version print routine is run.

If your database does not contain a suitable control record on which to hold this version number then the value will have to be hard-coded in the USERCALL routine.

The database version numbers must also be amended in file xxxMACRO.LIB by changing the following lines:

MOVE "XX.XXX.XXX"  TO VSN-DB-VERS (1)
MOVE "XX.XXX.XXX"  TO VSN-DB-VERS (2)
MOVE "XX.XXX.XXX"  TO VSN-DB-VERS (3)
MOVE "XX.XXX.XXX"  TO VSN-DB-VERS (4)

Note: If there is only one application database then lines 2, 3 and 4 should be commented out.


8.1.5 Online System Version Number

Code must be entered into the following parts of the online system in order for the version checking routine to function correctly:

  1. USEROPEN should contain the statement
    MOVE "XX.XXX.XXX"  TO MENU-VERSION.

    This value will be displayed in every online screen in the second line of the standard heading after the transaction code. It will also be used when running the version print routine.
  2. USERCALL should be amended (in the areas indicated with "*VV*" in columns 8/11) to print the system name, the formfile details, and the details of each database used within that application.
  3. Every online module should contain the %VERSION macro as the very first statement within the procedure division. This will do nothing unless the module is called with the VERSION-CHECKING-ON condition set to TRUE, in which case it will move values into the print line (which is defined within COMMON-LINKAGE) then exit without performing any other processing.

8.2 Printing Version Numbers

8.2.1 Online Modules

There is a transaction within the menu system called VERSION. When selected it will produce a print file (with the name "VERSION") which will show the following:

It will also produce a similar print file for each of the application subsystems defined on that copy of the menu database. This is done by setting the VERSION-CHECKING-ON condition to TRUE before passing control to the application son program. When this condition is set the following sequence of events takes place:

  1. The driver program (MENUSON) will open the VERSION print file.
  2. The USERCALL routine is called to perform the following:
  3. After USERCALL has finished MENUSON will call each of the standard utility routines and print their details.
  4. The print file is closed and control returned to the menu program.

If any module does not contain the %VERSION macro it will proceed as normal (ie: display a screen and wait for user input), therefore the version printing routine should be tested early on in the development of the application.

It should become standard practice to produce a new copy of the VERSION print file before each delivery to the client. This should be checked to ensure that the delivery contains everything that it is supposed to contain. This print file can also be produced by the client to verify that they are running the latest version of the system.


8.2.2 Batch Modules

Each batch program should contain the %VERSION macro immediately after the %BATCHINIT macro. This will cause the program to display its version details on the $STDLIST file before continuing with its normal processing.

If the jcw NORUN is set to a non-zero value the %VERSION macro will stop after displaying its details. It will therefore be possible to construct a jobstream which sets this jcw before running each of the batch programs - this will produce a list of all the version details for the batch programs without doing any batch processing.


9. Programing Hints

9.1 Values in COMMON-LINKAGE

The following values in COMMON-LINKAGE are set by the menu program:

MENU-OPERATORThe logon user identity.
MENU-COMPANYThe logon company identity.
MENU-USER-GROUPThe user group for this user.
MENU-PRINTER-IDThe user's default printer.
MENU-SELECTIONThe current transaction.
MENU-ENTRY-POINTThe entry point for the current transaction.
MENU-HEADING-11st line of the standard screen heading.
MENU-HEADING-22nd line of the standard screen heading.
MENU-TODAYToday's date in CCYYMMDD format.
MENU-TRAN-LEVEL= 1 if current transaction was selected from a menu.
> 1 if selected via the AUTO-SELECT mechanism.
MENU-AUTO-SELECTThis is always blank upon entry, but may be changed to the identity of the next transaction, avoiding the need to process a menu screen to obtain the next selection. Note that this field will not be actioned until the current transaction exits back to the menu program.
MENU-AUTO-RETURNIf the current transaction was selected via the AUTO-SELECT mechanism this will contain the id of the transaction where the selection was made (ie: the previous transaction), otherwise it will be blank.

9.2 Module Functionality

Avoid writing functions that amalgamate add/change/delete/enquire modes otherwise it will be difficult to give a user enquiry-only abilities at a later stage. Each of these modes should be contained within an independent function, thus allowing all security checking to be performed by the menu program, and not within user modules.

This may mean that some code is duplicated, but it does isolate the code for each mode into a separate function which is therefore easier to maintain.

The only reason for allowing a multi-mode function is for something like a simple code file maintenance transaction that will be used rarely, and then only by one or two senior users.

Avoid writing functions which use multiple screens. A single-screen function is easier to maintain, and the OTHER-OPTIONS facility allows the user to flip between screens just as if they are being processed by a single function.


9.3 Storing key values in USER-LINKAGE

As well as holding the communication areas for each of the application files, the USER-LINKAGE area can also be used to store other values that can be passed from one application module to another. If, for example, several modules start by requesting a data item called ACCOUNT-NUMBER so that they can retrieve a record from the database for further processing, then this data item can be declared in the USER-LINKAGE area. It then becomes possible for the user to select a particular value using one transaction, then to progress through other transactions which will use this value without forcing the user to re-enter it each time. This can be achieved using the following code:

 B-10-INIT.

    %SAVINITFORM(B-10#,<form>#).
    MOVE SPACES TO <form buffer>.
    IF LINK-ACCOUNT-NUMBER <code to test for a valid value>
        MOVE LINK-ACCOUNT-NUMBER TO <form>-ACCOUNT-NUMBER
    END-IF.
    %VPUTBUFFER(B-10#,<form>#).

 B-20-ACCEPT.

    %ACCEPTENTER(B-20#).
    ....function key processing

 B-30-VALIDATE.

    PERFORM BA-VALIDATE-SELECTION.
    IF VEDIT-ERRORS
        GO TO B-20-ACCEPT
    END-IF.
    MOVE <form>-ACCOUNT-NUMBER TO LINK-ACCOUNT-NUMBER.

Please note the following:

  1. The linkage area will not contain a valid value until after the first transaction has successfully processed, therefore code is required to check for null/blank values in the data item.
  2. This loads the last selected value into the screen area before it is displayed, allowing the user to either accept the current value or to change it before pressing the ENTER key.
  3. Values are not stored in the linkage area unless they have been successfully validated.

9.4 Skipping the initial ENTER key

It is quite common in a system for a user to start at a particular transaction, select a value, then use the OTHER OPTIONS mechanism to pass control to another transaction which requires the same value. It is nice that the system passes the value from the first to the second transaction without the user having to key it in again, but it becomes rather tedious for the user to keep pressing the ENTER key before the second transaction will accept and process that value. This can be avoided by inserting the following code:

    ..........
    %VPUTBUFFER(B-10#,<form>#).
    IF MENU-AUTO-RETURN <> SPACES             <<--
        IF <form>-ACCOUNT-NUMBER <> SPACES    <<--
            GO TO B-30-VALIDATE               <<--
        END-IF                                <<--
    END-IF                                    <<--

 B-20-ACCEPT.

    %ACCEPTENTER(B-20#).
    ...function key processing

 B-30-VALIDATE.
    ..........

Please note the following:

  1. When selected from a menu screen the program will wait for the user to press the ENTER key.
  2. When selected via the OTHER OPTIONS mechanism, and with a valid value in the linkage area, the program will not wait, but will act as if the ENTER key had been pressed.
  3. The data item MENU-AUTO-RETURN will contain spaces if the transaction is selected directly from a menu screen, but will contain the identity of the previous transaction if selected via the OTHER OPTIONS mechanism. This includes moving from transaction A to transaction B, then returning from B to A.
  4. The previous method of using data item MENU-LEVEL to check for the OTHER OPTIONS mechanism is now redundant as it could only indicate a transaction's level number below the last menu. For example, if moving from a menu to transaction A, then via OTHER OPTIONS to transaction B the level numbers would be set as follows: The problem occurs when returning to transaction A (at level 1) from transaction B (at level 2). The level number is set back to 1 but this does not show whether the previous function was a menu or not, and this fact may be important to the program.

9.5 No Screen processing

It is possible to have a transaction which does not perform any screen processing. This may be for one of two reasons:

  1. Something fails in the initialisation section which prevents the program from continuing (eg: cannot open a file, or some other validation fails).
  2. The program can successfully perform its function without the need for any screen processing.

If, in either case, a message is loaded into the window line before the program exits this message will be carried forward to the next transaction.

However, if the program exits without loading a message into the window line MENUSON will load the standard "PROCESSING - PLEASE WAIT" message with the blink option set. This causes the whole of the current screen (not just the window line) to be redisplayed, but as there is NO current screen it causes a corruption which appears on the next screen. This problem can be avoided by inserting the following line before the EXIT PROGRAM/GOBACK statement in the program which has no screen processing:

SET VIEW-BLINKMSG-IGNORE TO TRUE

9.6 Parameters in Batch programs

If a batch program requires a parameter value before it can continue with its processing it is normal practice to acquire this from the $STDIN file by means of the ACCEPT <dataname> verb.

However, when examining the $STDLIST output produced by the jobstream it is not possible to see what parameters were requested or the values that were provided. This could be inconvenient when trying to track down a possible problem. This information can be made apparent by using the following code:

DISPLAY "Enter parameter value: " NO ADVANCING.
ACCEPT dataname.
DISPLAY dataname.

The DISPLAY statement should always be employed to cater for those circumstances in which the program may be initiated from within an online session instead of a jobstream - it is rather frustrating if the program waits for you to key in some data without telling you what it wants beforehand.


9.7 Saving/Restoring Screen contents

It is defined in the standards that no transaction should pass control to another transaction by a hard-coded CALL statement as this could lead to stack problems and uncontrolled system aborts. Instead the recommended procedure is to use the AUTO-SELECT mechanism to exit the current transaction before passing control to the next transaction, eventually returning to the first transaction.

This removes the possibility of stack overflows as each transaction's working storage is released before the next transaction is loaded. However, when returning to a transaction its processing cannot resume from where it left off, it must always start from the very beginning.

This is not too much of a problem if the transaction's screen contains details from a single entity as the transaction is able to skip the initial user response and reload the screen details from the key value which is held is USER-LINKAGE. This gives the appearance that the transaction was resumed from its previous execution, even though it actually did not.

The problem arises when a screen is constructed from several entities, typically an enquiry screen that shows multiple pages of details. When the user returns to that screen he will want it to resume from the previously selected page, not restart from the first page. This problem can be solved by using the USCREENIN/USCREENOUT procedures.

USCREENOUTWill copy a designated portion of the program's working storage area to a temporary disk file which uses the transaction code as its file name. This should be the last step in the transaction before it exits and passes control to the next transaction via the AUTO-SELECT mechanism.
USCREENINWill transfer the contents of this temporary file back into working storage, thus restoring all previous values, then delete the file. This should be the first step in the transaction before it performs any screen processing. Because the program will be starting from the very beginning it must contain code to recognise that it should resume from a later point, and proceed to that particular point.
warning (1K) As these routines use temporary disk files which have the same names as transaction codes the application modules SHOULD NOT USE ITS OWN TEMPORARY FILES WITH THE SAME NAMES.

9.8 Alternative Jobstream Processing

Jobstreams are defined on the menu database as transactions of type "JS", with the contents of the job being defined on the command file. When that transaction code is selected a standard screen is processed which displays any parameter prompts found inside the jobstream and accepts the user's reply. The replies are then inserted into the job, which is then streamed.

If this standard processing is not sufficient for a particular task then the standard screen which is built into the menu system can be replaced by an application module with a customised screen. The following routines are available to assist in this exercise:

USTREAMFINDCopies the jobstream from the menu command file into a temporary disk file ($OLDPASS), and places any prompts for parameters in the USTREAM-AREA. These prompts can then be loaded into the screen before it is displayed
USTREAMVALIDATEWill validate the printer identity and user input (if validation specifications have been defined in the jobstream)
USTREAMXEQWill replace the parameter prompts in $OLDPASS with the user's replies and stream the job

9.9 Transaction Auto-Selection

Within an online function that uses a VPLUS screen there is a facility that enables the user to select his next transaction without having to exit back to a menu screen. This is done by calling USELECT to display a list of options on the function key labels. The user selects one of the options by pressing the relevant function key, and the associated transaction code is loaded into MENU-AUTO-SELECT. This will be processed as soon as the current transaction exits back to the menu program.

The options to be displayed are defined on the D-OTHER-OPTIONS dataset of the menu database (maintained by transaction MGR12) where the key value is the identity of the transaction code. Up to 18 different options may be defined, each consisting of a LABEL and a CODE. This mechanism enables the list of options to be varied without having to make changes to any program code.

It is usual to set aside a function key at certain points within the program, and to give it the label "OTHER OPTIONS". This allows the user to decide for himself when to invoke the selection mechanism.


10. Integration with CODA-IAS

10.1 Additional Files

Since the majority of our application systems interface with CODA-IAS the following additional files will be needed in the development environment:

IASLIB.LIBA file of additional copy library entries that must be copied into COPYLIB.SOURCE. As this is held in copylib format the whole file can be copied in a single operation without individual modules being loaded one at a time.
IASMACRO.LIBA file of additional COBOL macros that contain the calls to the various IASLINK routines.
IASERRORA utility routine that will append the contents of the IAS communication area to the error diagnostics in the event of an error. For Compatibility Mode systems this is contained within MENUSON.USL and SL.PROG, and for Native Mode systems it is contained within STDRL.NMOBJ, CLOSERL.NMOBJ, STDXL.NMPROG and CLOSEXL.NMPROG.

10.1.1 IASLIB.LIB

This file contains the following modules:

IASLINK1Contains the IAS communication area which must be included in USER-LINKAGE so that it is available to all application modules.
IASLINK2Contains the additional communication areas required by PUTENTRIES, to be included only in the relevant modules.
IASNADINAdditional area used by the NADIN routines.
LEDREPFile layout for the LEDREP data file.
NOMREPFile layout for the NOMREP data file.
SUBKSAMfile layout for the SUBKSAM data file.
IASxxAdditional entries for each of the IAS datasets, only required when accessing the database directly WITHOUT using any standard IASLINK routine. There is one entry for each dataset (where "xx" is the dataset mnemonic) containing the definitions that are required by the COBOL macros.

10.1.2 IASMACRO.LIB

This file contains macros for all of the IASLINK routines, and some additional macros which perform direct access on the IAS database.

NOTE: Even if all accesses are direct (ie: not via any IASLINK routines) the %OPENIAS macro MUST be used to open the database in order to set the relevant values in the IASLINK1 communication area.

After calling any of the IASLINK routines one of the following values will be set in IAS-PARAM-ERROR:

IAS-OKThe call was successful.
IAS-ERRORAn error was found. The error text will be loaded into the window line prefixed by "IASnnnn:" (where "nnnn" is the error number) and the VEDIT-ERRORS condition will be set. The application module must therefore check for this condition and deal with it accordingly.
IAS-FATAL-ERRORA fatal error was encountered. The error text will be loaded into the window line and the system will abort by calling UERROR. This calls USERCLOSE which in turn calls IASERROR to append the IAS details to the error diagnostics.

10.2 USEROPEN

The IAS communication area IASLINK1 must be initialised before any action takes place. As this area must be included within the application's USER-LINKAGE area this will be taken care of by the INITIALIZE USER-LINKAGE statement.

The following statements can either be included within the USEROPEN routine, or included within the initial section of every application module that references the IAS database:

    IF IAS-OPEN-ARRAY = SPACES
        MOVE MENU-COMPANY     TO IAS-COMPANY
        MOVE 1                TO IAS-MODE
        MOVE MENU-OPERATOR    TO IAS-INITIALS
        %OPENIAS(Para#)
        IF IAS-ERROR
            GOBACK
        END-IF
    END-IF.

10.3 USERCLOSE

The following macros should be inserted into the USERCLOSE routine:

%PRINTIASERRORTo include IAS details on the error diagnostics (only if an IAS error has occurred).
%CLOSEIAS(Para#)To close the IAS database (if it is open).

10.4 Run-time Libraries

Even though it is possible to include all of the IASLINK routines in each program at the PREP (or LINK) stage this MUST be avoided as new releases of these routines (either bug fixes or new versions) could not be referenced by the application without the need for a re-PREP. It is for this very reason that CODA provide run-time libraries.

For Compatibility Mode systems the correct SL file from the IAS account must be loaded into the PUB group of the application account. All programs must therefore include the ";LIB=G" or ";LIB=P" option in order to reference this SL file. It will therefore be the client's responsibility to ensure that this SL file is replaced whenever a new release of IAS is loaded.

For Native Mode systems there is no need to copy any files into the application account as native mode libraries can be referenced across different accounts. The RUN statement for each program must contain the option ;XL="IASXL.XLRL.IASVn" to identify the native mode library to be referenced. There will be no need to change this option UNLESS a new library file is created with a different name, or exists in a different group or account.


Appendix A. Sample Jobstreams

A.1 Compile Application Forfile (FORMCOMP.JOB)

!JOB  FORMCOMP,MGR.account,FORMS;OUTCLASS=,1
!TELL MGR.account; FORMFILE COMPILATION IN PROGRESS
!RUN FORMSPEC.PUB.SYS
FILE xxxFORM
FORMS
COMPILE INTO NEWFAST
EXIT
!SHOWJCW
!IF FORMSPECERRORJCW <> 0 THEN
!   TELL MGR.account; FORMFILE HAS ERRORS !!!!!!!!!!!!!!!!
!ELSE
!   TELL MGR.account; FORMFILE COMPILATION COMPLETE
!   PURGE xxxFAST
!   RENAME NEWFAST,xxxFAST
!ENDIF
!EOJ

A.2 Build Application Message Catalog (USERMSG.JOB)

!JOB USERMSG,MGR.account;OUTCLASS=,1
!COMMENT *************************************************************
!COMMENT * Rebuild user message catalog
!COMMENT *************************************************************
!TELL @.account; RECREATING USER MESSAGE CATALOG
!PURGE xxxxCAT.PROG
!IF CIERROR=384 THEN
!  TELL @.account; FILE xxxxCAT.PROG IN USE - CANNOT BE PURGED
!ELSE
!  PURGE TEMPCAT.SOURCE
!  EDITOR
JOINQ STDCAT.LIB
JOINQ xxxxCAT.SOURCE
KEEP TEMPCAT.SOURCE
EXIT
!  FILE INPUT=TEMPCAT.SOURCE
!  FILE CATALOG=xxxxCAT.PROG
!  RUN MAKECAT.PUB.SYS
!  SAVE xxxxCAT.PROG
!  PURGE TEMPCAT.SOURCE
!  TELL @.account; FILE xxxxCAT.PROG CREATED
!ENDIF
!EOJ

A.3 Build Application HELP Catalog (USERHELP.JOB)

!JOB USERHELP,MGR.account;OUTCLASS=,1
!COMMENT *************************************************************
!COMMENT * Rebuild user HELP catalog
!COMMENT *************************************************************
!TELL @.account; RECREATING HELP CATALOG
!PURGE xxxHELP.PROG
!IF CIERROR=384 THEN
!  TELL @.account; FILE xxxHELP.PROG IN USE - CANNOT BE PURGED
!ELSE
!  PURGE TEMPHELP.SOURCE
!  EDITOR
JOINQ xxxHELP.SOURCE
ADD
\ALL
//
KEEP TEMPHELP.SOURCE
EXIT
!  FILE INPUT=TEMPHELP.SOURCE
!  FILE HELPCAT=xxxHELP.PROG
!  RUN MAKECAT.PUB.SYS,HELP
!  TELL @.account; FILE xxxHELP.PROG CREATED
!ENDIF
!PURGE TEMPHELP.SOURCE
!EOJ

A.4 Build Application Program file (USERPREP.JOB)

!JOB USERPREP,MGR.account,USL;OUTCLASS=,1
!COMMENT ***********************************************************
!COMMENT * Create application program file from MENUSON.USL
!COMMENT ***********************************************************
!TELL @.account; PREP OF xxxPROG STARTING
!PURGE xxxPROG.PROG
!PURGE xxxUSL.USL
!SEGMENTER
USL MENUSON.USL
COPYUSL 1500,xxxUSL.USL
USL xxxUSL.USL
PURGERBM SEGMENT,USERCALL
AUXUSL USEROPEN.USL
COPY SEGMENT,USEROPEN
AUXUSL USERCALL.USL
COPY SEGMENT,USERCALL
AUXUSL USERCLOS.USL
COPY SEGMENT,USERCLOSE
AUXUSL new transaction.USL    << repeat these two lines for every >>
COPY SEGMENT,new transaction  << online subprogram                >>
LISTUSL
PREP xxxPROG.PROG;MAXDATA=31000;CAP=IA,PH,DS;PMAP
EXIT
!SAVE xxxPROG.PROG
!PURGE xxxUSL.USL
!TELL @.account PREP OF xxxPROG FINISHED
!EOJ

A.5 Build Segmented Library SL.PROG (SLPROG.JOB)

!JOB SLPROG,MGR.account;OUTCLASS=,1
!COMMENT *************************************************************
!COMMENT * Create a Segmented Library using parts of MENUSON.USL
!COMMENT * Note that the module USERCALL must not be present.
!COMMENT *************************************************************
!TELL @.account; CREATION OF SL.PROG STARTING
!PURGE SL.PROG
!CONTINUE
!SEGMENTER
BUILDSL SL.PROG,500,1
USL MENUSON.USL
ADDSL UVPLUS
ADDSL UERROR
ADDSL IASERROR
ADDSL UEXTRACT
ADDSL USTREAM
ADDSL USTRING
ADDSL USOUNDEX
ADDSL UDBOPEN
ADDSL UGETMENU
USL USEROPEN.USL
ADDSL USEROPEN
USL USERCLOS.USL
ADDSL USERCLOSE
LISTSL
EXIT
!TELL @.account CREATION OF SL.PROG COMPLETED
!EOJ

A.6 Build Segmented Library SL.PUB (SLPUB.JOB)

!JOB SLPUB,MGR.account;OUTCLASS=,1
!COMMENT *************************************************************
!COMMENT * Create a Segmented Library using parts of MENUSON.USL
!COMMENT *************************************************************
!TELL @.account; CREATION OF SL.PUB STARTING
!PURGE SL.PUB
!CONTINUE
!COMMENT  !SEGMENTER          These may be needed if the
!COMMENT  SL SL.PUB.IASV3     application is to use IAS.
!COMMENT  COPYSL 500,SL.PUB   Use instead of the next two
!SEGMENTER                    lines
BUILDSL SL.PUB,500,1
SL SL.PUB
USL MENUSON.USL
ADDSL UVPLUS
ADDSL UERROR
ADDSL IASERROR
ADDSL UEXTRACT
ADDSL USTREAM
ADDSL USTRING
ADDSL USOUNDEX
ADDSL UDBOPEN
ADDSL UGETMENU
USL USEROPEN.USL
ADDSL USEROPEN
USL USERCLOS.USL
ADDSL USERCLOSE
USL module1.USL  << repeat these lines for each >>
ADDSL module1    << online application module   >>
LISTSL
EXIT
!TELL @.account CREATION OF SL.PUB COMPLETED
!EOJ

A.7 Online Compilation (Test)

!JOB XXX123,user.account,group;OUTCLASS=,1
!TELL user.account COMPILE OF XXX123 STARTED
!FILE COPYLIB=COPYLIB.SOURCE
!FILE IASMACRO=IASMACRO.LIB
!FILE xxxMACRO=xxxMACRO.LIB
!FILE LP=XXX123;DEV=LP,1
!FILE STANDARD=STANDARD.LIB
!FILE STDMACRO=STDMACRO.LIB
!FILE COBCNTL.PUB.SYS=CMDEV.COBCNTL.SYS
!COB85 XXX123,$NEWPASS,*LP,"$SET X1=ON"
!IF JCW >= WARN THEN
!   IF JCW > WARN THEN
!      TELL user.account      FATAL ERRORS IN XXX123
!   ELSE
!      TELL user.account      DODGY ERRORS IN XXX123
!   ENDIF
!ELSE
!   TELL user.account         XXX123 COMPILED OK
!BUILD TEMPFILE;TEMP;REC=-80,,F,ASCII;DISC=10000
!RUN SEGDVR.PUB.SYS;STDLIST=TEMPFILE
USL $OLDPASS
LISTUSL
EXIT
!FILE QEDITSCR=TEMPSCR
!RUN QEDIT.PUB.ROBELLE
O;DQ @;SET LANG JOB
T TEMPFILE
D 1/6
D ]-5/
SET RIGHT 3
D "   "
SET RIGHT 80
RENUM
A 1000=@
C 1 "PURGESL SEGMENT," 1/999
C 1 "ADDSL " 1000/
A .1
SL SL.account
USL $OLDPASS
//
A ]
EXIT
//
KEEP SEGIN
EXIT
!RUN SEGDVR.PUB.SYS;STDIN=SEGIN
!PURGE SEGIN
!TELL user.account      XXX123 now in SL.group
!EOJ

A.8 Online Compilation (Live)

!JOB XXX123,user.account,SOURCE;OUTCLASS=,1
!TELL user.account      COMPILE OF XXX123 STARTED
!SQUISHER
U XXX123.SOURCE
EXIT
!FILE COPYLIB=COPYLIB.SOURCE
!FILE IASMACRO=IASMACRO.LIB
!FILE xxxMACRO=xxxMACRO.LIB
!FILE LP=XXX123;DEV=LP,1
!FILE STANDARD=STANDARD.LIB
!FILE STDMACRO=STDMACRO.LIB
!FILE COBCNTL.PUB.SYS=CMPROD.COBCNTL.SYS
!PURGE XXX123.USL
!COB85 XXX123.SOURCE,XXX123.USL,*LP
!IF JCW >= WARN THEN
!   IF JCW > WARN THEN
!      TELL user.account      FATAL ERRORS IN XXX123
!   ELSE
!      TELL user.account      DODGY ERRORS IN XXX123
!   ENDIF
!ELSE
!   TELL user.account         XXX123 COMPILED OK
!SQUISHER
S XXX123.SOURCE
EXIT
!EOJ

A.9 Batch Compilation (Test)

!JOB xxx123,user.account,group;OUTCLASS=,1
!TELL user.account      COMPILE OF xxx123 STARTED
!FILE COPYLIB=COPYLIB.SOURCE
!FILE IASMACRO=IASMACRO.LIB
!FILE xxxMACRO=xxxMACRO.LIB
!FILE LP=xxx123;DEV=LP,1
!FILE STANDARD=STANDARD.LIB
!FILE STDMACRO=STDMACRO.LIB
!FILE COBCNTL.PUB.SYS=CMDEV.COBCNTL.SYS
!COB85 xxx123,$NEWPASS,*LP,"$SET X1=ON"
!IF JCW >= WARN THEN
!   IF JCW > WARN THEN
!      TELL user.account     FATAL ERRORS IN xxx123
!   ELSE
!      TELL user.account     DODGY ERRORS IN xxx123
!   ENDIF
!ELSE
!   TELL user.account        XXX123 COMPILED OK
!PURGE xxx123P
!PREP $OLDPASS,xxx123P;MAXDATA=31000;CAP=IA,BA;PMAP
!SAVE xxx123P
!TELL user.account      xxx123 has been prepped
!EOJ

A.10 Batch Compilation (Live)

!JOB XXX123,user.account,SOURCE;OUTCLASS=,1
!TELL user.account      COMPILE OF XXX123 STARTED
!SQUISHER
U XXX123.SOURCE
EXIT
!FILE COPYLIB=COPYLIB.SOURCE
!FILE IASMACRO=IASMACRO.LIB
!FILE xxxMACRO=xxxMACRO.LIB
!FILE LP=XXX123;DEV=LP,1
!FILE STANDARD=STANDARD.LIB
!FILE STDMACRO=STDMACRO.LIB
!FILE COBCNTL.PUB.SYS=CMPROD.COBCNTL.SYS
!PURGE XXX123.USL
!COB85 XXX123.SOURCE,XXX123.USL,*LP
!IF JCW >= WARN THEN
!   IF JCW > WARN THEN
!      TELL user.account      FATAL ERRORS IN XXX123
!   ELSE
!      TELL user.account      DODGY ERRORS IN XXX123
!   ENDIF
!ELSE
!   TELL user.account         XXX123 COMPILED OK
!PURGE XXX123.PROG
!PREP XXX123.USL,XXX123.PROG;MAXDATA=31232;CAP=IA,BA;PMAP
!SAVE XXX123.PROG
!TELL user.account      XXX123 has been prepped
!SQUISHER
S XXX123.SOURCE
EXIT
!EOJ

A.11 Build Native Mode Message Catalog

!JOB NMCAT,MGR.account;OUTCLASS=,1
!COMMENT *************************************************************
!COMMENT * Rebuild user message catalog (NM version)
!COMMENT *************************************************************
!TELL @.account; RECREATING MESSAGE CATALOG
!PURGE USERCAT.NMPROG
!IF CIERROR=384 THEN
!  TELL @.account; FILE USERCAT.NMPROG IN USE - CANNOT BE PURGED
!ELSE
!  PURGE TEMPCAT.SOURCE
!  EDITOR
JOINQ STDCAT.LIB
JOINQ USERCAT.SOURCE
KEEP TEMPCAT.SOURCE
EXIT
!  RUN GENCAT.PUB.SYS;INFO="3;TEMPCAT.SOURCE;USERCAT.NMPROG;0"
!  PURGE TEMPCAT.SOURCE
!  TELL @.account; FILE USERCAT.NMPROG CREATED
!ENDIF
!EOJ

A.12 Build Native Mode Application Program file

!JOB NMPREP,MGR.account,NMOBJ;OUTCLASS=,1
!COMMENT ***********************************************************
!COMMENT * Recreate Application program file (NM version)
!COMMENT ***********************************************************
!TELL MGR.account   XXXPROG.NMPROG being created
!PURGE XXXPROG.NMPROG
!LINK FROM=MENUSON;TO=XXXPROG.NMPROG;CAP=IA,BA,PH,DS&
!;RL=RL,STDRL;MAP;SHOW
EXIT
!TELL MGR.account   XXXPROG.NMPROG created
!EOJ

A.13 Build Native Mode Library XL.NMPROG

!JOB NMXL,MGR.account,NMOBJ;OUTCLASS=,1!JOB NMXL,MGR.account,NMOBJ;OUTCLASS=,1
!SETVAR HPAUTOCONT,TRUE
!COMMENT ***********************************************************
!COMMENT * Build Application XL files:
!COMMENT * - CLOSERL contains module USERCLOS, IASERROR
!COMMENT * - CLOSEXL contains module USERCLOS, IASERROR, UDUMMY
!COMMENT * - XL      contains everything else
!COMMENT ***********************************************************
!TELL MGR.account; Rebuilding application XL files
!PURGE CLOSERL.NMOBJ
!PURGE CLOSEXL.NMPROG
!LINKEDIT
BUILDRL RL=CLOSERL.NMOBJ;LIMIT=2
COPYRL FROM=RL;TO=CLOSERL.NMOBJ;MODULE=USERCLOS
COPYRL FROM=STDRL;TO=CLOSERL.NMOBJ;MODULE=IASERROR
CLEANRL RL=CLOSERL.NMOBJ;COMPACT
BUILDXL XL=CLOSEXL.NMPROG;LIMIT=3
ADDXL FROM=RL;TO=CLOSEXL.NMPROG;MODULE=USERCLOS
ADDXL FROM=STDRL;TO=CLOSEXL.NMPROG;MODULE=IASERROR
ADDXL FROM=UDUMMY;TO=CLOSEXL.NMPROG
CLEANXL XL=CLOSEXL.NMPROG;COMPACT
EXIT
!PURGE XL.NMPROG
!LINKEDIT
BUILDXL XL=XL.NMPROG;LIMIT=100
XL XL=XL.NMPROG
ADDXL FROM=RL;MODULE=USEROPEN
ADDXL FROM=RL;MODULE=USERCALL
ADDXL FROM=RL;MODULE=USERCLOS
<< put all other application modules here >>
CLEANXL ;COMPACT
LISTXL
EXIT
!TELL MGR.account; Application XL files have been rebuilt
!EOJ

A.14 Online Native Mode Compilation (Test)

!JOB XXX123,user.account,group;OUTCLASS=,1
!SETVAR HPAUTOCONT,TRUE
!TELL user.account      COMPILE OF XXX123 STARTED
!FILE COPYLIB=COPYLIB.SOURCE
!FILE IASMACRO=IASMACRO.LIB
!FILE xxxMACRO=xxxMACRO.LIB
!FILE LP=XXX123;DEV=LP,1
!FILE STANDARD=STANDARD.NMLIB
!FILE STDMACRO=STDMACRO.NMLIB
!FILE COBCNTL.PUB.SYS=NMDEV.COBCNTL.SYS
!COB85XL XXX123,$NEWPASS,*LP;INFO="$SET X1=ON"
!IF JCW >= WARN THEN
!   IF JCW > WARN THEN
!      TELL user.account      FATAL ERRORS IN XXX123
!   ELSE
!      TELL user.account      DODGY ERRORS IN XXX123
!   ENDIF
!ELSE
!   TELL user.account         XXX123 COMPILED OK
!LISTF XL,2
!IF (CIERROR = 907) THEN
!   TELL user.account      Building XL.group
!   LINKEDIT
BUILDXL XL=XL;LIMIT=10
EXIT
!ENDIF
!LINKEDIT
XL XL=XL
PURGEXL MODULE=XXX123
ADDXL FROM=$OLDPASS
CLEANXL ;COMPACT
LISTXL
EXIT
!TELL user.account      XXX123 now in XL.group
!EOJ

A.15 Online Native Mode Compilation (Live)

!JOB XXX123,user.account,SOURCE;OUTCLASS=,1
!SETVAR HPAUTOCONT,TRUE
!TELL user.account      COMPILE OF XXX123 STARTED
!SQUISHER
U XXX123.SOURCE
EXIT
!FILE COPYLIB=COPYLIB.SOURCE
!FILE IASMACRO=IASMACRO.LIB
!FILE xxxMACRO=xxxMACRO.LIB
!FILE LP=XXX123;DEV=LP,1
!FILE STANDARD=STANDARD.NMLIB
!FILE STDMACRO=STDMACRO.NMLIB
!FILE COBCNTL.PUB.SYS=NMPROD.COBCNTL.SYS
!COB85XL XXX123.SOURCE,RL.NMOBJ,*LP
!IF JCW >= WARN THEN
!   IF JCW > WARN THEN
!      TELL user.account      FATAL ERRORS IN XXX123
!   ELSE
!      TELL user.account      DODGY ERRORS IN XXX123
!   ENDIF
!ELSE
!   TELL user.account         XXX123 COMPILED OK
!LINKEDIT
CLEANRL RL=RL.NMOBJ
EXIT
!SQUISHER
S XXX123.SOURCE
EXIT
!EOJ

A.16 Batch Native Mode Compilation (Test)

!JOB XXX123,user.account,group;OUTCLASS=,1
!SETVAR HPAUTOCONT,TRUE
!TELL user.account      COMPILE OF XXX123 STARTED
!FILE COPYLIB=COPYLIB.SOURCE
!FILE IASMACRO=IASMACRO.LIB
!FILE xxxMACRO=xxxMACRO.LIB
!FILE LP=XXX123;DEV=LP,1
!FILE STANDARD=STANDARD.NMLIB
!FILE STDMACRO=STDMACRO.NMLIB
!FILE COBCNTL.PUB.SYS=NMDEV.COBCNTL.SYS
!COB85XL XXX123,$NEWPASS,*LP;INFO="$SET X1=ON"
!IF JCW >= WARN THEN
!   IF JCW > WARN THEN
!      TELL user.account      FATAL ERRORS IN XXX123
!   ELSE
!      TELL user.account      DODGY ERRORS IN XXX123
!   ENDIF
!ELSE
!   TELL user.account         XXX123 COMPILED OK
!PURGE XXX123P
!LINK FROM=$OLDPASS;TO=XXX123P&
!;RL=RL.NMOBJ,STDRL.NMOBJ,CLOSERL.NMOBJ&
!;CAP=IA,BA;MAP;SHOW
!TELL user.account      XXX123 has been prepped
!EOJ

A.17 Batch Native Mode Compilation (Live)

!JOB XXX123,user.account,SOURCE;OUTCLASS=,1
!SETVAR HPAUTOCONT,TRUE
!TELL user.account      COMPILE OF XXX123 STARTED
!SQUISHER
U XXX123.SOURCE
EXIT
!FILE COPYLIB=COPYLIB.SOURCE
!FILE IASMACRO=IASMACRO.LIB
!FILE xxxMACRO=xxxMACRO.LIB
!FILE LP=XXX123;DEV=LP,1
!FILE STANDARD=STANDARD.NMLIB
!FILE STDMACRO=STDMACRO.NMLIB
!FILE COBCNTL.PUB.SYS=NMPROD.COBCNTL.SYS
!PURGE XXX123.NMOBJ
!COB85XL XXX123.SOURCE,XXX123.NMOBJ,*LP
!IF JCW >= WARN THEN
!   IF JCW > WARN THEN
!      TELL user.account      FATAL ERRORS IN XXX123
!   ELSE
!      TELL user.account      DODGY ERRORS IN XXX123
!   ENDIF
!ELSE
!   TELL user.account         XXX123 COMPILED OK
!PURGE XXX123.NMPROG
!LINK FROM=XXX123.NMOBJ;TO=XXX123.NMPROG&
!;RL=RL.NMOBJ,STDRL.NMOBJ,CLOSERL.NMOBJ&
!;CAP=IA,BA;MAP;SHOW
!TELL user.account      XXX123 has been prepped
!SQUISHER
S XXX123.SOURCE
EXIT
!EOJ

A.18 Compile All (Compatability Mode)

!JOB COMPALL,MGR.account,SOURCE;OUTCLASS=LP,2
!RUN SQUISHER.UTIL.SYS
U @.SOURCE
EXIT
!FILE STANDARD=STANDARD.LIB
!FILE STDMACRO=STDMACRO.LIB
!FILE COPYLIB=COPYLIB.SOURCE
!FILE xxxMACRO=xxxMACRO.LIB
!FILE IASMACRO=IASMACRO.LIB
!FILE COBCNTL.PUB.SYS=CMPROD.COBCNTL.SYS
!TELL @.account;
!TELL @.account; STARTING BATCH  COMPILATIONS
!TELL @.account;
!PURGE prog1.USL
!COB85 prog1,prog1.USL,$NULL
!PURGE prog1.PROG
!PREP  prog1.USL,prog1.PROG;MAXDATA=31232;CAP=IA,BA,PMAP
!SAVE  prog1.PROG
!TELL @.account;
!TELL @.account; STARTING ONLINE COMPILATIONS
!TELL @.account;
!PURGE USEROPEN.USL
!COB85 USEROPEN,USEROPEN.USL,$NULL
!PURGE USERCALL.USL
!COB85 USERCALL,USERCALL.USL,$NULL
!PURGE USERCLOS.USL
!COB85 USERCLOS,USERCLOS.USL,$NULL
!PURGE module1.USL
!COB85 module1,module1.USL,$NULL
!PURGE module2.USL
!COB85 module2,module2.USL,$NULL
<< put other modules here >>
!TELL @.account; ALL DONE!
!EOJ

A.19 Compile All (Native Mode)

!JOB NMCOMP,MGR.account,SOURCE;OUTCLASS=,2
!SETVAR HPAUTOCONT,TRUE
!FILE STANDARD=STANDARD.NMLIB
!FILE STDMACRO=STDMACRO.NMLIB
!FILE COPYLIB=COPYLIB.SOURCE
!FILE XXXMACRO=XXXMACRO.LIB
!FILE IASMACRO=IASMACRO.LIB
!FILE COBCNTL.PUB.SYS=NMPROD.COBCNTL.SYS
!TELL MGR.account
!TELL MGR.account Starting native mode compiles ...
!TELL MGR.account
!COMMENT ***********************************************************
!COMMENT * All programs go into <progname>.NMOBJ
!COMMENT ***********************************************************
!PURGE program.NMOBJ
!COB85XL program,program.NMOBJ,$NULL
!PURGE program.NMPROG
!LINK FROM=program.NMOBJ;TO=program.NMPROG&
!;RL=RL.NMOBJ,STDRL.NMOBJ,CLOSERL.NMOBJ&
!;CAP=IA,BA;MAP;SHOW
!COMMENT ***********************************************************
!COMMENT * All subprograms go into RL.NMOBJ
!COMMENT ***********************************************************
!PURGE RL.NMOBJ
!LINKEDIT
BUILDRL RL=RL.NMOBJ;LIMIT=100
EXIT
!COB85XL USEROPEN,RL.NMOBJ,$NULL
!COB85XL USERCALL,RL.NMOBJ,$NULL
!COB85XL USERCLOS,RL.NMOBJ,$NULL
!COB85XL module1,RL.NMOBJ,$NULL
!COB85XL module2,RL.NMOBJ,$NULL
!COB85XL module3,RL.NMOBJ,$NULL
<< put other modules here >>
!TELL MGR.account
!TELL MGR.account Compilations done - listing RL file
!TELL MGR.account
!LINKEDIT
RL RL=RL.NMOBJ
CLEANRL ;COMPACT
LISTRL
EXIT
!EOJ

Appendix B. Sample Source Code

B.1 Sample Online Subprogram

$CONTROL DYNAMIC

$INCLUDE STDMACRO
$INCLUDE USERMACR

 %ID(MENU17#,Tony Marston#,March 1989#)
******************************************************************
* REMARKS:
*
* This subprogram is called to maintain the M-USER-GROUP dataset.
* It may be used to add, modify or enquire on group details, but
* there is no delete facility.
*
* Note: all user groups are prefixed with the company number.
*
******************************************************************
* DATABASE - PROMEN
*
* DATASETS:
*
* M-USER-GROUP     - user group details
*
******************************************************************
* VPLUS FORMS:
*
* MS01		- selection
* MS01A		- addition
* MS01B		- modification
* MS01E		- enquiry
*
******************************************************************
* AMENDMENT HISTORY:
*
* 1) Added %VERSION macro for version number checking.
*    Tony Marston - 22/11/89 - version 01.001.000
*
******************************************************************

 %ED.

 DATA DIVISION.
 WORKING-STORAGE SECTION.

 01  MS01-BUFFER.
     03  MS01-STD-HEAD-1          PIC X(78).
     03  MS01-STD-HEAD-1          PIC X(78).
     03  MS01-DATA.
         05  MS01-USER-GROUP      PIC X(02).
         05  MS01-GROUP-NAME      PIC X(40).
         05  MS01-TIMEOUT         PIC ZZZ9.
         05  MS01-ACCESS-ALLOWED  PIC X(01).
         05  MS01-IN-USE          PIC ZZZ9.

 COPY PROMENMS IN STANDARD.

 LINKAGE SECTION.

 COPY COMAREA IN STANDARD NOLIST.

 COPY USERLINK IN STANDARD.

 PROCEDURE DIVISION USING COMMON-LINKAGE
                          USER-LINKAGE.

 A-MENU17-CONTROL SECTION.
******************************************************************
*
* This section is the main control section
*
******************************************************************
 A-10-START.

    %VERSION(MENU17#,01.001.000#,     #).

    PERFORM B-SELECT
    UNTIL F8
    OR    MENU-AUTO-SELECT NOT = SPACES.

 A-EXIT.
    GOBACK.


 B-SELECT SECTION.
******************************************************************
* Ask user to input a USER-GROUP - if it exists go into enquire
* mode, otherwise go into input mode.
*****************************************************************
 B-10-INIT.

    %SAVINITFORM(B-10#,MS01#).

 B-20-SELECT.

    %ACCEPTENTER(B-20#).

    IF F8
        GO TO B-EXIT.

    %VGETBUFFER(B-20#,MS01-BUFFER#).

    MOVE MENU-COMPANY       TO COMPANY-ID OF MS-COMPANY-GROUP.
    MOVE MS01-USER-GROUP    TO USER-GROUP OF MS-COMPANY-GROUP.
    %DBGET7(B-20#,MENU#,M-USER-GROUP#,MS-COMPANY-GROUP#).

    IF IMAGE-OK
        PERFORM E-ENQUIRE
    ELSE
        PERFORM C-CREATE
    END-IF.

 B-EXIT.
    EXIT.


 C-CREATE SECTION.
*****************************************************************
* This section adds new records to the M-USER-GROUP dataset.
*****************************************************************
 C-10-INIT.

    %SAVINITFORM(C-10#,MS01A#).

    **** MOVE "RESELECT" TO VIEW-LABEL(5).
    MOVE "015240"        TO VIEW-LABEL(5).

 C-20-ACCEPT.

    %ACCEPTENTER(C-20#).

    IF F0
        %VGETBUFFER(C-20#,MS01-BUFFER#)
        PERFORM CA-CREATE-RECORD
        IF IMAGE-LOCK-FAILURE
            GO TO C-20-ACCEPT
        END-IF
    END-IF.

 C-EXIT.
    EXIT.


 CA-CREATE-RECORD SECTION.
******************************************************************
* Create a new record on dataset M-USER-GROUP.
******************************************************************
 CA-10-LOCK.

    %SETLOCK(1#,M-USER-GROUP#,@#,EQ#,SPACE#).

    %DBLOCK(CA-10#,MENU#).
    IF IMAGE-LOCK-FAILURE
        GO TO CA-EXIT.

 CA-20-PUT.

    %DBBEGIN(CA-20#,MENU#).

    MOVE MENU-COMPANY           TO COMPANY-ID OF MS-COMPANY-GROUP
    MOVE MS01-USER-GROUP        TO USER-GROUP OF MS-COMPANY-GROUP
    MOVE MS01-GROUP-NAME        TO MS-GROUP-NAME.
    MOVE MS01-TIMEOUT           TO MS-TIMEOUT.
    MOVE MS01-ACCESS-ALLOWED    TO MS-ACCESS-ALLOWED.
    MOVE ZERO                   TO MS-IN-USE.

    %DBPUT(CA-20#,MENU#,M-USER-GROUP#).

    %DBEND(CA-20#,MENU#).

    %DBUNLOCK(CA-20#,MENU#).

 CA-EXIT.
    EXIT.


 E-ENQUIRE SECTION.
*****************************************************************
* Display details from the selected record.
* The user may elect to modify this record with function key 4.
*****************************************************************
 E-10-INIT.

    %SAVINITFORM(E-10#,MS01E#).

    PERFORM EA-LOAD-DETAILS.

    **** MOVE " MODIFY " TO VIEW-LABEL(4).
    MOVE "015170"        TO VIEW-LABEL(4).
    **** MOVE "RESELECT" TO VIEW-LABEL(5).
    MOVE "015240"        TO VIEW-LABEL(5).

 E-20-ACCEPT.

%ACCEPTFUNCTION(E-20#).

    EVALUATE TRUE
        WHEN F4       PERFORM M-MODIFY
        WHEN OTHER    GO TO E-EXIT
    END-EVALUATE.

 E-EXIT.
    EXIT.


 EA-LOAD-DETAILS SECTION.
******************************************************************
* Load details from M-USER-GROUP into the screen buffer.
******************************************************************
 EA-10.

    MOVE USER-GROUP OF MS-COMPANY-GROUP	TO MS01-USER-GROUP.
    MOVE MS-GROUP-NAME                  TO MS01-GROUP-NAME.
    MOVE MS-TIMEOUT                     TO MS01-TIMEOUT.
    MOVE MS-ACCESS-ALLOWED              TO MS01-ACCESS-ALLOWED.
    MOVE MS-IN-USE                      TO MS01-IN-USE.

    %VPUTBUFFER(EA-10#,MS01-BUFFER#).

 EA-EXIT.
    EXIT.


 M-MODIFY SECTION.
******************************************************************
* This section modifies an existing record in M-USER-GROUP.
******************************************************************
 M-10-INIT.

    %SAVINITFORM(M-10#,MS01B#).

    ***** MOVE "RESELECT" TO VIEW-LABEL(5).
    MOVE "015240"         TO VIEW-LABEL(5).

 M-20-ACCEPT.

    %ACCEPTENTER(M-20#).

    IF F0
        %VGETBUFFER(M-20#,MS01-BUFFER#)
        PERFORM MB-UPDATE-RECORD
        IF IMAGE-LOCK-FAILURE
            GO TO M-20-ACCEPT
        END-IF
    END-IF.

 M-EXIT.
    EXIT.


 MB-UPDATE-RECORD SECTION.
*****************************************************************
* This section updates the M-USER-GROUP dataset
*****************************************************************
 MB-10-LOCK.

    %SETLOCK(1#,M-USER-GROUP#,COMPANY-GROUP#,EQ#
               ,MS-COMPANY-GROUP#).

    %DBLOCK(MB-10#,MENU#).
    IF IMAGE-LOCK-FAILURE
        GO TO MB-EXIT.

 MB-20-UPDATE.

    %DBBEGIN(MB-20#,MENU#).

    %DBGET7(MB-20#,MENU#,M-USER-GROUP#,MS-COMPANY-GROUP#).

    MOVE MS01-GROUP-NAME        TO MS-GROUP-NAME.
    MOVE MS01-TIMEOUT           TO MS-TIMEOUT.
    MOVE MS01-ACCESS-ALLOWED    TO MS-ACCESS-ALLOWED.

    %DBUPDATE(MB-20#,MENU#,M-USER-GROUP#).

    %DBEND(MB-20#,MENU#).

    %DBUNLOCK(MB-20#,MENU#).

 MB-EXIT.
    EXIT.

B.2 Sample Batch Program

$CONTROL SOURCE

$INCLUDE STDMACRO
$INCLUDE IASMACRO
$INCLUDE INVMACRO

 %ID(INV500#,Anne Onnymous#, 26th May 1989#).
******************************************************************
* BATCH STATUS CHANGE PROGRAM.
*
* This program will read an input file of document numbers (same
* format as INVRQST file) and update the status on the invoice
* header to the value specified as the PARM number on the RUN
* command (e.g: RUN INV500;PARM=10).

* Any value between 1 and 29 can be specified except 20, which
* can only be set by the IAS posting routine. In all cases the
* new status value must be greater than the current value.
*
******************************************************************
* DATABASES:                                                     *
*                                                                *
*        INVDB           -   Invoice Database                    *
*                                                                *
*            INV-HEADER  -   Invoice Header    R/W               *
*                                                                *
******************************************************************
* FILES:                                                         *
*                                                                *
*    Input      -  INPUT     -  Invoice Numbers                  *
*                                                                *
*    Output     -  VALID     -  Successful Invoices              *
*               -  INVALID   -  Unsuccessful Invoices            *
*                                                                *
******************************************************************

 %ED.

 INPUT-OUTPUT SECTION.
 FILE-CONTROL.

    SELECT INFILE  ASSIGN TO "INPUT".
    SELECT VALID   ASSIGN TO "VALID".
    SELECT INVALD  ASSIGN TO "INVALID".

 DATA DIVISION.

 FILE SECTION.

*-----------------------------------------------------------------
* Invoice Numbers to be processed
*-----------------------------------------------------------------

 FD INFILE.
 01  INFILE-DOC-REF.
     03  INFILE-COMPANY-NO   PIC X(2).
     03  INFILE-DOCNO        PIC X(6).
     03  INFILE-DOCTYPE      PIC X(2).

*-----------------------------------------------------------------
* Invoices successfully processed
*-----------------------------------------------------------------

 FD VALID.
 01  VALID-DOC-REF.
     03  VALID-COMPANY-NO   PIC X(2).
     03  VALID-DOCNO        PIC X(6).
     03  VALID-DOCTYPE      PIC X(2).

*-----------------------------------------------------------------
* Invoices not successfully processed
*-----------------------------------------------------------------

 FD INVALD.
 01  INVALD-DOC-REF.
     03  INVALD-COMPANY-NO   PIC X(2).
     03  INVALD-DOCNO        PIC X(6).
     03  INVALD-DOCTYPE      PIC X(2).


 WORKING-STORAGE SECTION.

 01  WS-VALID-COUNT              PIC 9(4) VALUE ZERO.
 01  WS-INVALD-COUNT             PIC 9(4) VALUE ZERO.
 01  WS-INFILE-COUNT             PIC 9(4) VALUE ZERO.

 01  W01-PARM                    PIC S9(4) COMP VALUE ZERO.

 01  W01-PARM-STRING             PIC 99.
 01  FILLER REDEFINES W01-PARM-STRING.
     03  W01-PARM-A              PIC X.
     03  W01-PARM-B              PIC X.

 01  W01-CURR-STATUS             PIC S9(4) COMP.

******************************************************************
*                                                                *
*    Copy Library Entries                                        *
*                                                                *
*    INVDBVIH-   INVDB.INV-HEADER          Invoice header        *
*                                                                *
*    USERLINK-   Items used within INVOICE system.               *
*    COMAREA -   Common Linkage Variables                        *
*                                                                *
******************************************************************

 COPY    INVDBVIH    IN COPYLIB.
 COPY    USERLINK    IN COPYLIB.
 COPY    COMAREA     IN STANDARD.


PROCEDURE DIVISION.

 %DEBUG(INV500#)

 A-CONTROL SECTION.
******************************************************************
*                                                                *
* CONTROL SECTION                                                *
*                                                                *
******************************************************************
 A-10-INIT.

     %BATCHINIT(INV500#,Prolog Batch Status Change#).

     %VERSION(INV500#,01.000.000#,     #).

     PERFORM B-OPEN-FILES.
     IF VEDIT-ERRORS
         GO TO A-EXIT
     END-IF.

 A-20-PROCESS.

     PERFORM C-PROCESS-RECORDS
         UNTIL INFILE-DOC-REF = HIGH-VALUES.

 A-30-CLOSE.

     PERFORM D-CLOSE.

 A-EXIT.
     STOP RUN.


 B-OPEN-FILES SECTION.
******************************************************************
* Get PARM value, Open all the files, Lock INV-HEADER
******************************************************************
 B-05-GETINFO-PARM.

     CALL INTRINSIC "GETINFO" USING \\, \\, W01-PARM.

     IF (W01-PARM < 1)
     OR (W01-PARM = 20)
     OR (W01-PARM > 29)
        DISPLAY "PARM value on RUN statement not within range",
                " (1-19, 21-29)"
        MOVE 1 TO VIEW-NUMERRS
        GO TO B-EXIT.

     MOVE W01-PARM               TO W01-PARM-STRING.

D    DISPLAY W01-PARM-STRING.

 B-10-INVDB.

     PERFORM BA-OPEN-INVDB.

 B-20-OPEN-FLAT-FILES.

     OPEN INPUT  INFILE.
     OPEN OUTPUT VALID.
     OPEN OUTPUT INVALD.

 B-30-LOCK.

     %SETLOCK(1#,INV-HEADER#,@#,EQ#,SPACES#).
     %DBLOCK(B-30#,INV#).
     IF IMAGE-LOCK-FAILURE
        GO TO B-30-LOCK.

 B-EXIT.
     EXIT.


 BA-OPEN-INVDB SECTION.
******************************************************************
* This opens the invoice database.                               *
******************************************************************
 BA-10-INIT.

     MOVE "  INVDB.DATA"         TO INV-BASE-NAME.
     MOVE "WRITER"               TO INV-PASSWORD.
     MOVE "N"                    TO INV-BASE-FLAG.

     %DBOPEN(BA-10#,INV#).

 BA-EXIT.
     EXIT.


 C-PROCESS-RECORDS SECTION.
******************************************************************
* This section processes next invoice number. If it passes the   *
* validation then update the status on INV-HEADER to the PARM    *
* value.                                                         *
******************************************************************
 C-05-INIT.

     MOVE 0 TO VIEW-NUMERRS.
     MOVE 0 TO IMAGE-COND.

 C-10-READ.

     READ INFILE
         AT END
             MOVE HIGH-VALUES TO INFILE-DOC-REF
             GO TO C-EXIT.

     ADD 1 TO WS-INFILE-COUNT.

 C-20-GET-INV-HEADER.

     MOVE INFILE-DOC-REF TO VIH-DOC-REF.

     PERFORM ZA-READ-INV-HEADER.

     IF IMAGE-NO-ENTRY OR IMAGE-END-OF-CHAIN
         DISPLAY INFILE-DOC-REF, " - Invoice does not exist"
         PERFORM ZC-WRITE-TO-INVALD
         GO TO C-EXIT.

 C-30-VALIDATE.
     PERFORM CA-VALIDATE-PARM.
     IF VEDIT-ERRORS
        GO TO C-EXIT.

 C-40-UPD-INV-HEADER.

     MOVE W01-PARM-STRING TO VIH-INV-STATUS.
     MOVE MENU-TODAY      TO VIH-INV-STATUS-DATE.

     PERFORM ZB-UPDATE-INV-HEADER.

     DISPLAY INFILE-DOC-REF, " - Invoice Header updated"
     PERFORM ZD-WRITE-TO-VALID.

 C-EXIT.
     EXIT.


 CA-VALIDATE-PARM SECTION.
******************************************************************
* This section validates the value specified as the PARM
* number on the RUN statement.
******************************************************************
 CA-10-PARM.

     %UNUMBER1(VIH-INV-STATUS#,W01-CURR-STATUS#).

     IF (W01-PARM NOT > W01-CURR-STATUS)
        DISPLAY INFILE-DOC-REF,
        " - PARM value must be greater than the current value"
        PERFORM ZC-WRITE-TO-INVALD
        GO TO CA-EXIT.

     IF (W01-CURR-STATUS < 20)
         IF (W01-PARM NOT < 20)
             DISPLAY INFILE-DOC-REF,
     " - PARM value must be < 20 as curr value is in range 1-19"
             PERFORM ZC-WRITE-TO-INVALD
             GO TO CA-EXIT.

 CA-EXIT.
     EXIT.


 D-CLOSE SECTION.
******************************************************************
*    This section closes the files and checks control totals.
******************************************************************
 D-10-INVDB.

     %DBUNLOCK(D-10#,INV#).

     %DBCLOSE(INV#).
 D-20-FLAT-FILES.

     CLOSE INFILE.
     CLOSE VALID.
     CLOSE INVALD.

 D-30-CONTROL-TOTALS.

     DISPLAY    "******************************************".
     DISPLAY    "Invoice No.s read    = ", WS-INFILE-COUNT.
     DISPLAY    "Invoice No.s invalid = ", WS-INVALD-COUNT.
     DISPLAY    "Invoice No.s valid   = ", WS-VALID-COUNT.
     DISPLAY    "******************************************".

     IF WS-INFILE-COUNT NOT = (WS-VALID-COUNT + WS-INVALD-COUNT)
        DISPLAY "******************************************"
        DISPLAY "       ERROR - CONTROL TOTALS MISMATCH    "
        DISPLAY "******************************************"
        %PUTJCW(INV500JCW#,10#)
     ELSE
        DISPLAY "******************************************"
        DISPLAY "           CONTROL TOTALS MATCH           "
        DISPLAY "******************************************".

 D-EXIT.
     EXIT.


 ZA-READ-INV-HEADER SECTION.
******************************************************************
* Read INV-HEADER
******************************************************************
 ZA-10.

     %DBFETCH(ZA-10#,INV#,INV-HEADER#,DOC-REF#,VIH-DOC-REF#).

 ZA-EXIT.
     EXIT.

 ZB-UPDATE-INV-HEADER SECTION.
******************************************************************
* Update INV-HEADER
******************************************************************
 ZB-10.

     %DBUPDATE(ZB-10#,INV#,INV-HEADER#).

 ZB-EXIT.
     EXIT.

 ZC-WRITE-TO-INVALD SECTION.
******************************************************************
*    Write invoice number to INVALD file.
******************************************************************
 ZC-10-WRITE.

     WRITE INVALD-DOC-REF FROM INFILE-DOC-REF.
     ADD 1  TO WS-INVALD-COUNT.
     MOVE 1 TO VIEW-NUMERRS.

 ZC-EXIT.
     EXIT.

 ZD-WRITE-TO-VALID SECTION.
******************************************************************
*    Write invoice number to VALID file.
******************************************************************
 ZD-10-WRITE.

     WRITE VALID-DOC-REF FROM INFILE-DOC-REF.
     ADD 1 TO WS-VALID-COUNT.

 ZD-EXIT.
     EXIT.

Appendix C. Variations in COBCNTL.PUB.SYS

The COBOL compiler always looks for default $CONTROL statements from a file called COBCNTL.PUB.SYS. We have created some variations which should be used in the appropriate compilation job by means of a file equate:-

C.1 Compatability Mode (Test) - CMDEV.COBCNTL.SYS

*
$CONTROL LIST,SOURCE,NOCODE,NOCROSSREF,ERRORS=100,NOVERBS,WARN
$CONTROL LINES=60,NOMAP,MIXED,QUOTE=",NOSTDWARN,SYNC16,BOUNDS
*

C.2 Compatability Mode (Live) - CMPROD.COBCNTL.SYS

*
$CONTROL LIST,SOURCE,NOCODE,NOCROSSREF,ERRORS=100,NOVERBS,WARN
$CONTROL LINES=60,NOMAP,MIXED,QUOTE=",NOSTDWARN,SYNC16
*

C.3 Native Mode (Test) - NMDEV.COBCNTL.SYS

*
$CONTROL LIST,SOURCE,NOCODE,NOCROSSREF,ERRORS=100,NOVERBS,WARN
$CONTROL LINES=60,NOMAP,MIXED,QUOTE=",NOSTDWARN,SYNC32,INDEX32
$CONTROL VALIDATE,BOUNDS,OPTIMIZE=0
$CONTROL OPTFEATURES=CALLALIGNED LINKALIGNED
*

C.4 Native Mode (Live) - NMPROD.COBCNTL.SYS

*
$CONTROL LIST,SOURCE,NOCODE,NOCROSSREF,ERRORS=100,NOVERBS,WARN
$CONTROL LINES=60,NOMAP,MIXED,QUOTE=",NOSTDWARN,SYNC32,INDEX32
$CONTROL NOVALIDATE,OPTIMIZE=1
$CONTROL OPTFEATURES=CALLALIGNED LINKALIGNED
*

- END -

counter
